MANUAL HEATING AND AIR CONDITIONING SYSTEM WITH REAR
PASSENGER COMPARTMENT CLIMATE CONTROL SYSTEM
(IF EQUIPPED)

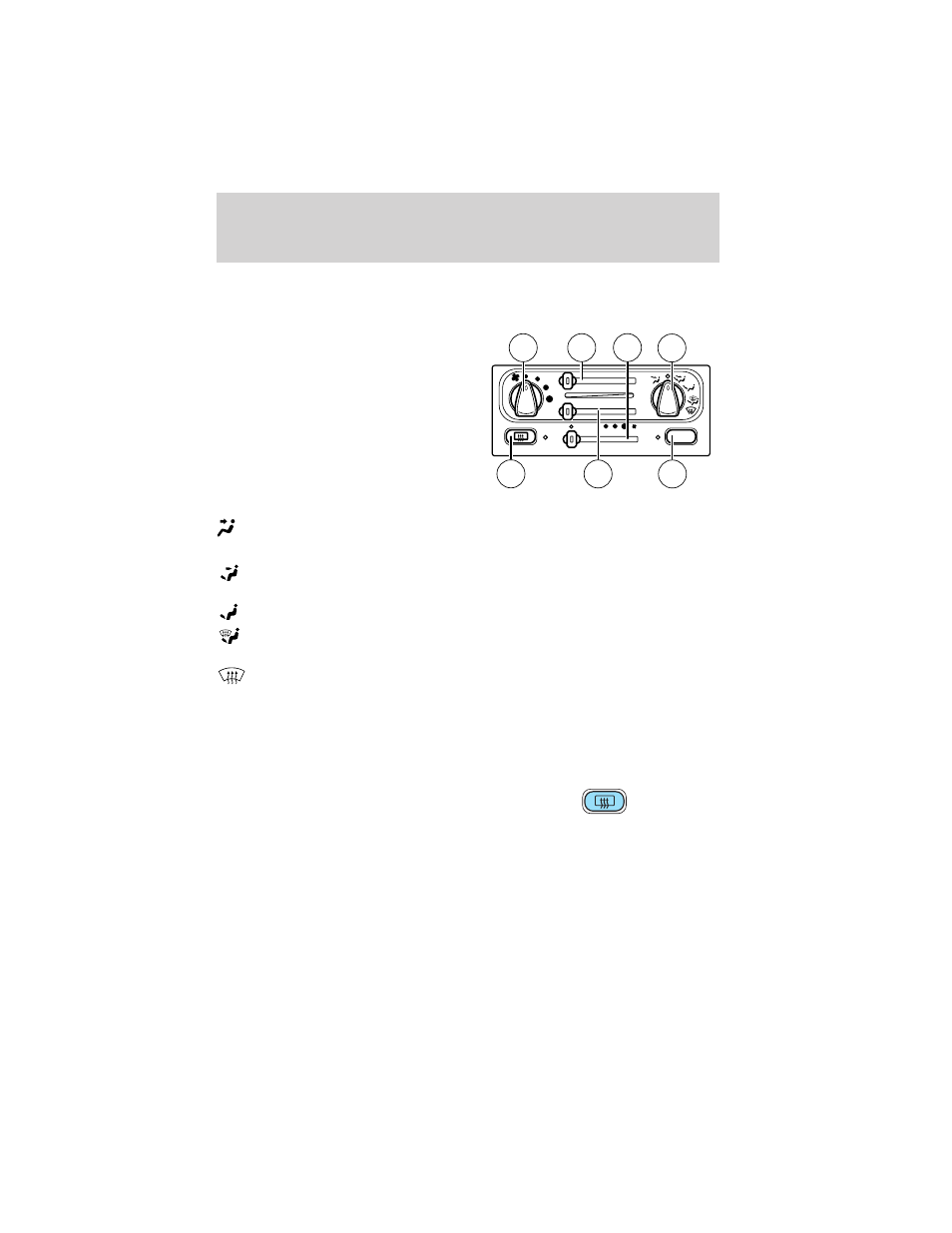

1. Air flow selections: Controls
the direction of the airflow in the
vehicle. See the following for a brief
description on each control.
MAX A/C: Uses recirculated air
through the instrument panel
registers to cool the vehicle. This
mode is more noisy than A/C, but is
more economical and efficient. May
reduce undesirable odors from
entering the vehicle.
: Distributes outside air through the instrument panel vents.
O (OFF): Outside air is shut out and the fan will not operate.
: Distributes outside air through the instrument panel vents and the
floor vents.
: Distributes outside air through the floor vents.
: Distributes outside air through the windshield defroster vents and
floor vents.
: Distributes outside air through the windshield defroster vents.
2. A/C: Uses outside air to cool the vehicle. Air flows from the
instrument panel register vents only.
3. Rear temperature selection: Controls the temperature of the
airflow in the rear of the vehicle when the unit is operating and the rear
occupants do not have control.
4. Rear defrost control: Clears the
rear window of thin ice and fog
when the engine is running.
5. Fan speed adjustment: Controls the volume of air circulated in the
vehicle.
6. Front temperature selection: Controls the temperature of the
airflow in the front of the passenger compartment.
7. Rear passenger compartment: Turns on the auxilary climate control
system, adjust rear blower speed and in “REAR CTL” setting allows
control to the rear occupants.
A/C
FRONT
REAR
OFF
MAX
A/C
REAR CTL
2 3 4
1 5 6 7
Climate Controls
