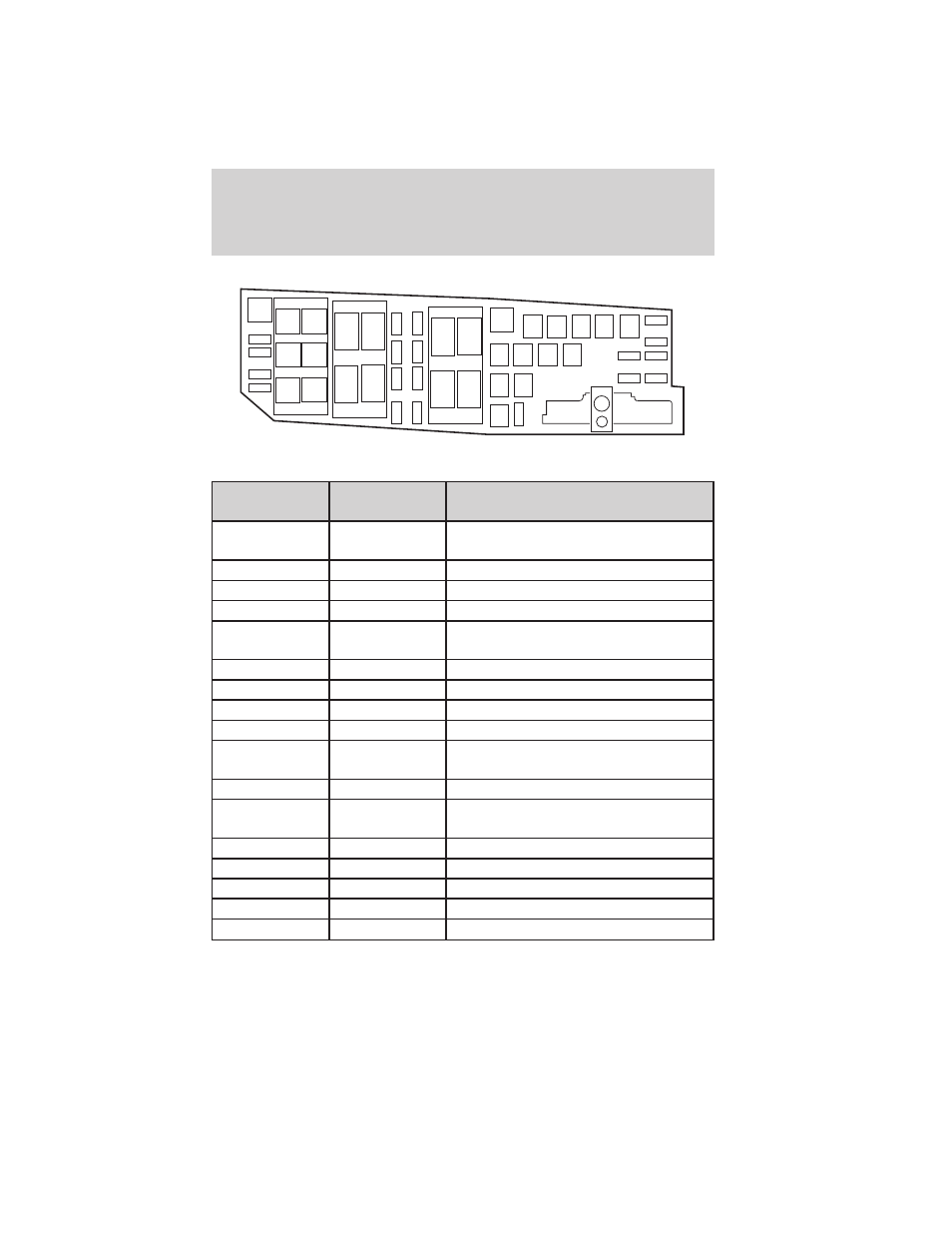

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected circuits
1 25A* Passenger compartment fuse panel
(modified vehicle)
2 40A** Passenger compartment fuse panel
3 50A** Battery supply (modified vehicle)
4 20A** Fuel pump
5 10A* Powertrain control module (PCM)
keep alive power, Canister solenoid
6 15A* PCM, Data link connector
7 20A* Ignition switch
8 15A* Headlamps
9 40A** Passenger compartment fuse panel II
10 30A** Passenger compartment fuse panel
(modified vehicle)
11 30A** Start lock
12 30A** Anti-lock brake system (ABS) pump
motor
13 30A* Heater blower motor
14 10A* PCM relay
15 20A** ABS/Traction control valves
16 30A** Cooling fan – low
17 50A** Cooling fan – high
25 24
22 23
26 27
28 29
21A 21B
21C 21D
30A 30B
30C 30D
31A 31B
31C 31D
31E 31F
32
33
34
35
36
15 16 17 18 19
20
10 11 12 9
3 4
1 2
5 6
7 8
13
14
