If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.

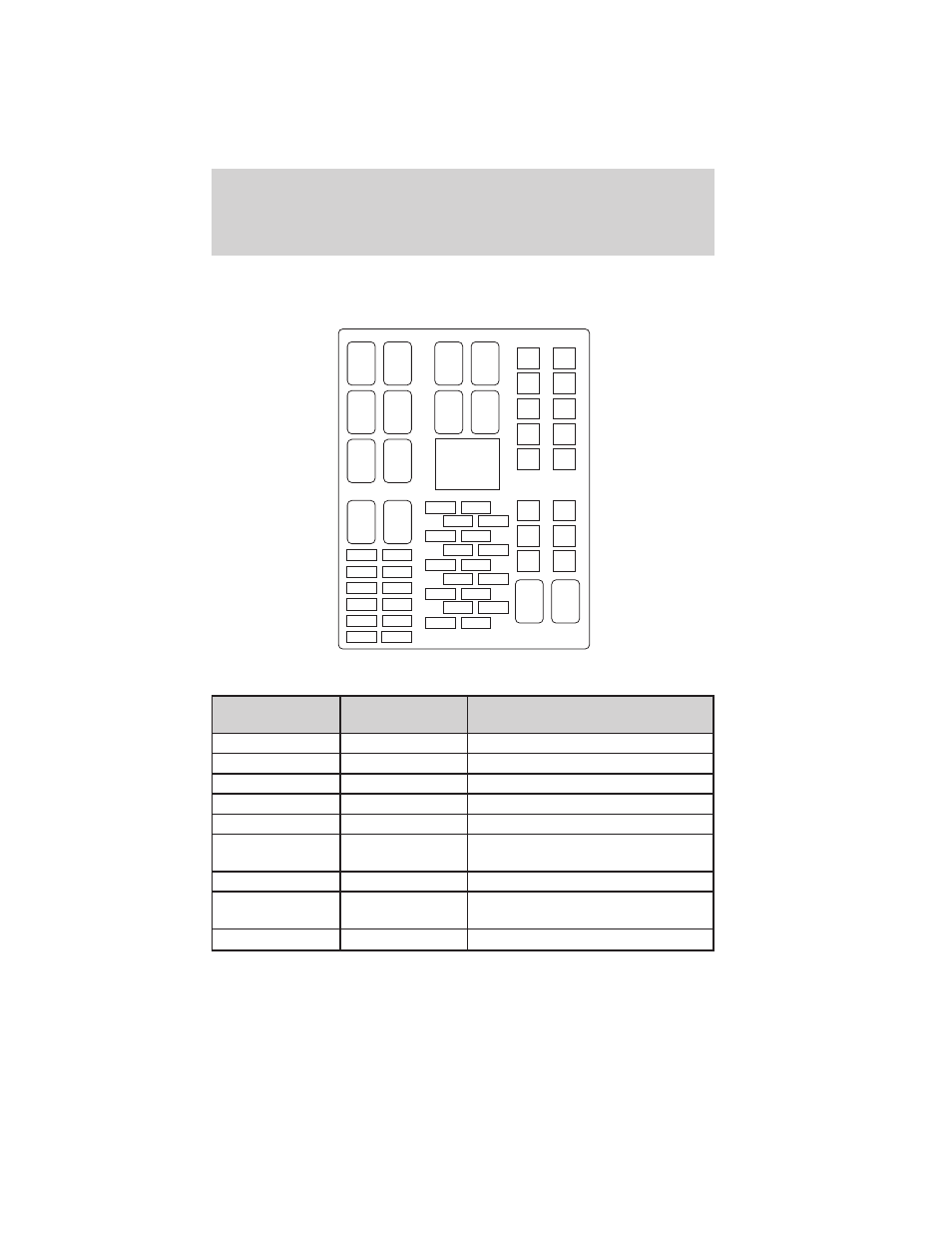

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Protected circuits
F1 40A* Anti-lock brake system (ABS) pump
F2 50A* Transmission control module (TCM)
F3 40A* Engine cooling fan relay and motor
F4 40A* Heater blower relay and motor
F5 60A* Passenger compartment fuse panel
F6 30A* Body control module (BCM) – door
locks
F7 60A* Passenger compartment fuse panel
F8 40A* Powertrain control module (PCM),
Power distribution box
F9 20A* ABS module valve
R11 R8
R12 R9
R5 R3
R6 R4
R13 R10
R2 R1
R15 R14
R7
F41 F35
F26 F17
F27 F18
F28 F19
F29 F20
F30 F21
F31 F22
F32 F23
F33 F24
F34 F25
F42 F36
F43 F37
F44 F38
F45 F39
F40
F6 F1
F7 F2
F8 F3
F9 F4
F10 F5
F14 F11
F15 F12
F16 F13
F46
