Page 199
E93784
3

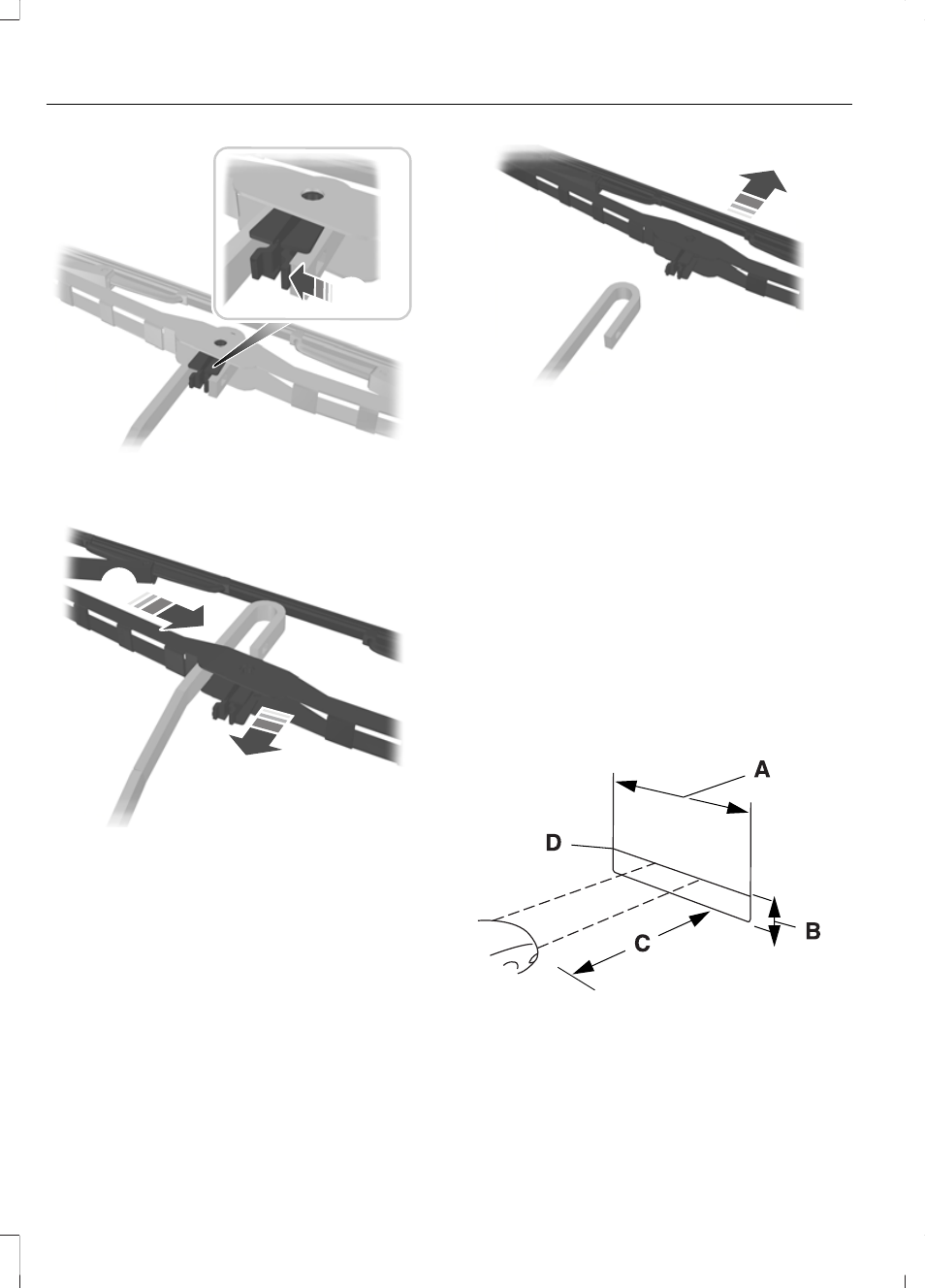

3. Disengage the wiper blade from the
wiper arm.
5
4
E93785
4. Unhook the wiper blade from the wiper
arm.
5. Slide the wiper blade to the side.
6
E93786
6. Remove the wiper blade.
Install new wiper blades in the reverse
order.
Note: Make sure that the wiper blade locks
into place.
ADJUSTING THE HEADLAMPS
Vertical Aim Adjustment
If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.
Headlamp Aiming Target
E142592
8 feet (2.4 meters)
A
Ground to the center of the
headlamp bulb
B
196
Transit Connect (CHC) Canada/United States of America, enUSA, First Printing
Maintenance
