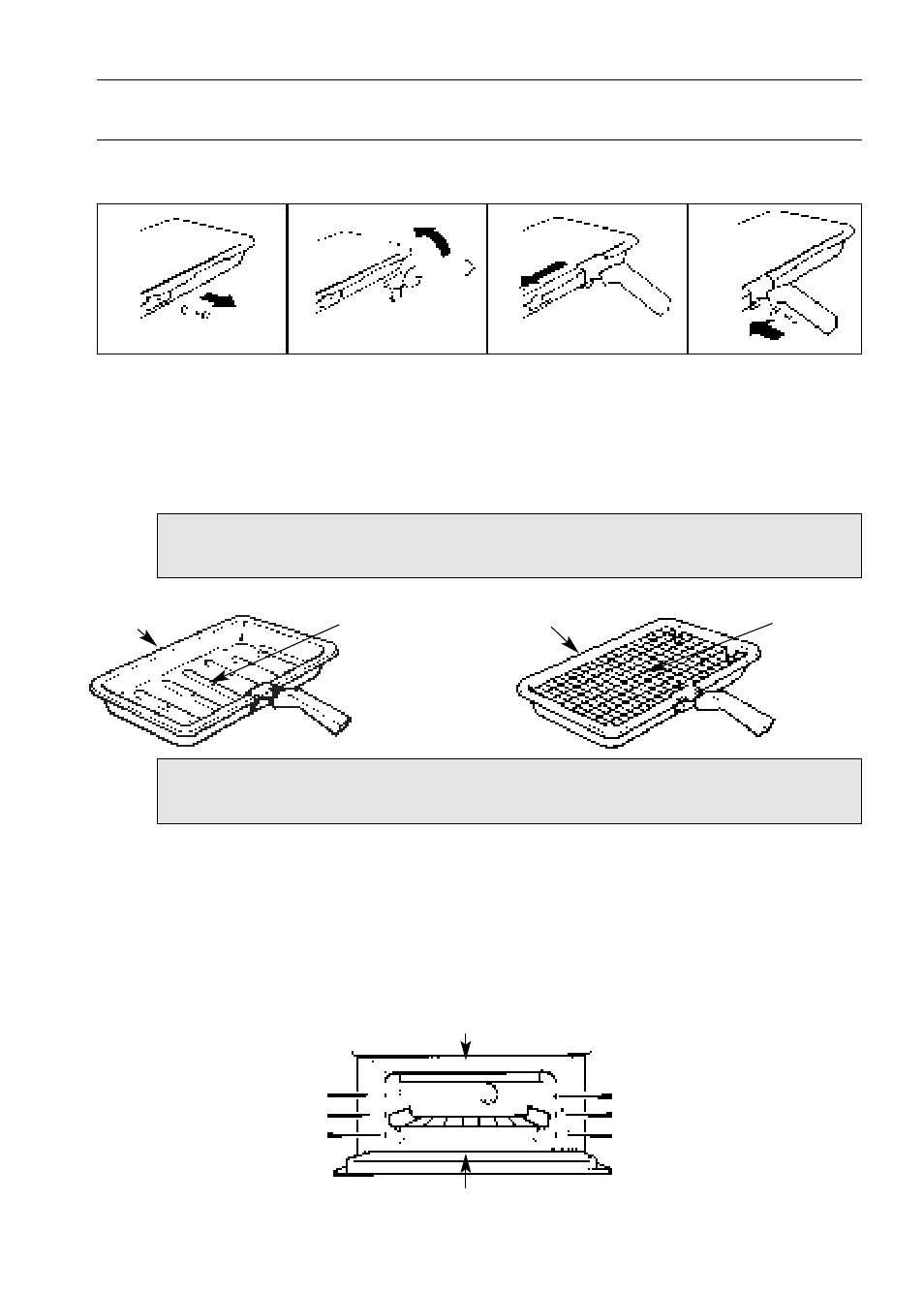

The grill pan handle is detachable from the pan, to facilitate cleaning and storage.
The grill pan handle can be fixed as follows:
Step 1 Remove the screw and washers from the grill pan bracket (a).
Step 2 Tilt the handle over the recess (b).
Step 3 Slide it towards the centre of the pan (c).
Step 4 Locate the handle over the bracket (d).
For a fixed handle, replace the screw and washers and ensure they are fully
tightened up. If a detachable handle is required, do not replace the screw and
washers.
Grill Pan Food Grid and Anti-Splash Tray
Easy Glide™ Shelf
1. Only use Grill Pan supplied.
2. Never attempt to remove the Easy Glide™ Shelf with the grill pan in position.
3. Always withdraw the Easy Glide™ Shelf to its stop position before removing the grill
pan (to avoid damaging the grill).
Top Oven Shelf Positioning for Grilling
Grill Pan and Handle
15
Note: If a fixed handle is required, the grill pan is unable to be kept in the main oven with
the door closed but may be stored on the floor of the top oven with the door closed when
the appliance is not in use.
Step 1 Step 2 Step 3 Step 4
GRILL PAN FOOD GRID
GRILL PAN
ANTI-SPLASH
TRAY
(a)
(b) (c)
(d)
ENSURE SHELVES ARE FITTED CORRECT WAY UP.
DO NOT PLACE FOOD/UTENSILS DIRECTLY ON THE OVEN FLOOR
3
2
1
3
2
1
Note: To stop fat splashing onto the grill mesh, it is important to use the anti-splash tray as
shown in the grilling chart. Always clean the grill pan, anti-splash tray and food grid after
each use.
