Reverse configuration—rear wheel to front wheel – Freedom Designs Freedom SP3 Mini User Manual
Page 31
29
FREEDOM
DESIGNS,
INC.
SP3 “Mini”
4
7
5
8
11
*Note:
Reverse configuration is only available with pop-up style footrest hangers.
See caster section page 10 for caster forks and page 12
for caster wheels
6
10
3
16
18
13
1
No.
PART
# DESCRIPTION QTY
No. PART
#
DESCRIPTION
QTY
1
11112
Reverse Configuration—Complete
1 ea.
11
9025
Screw—1/4 x 2” Hex Head
1 ea.
2
15002
Caster Plate Adapter
1 ea.
12
9036
Screw—1/4 x 1 3/4” Socket Head
1 ea.
3 4002
Wheel Plate
1 ea.
13
9048
Screw—1/4 x 1 1/4” Flat Head
1 ea.
4
14061
Axle Adapter Plate
1 ea.
14
9049
Screw—1/4 x 1 1/2” Flat Head
1 ea.
5
15001
Caster Housing Assembly
1 ea.
15
9065
Screw—1/4 x 2” Socket Head
1 ea.
6
See Note Caster Fork & Wheel Assembly
1 ea.
11
9072
Locknut—1/4” Nylon
1 ea.
7
10071
Fixed Anti-tip Assemblies
1 pr.
12
9073
Locknut—1/4” Nylon, Thin
1 ea.
8
2012
Eccentric Nut
1 ea.
13
9074
Washer—1/4” Flat
1 ea.
9
9005A
1” Plastic Spacer with 1/4” Hole
1 ea.
14
9077
Cap—3/4” Hex Nut
1 ea.
10
9022
Screw—1/4 x 1 3/4” Hex Head
1 ea.
15
9085
Locknut—1/2” Nylon, Thin
1 ea.

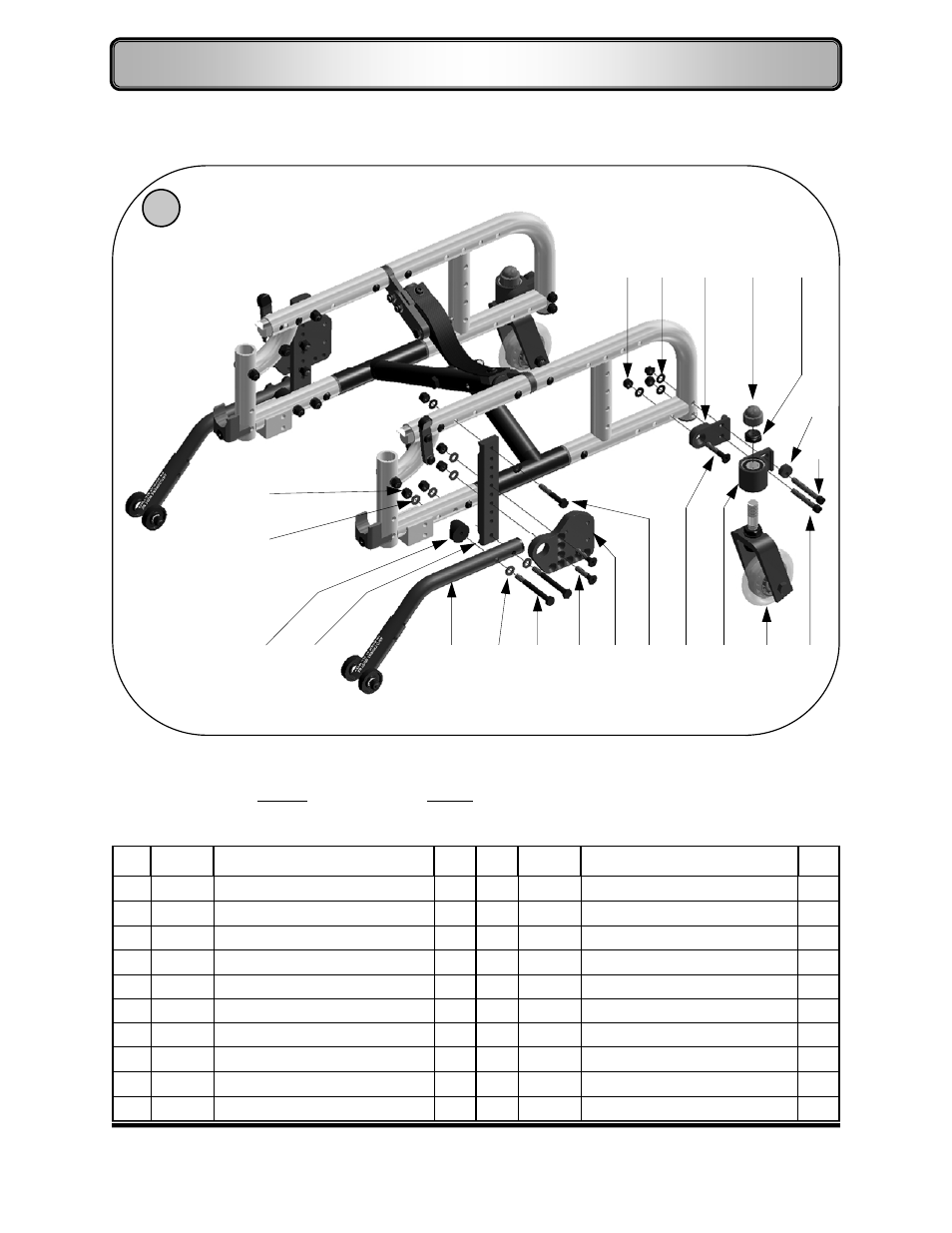

REVERSE CONFIGURATION—Rear Wheel to Front Wheel
12
17 19
2
14
15
18
9
14
15
