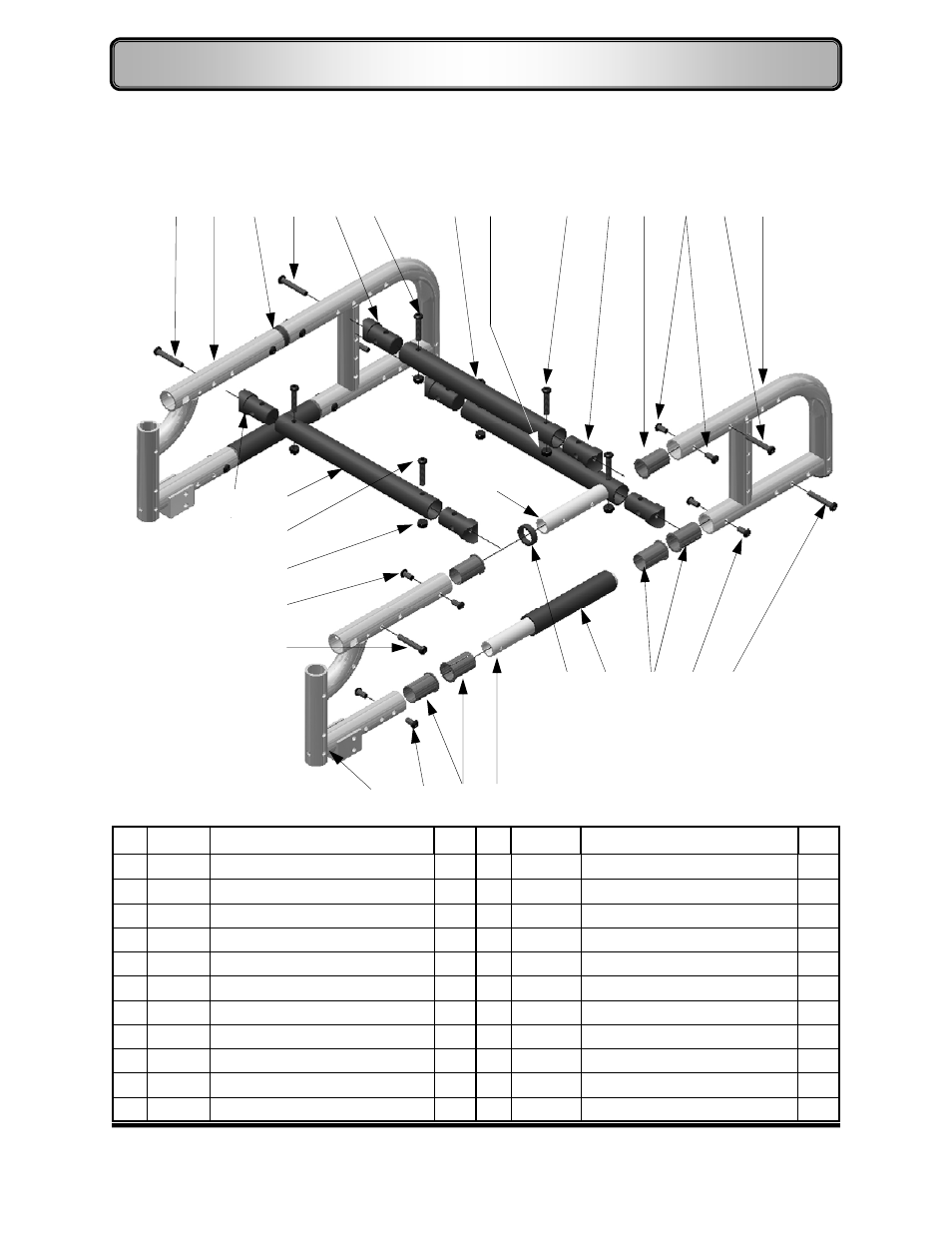

RIGID FRAME & CROSS BARS
No. PART # DESCRIPTION QTY No. PART # DESCRIPTION QTY
1 15020-S Front Frame—Short 1 ea. 2065 Cross Tube—Rigid, 15” 1 ea.
15020-L Front Frame—Long 1 ea. 2066 Cross Tube—Rigid, 16” 1 ea.
2 15021 Rear Frame 1 ea. 2067 Cross Tube—Rigid, 17” 1 ea.
3 15025 Inner Frame Tube—Lower 1 ea. 2068 Cross Tube—Rigid, 18” 1 ea.
4 15030 Inner Frame Tube—Upper 1 ea. 7 2069 Tube End Fitting 1 ea.
5 15033 Sleeve Bearing 1 ea. 8 2070 Spacer Tube—Cross Brace 1 ea.
6 2071 Cross Tube—Rigid, 10” 1 ea. 9 14009 Spacer—Link Hinge 1 ea.
2072 Cross Tube—Rigid, 11” 1 ea. 10 9031 Screw—1/4 x 1/2” Button Head 1 ea.
2062 Cross Tube—Rigid, 12” 1 ea. 11 9034 Screw—1/4 x 1 1/4” Button Head 1 ea.
2063 Cross Tube—Rigid, 13” 1 ea. 12 9035 Screw—1/4 x 1 1/2” Button Head 1 ea.
2064 Cross Tube—Rigid, 14” 1 ea. 13 9073 Locknut—1/4” Nylon, Thin 1 ea.
