FASS T D09 095G - Manual (Page 10)

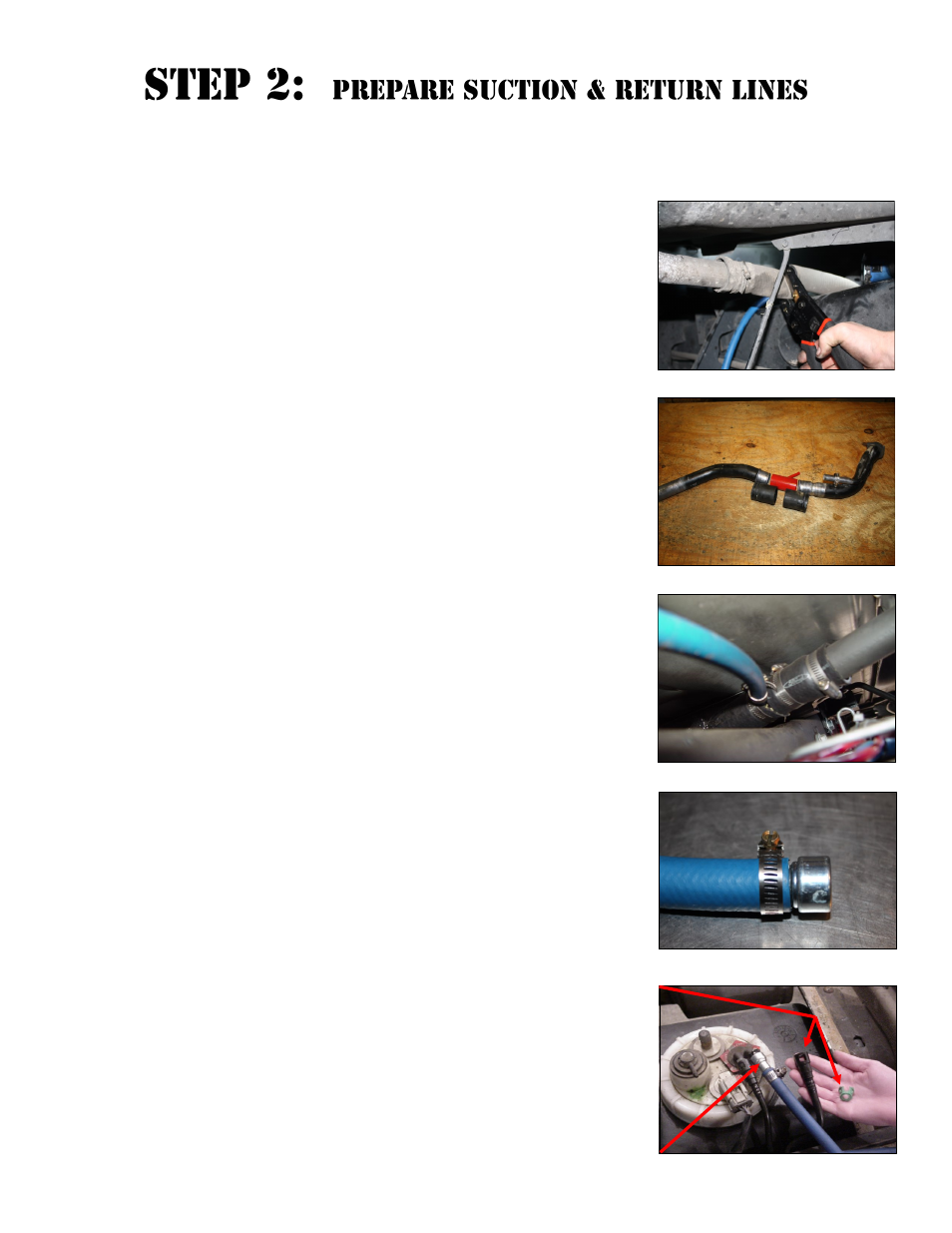

A. Prepare FASS return line by cutting rubber junction connecting the
two halves of the filler neck. Loosen the factory clamps at the tank.
B. Position RM-1003 with the junction pipe aiming to outside of bed.
Clamp rubber and RM-1003 using both HC-1004’s and factory clamps.
Filler neck removed for photo clarity.
D. Using a hose clamp install the fuel line over the knurled flare on the
QD-1001. Oil o-rings inside Quick Disconnect.
C. Using a HC-1001 connect FL-1002 Fuel Line to the junction of RM-
1003.
E. Disconnect factory suction line clip by pressing in on the two tabs lo-
cated on either side in the connection fitting. Bed is removed for photo
clarity. Once removed, clean the suction tube and connect the QD-1001
addressed in the previous step. Loop fuel line over frame, will be ad-
dressed in step Installing Fuel Line. Plug or seal factory line or remove.
Some of the photo’s are of a different application, procedures are the same.
Helpful Hint: If more space is required to access the top of the
fuel tank, loosen the strap nuts to the end of the stud. This will
gain you about 3” more working room. Bed has been removed
for photo clarity.
