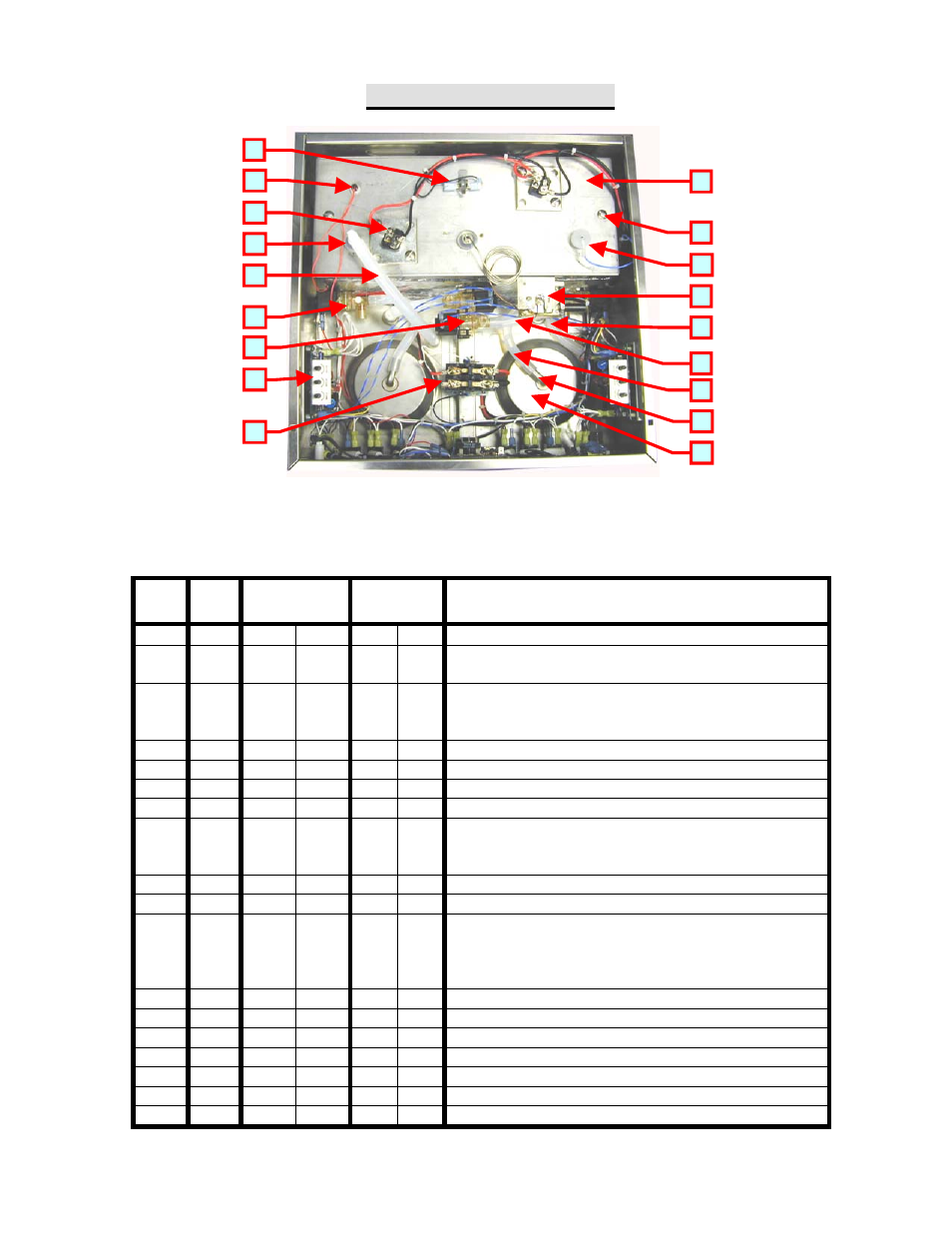

TOP CABIN OPEN VIEW
TOP CABIN - PARTS IDENTIFICATION
[* RECOMMENDED SPARE PARTS]
ITEM SPARE
PARTS
SINGLE UNITS
P/N QTY
TWIN UNITS
P/N QTY
DESCRIPTION
1 * L656A 1 L656A 1 HI-LIMIT
2 * L499A
M532A
1
1 L499A
M523A
1
1 FLOAT SENSOR WITH
RUBBER GASKET
3 * G367A
G369A
G286A 1 G367A
G369A
G286A
2 HEATER (1.7 KW 120V) OR
HEATER (3.0 KW 230V) OR
HEATER (4.0 KW 230V)
4 K683A 1 K683A 1 OVERFLOW FITTING FTB
5 * M483A 1 M483A 2 SILICONE HOSE- OVERFLOW ( .312”ID x 7”L)
6 * L688A 1 L688A 2 DINSPENSE VALVE, SINGLE 120V 60HZ
7 * L689A 1 L689A 1 DINSPENSE VALVE, DUAL, BYPASS 120V 60HZ
8* *
*
*
L264A
58026
L410A
1
1
1 L264A
----
L410A
2
1
2 SINGLE TIMER - 120V
DUAL TIMER - 120V [ or 58027 – 220V ]
TRIPLE TIMER - 120V
9 * B177A 1 B177A 1 CONTACTOR – 2 POLE, 30/40 Amp, 120V [B178A FOR 208/240V]
10 SD06Q 1 SD06Q 2 SPRAY HEAD BASE ASS’Y
11 * K671Q
M197A
E107A
K668A
1
1
1
1 K671Q
M197A
E107A
K668A
2
2
2
2 SPRAY HEAD FITTING ASS’Y WITH
RUBER WASHER
SPRAY HEAD
NUT
12 * M483A 1 M483A 2 SILICONE HOSE - SPRAY HEAD ( .312”ID x 11”L)
13 * M483A 1 M483A 2 SILICONE HOSE- BYPASS ( .312”ID x 6”L)
14 * M483A 1 M483A 1 SILICONE HOSE – HOT WATER FAUCET (.312”ID x 10.5”L)
15 * L681A 1 L681A 1 THERMOSTAT
16 * K402Q 1 K402Q 1 HI-LEVEL CONTROL SENSOR
17 P465A 1 P465A 1 SCREW, ¼-20 x 5/8
18 RK70A 1 SC82A 1 TANK TOP
1
1
1
1
1
2
3
6
7
8
9
1
1
4
1
1
5
1
