H-1021

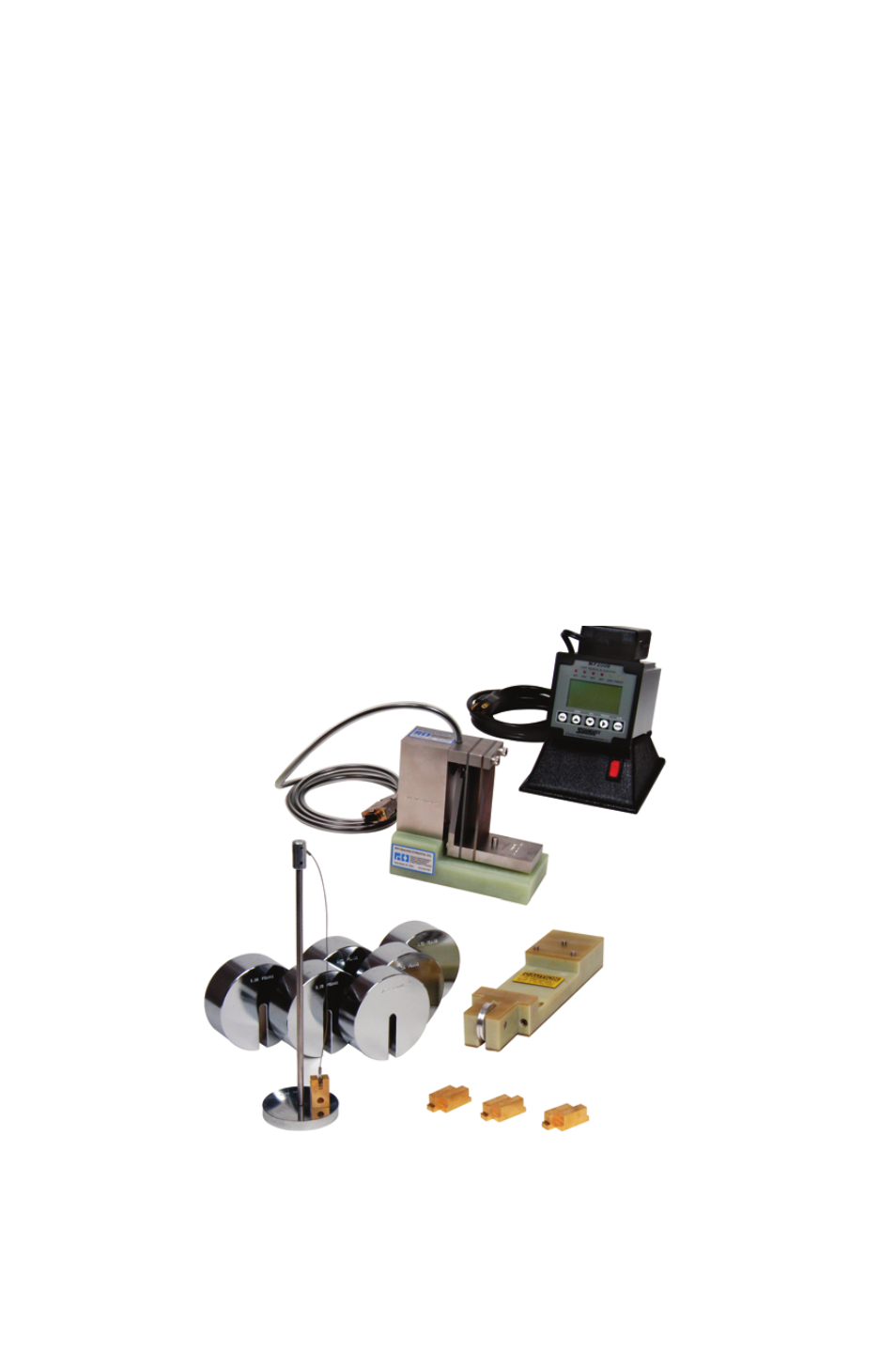

Force Determination Adapter— H-1021
Force Determination Adapter, 220V, 50/60Hz— H-1021.4F
Provides precise tensile strength measurement of any material, preparation,
procedure or type of test to an accuracy of 0.01 lbs. Attaches over existing
pin in ductilometer without tools or machine modification, eliminating need
for dedicated equipment for standard and force ductility testing. Stainless
steel unit has spring-loaded movable platform to which sample is attached
and stationary L-shaped base that incorporates LVDT sensor. LVDT can
accommodate two adapters simultaneously. Electric components are located
out of the water bath. Digital display is calibrated in pounds. Includes power
supply to serve LVDT, digital display, calibration stand to ensure consistent
results, one 4-lb. and five 5-lb. slotted weights and standard 0-2 VDC analog
output; 60ma DC power supply provides constant voltage excitation with
adjustable voltage. Analog output provides easy interface with chart
recorder, computer or other readout devices via RS232 port. H-1030 mold
is recommended for use with this equipment. Adapter overall dimension:
6" x 5-3/8" x 1-3/4". Shipping wt. 20 lbs. (9kg)
