Description
A) The Humboldt DSCP in Figure 1 consists of a large easy to read display,
Multiple selectable display units, padded handle grips, 30" dual rod design
starter rod with available extensions and a standard 1.5 cm
2
with an angle
of 60°cone.
B) Optional DSCP equipment can be found at www.humboldtmfg.com,
including:
• 30" Extension Rods
• Replacement Cones 1.5 cm
2
• Optional Cone 3 cm
2
• Field Moisture Ovens
• Augers

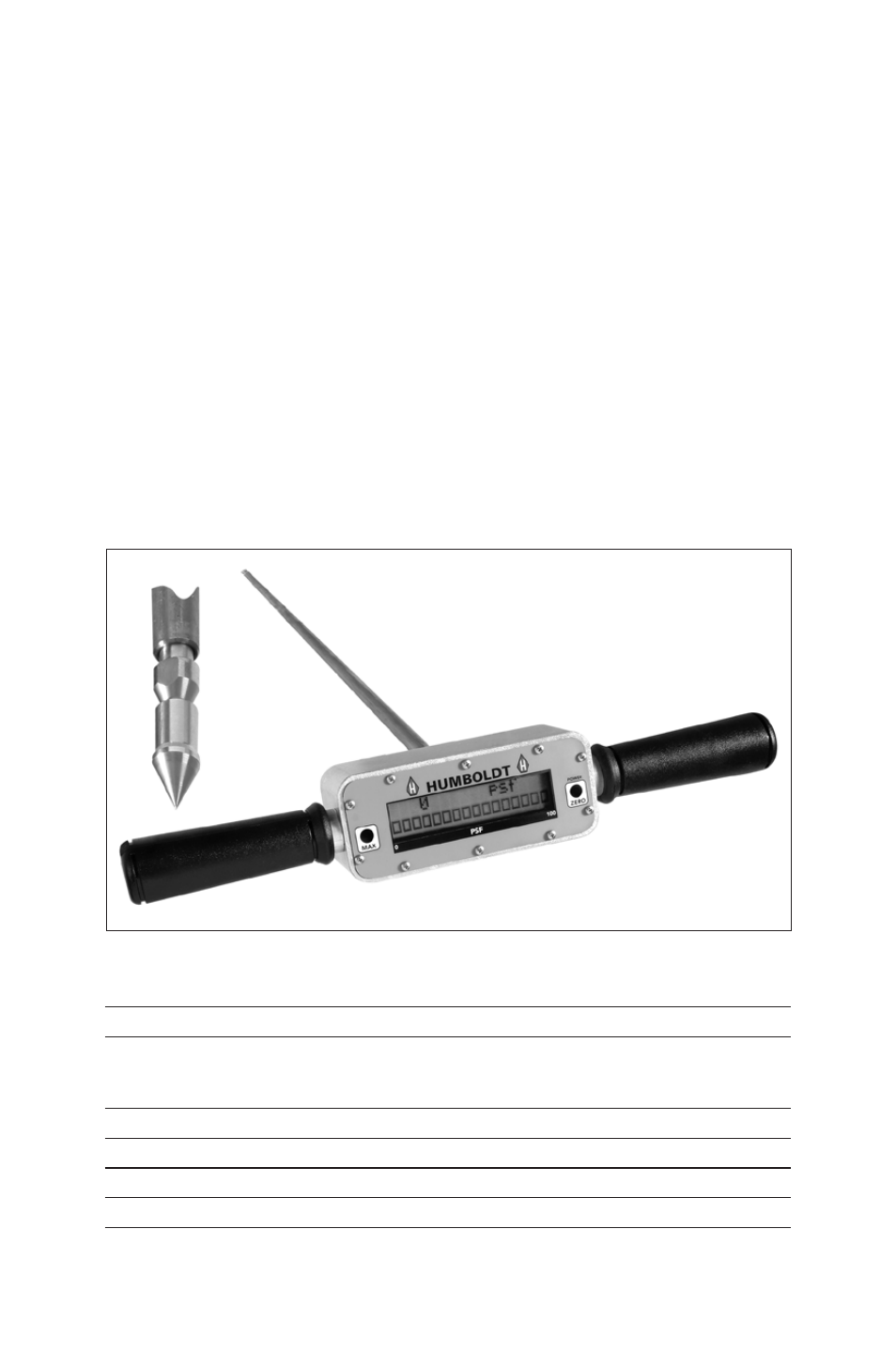

Figure 1 – Digital Static Cone Penetrometer
Large Easy to Read Display
lb, tsf, kg/cm
2
Includes Force Indicator Scale
Maximum Total Load
250 lb, 70 tsf, 68 kg/cm
2
Readability
1 lb, 1 tsf, 1 kg/cm
2
Head w/Handles
2 in x 2.5 in x 16 in (5 lb)
Includes Padded Handles
1% full scale
Starter Rods
30 in (76 mm)
Power
9v battery
Drive Cone Assy.
1.5 cm
2
with angle of 60° (opt. 3 cm
2
available)
Extensions available
30 in (76 mm)
3
