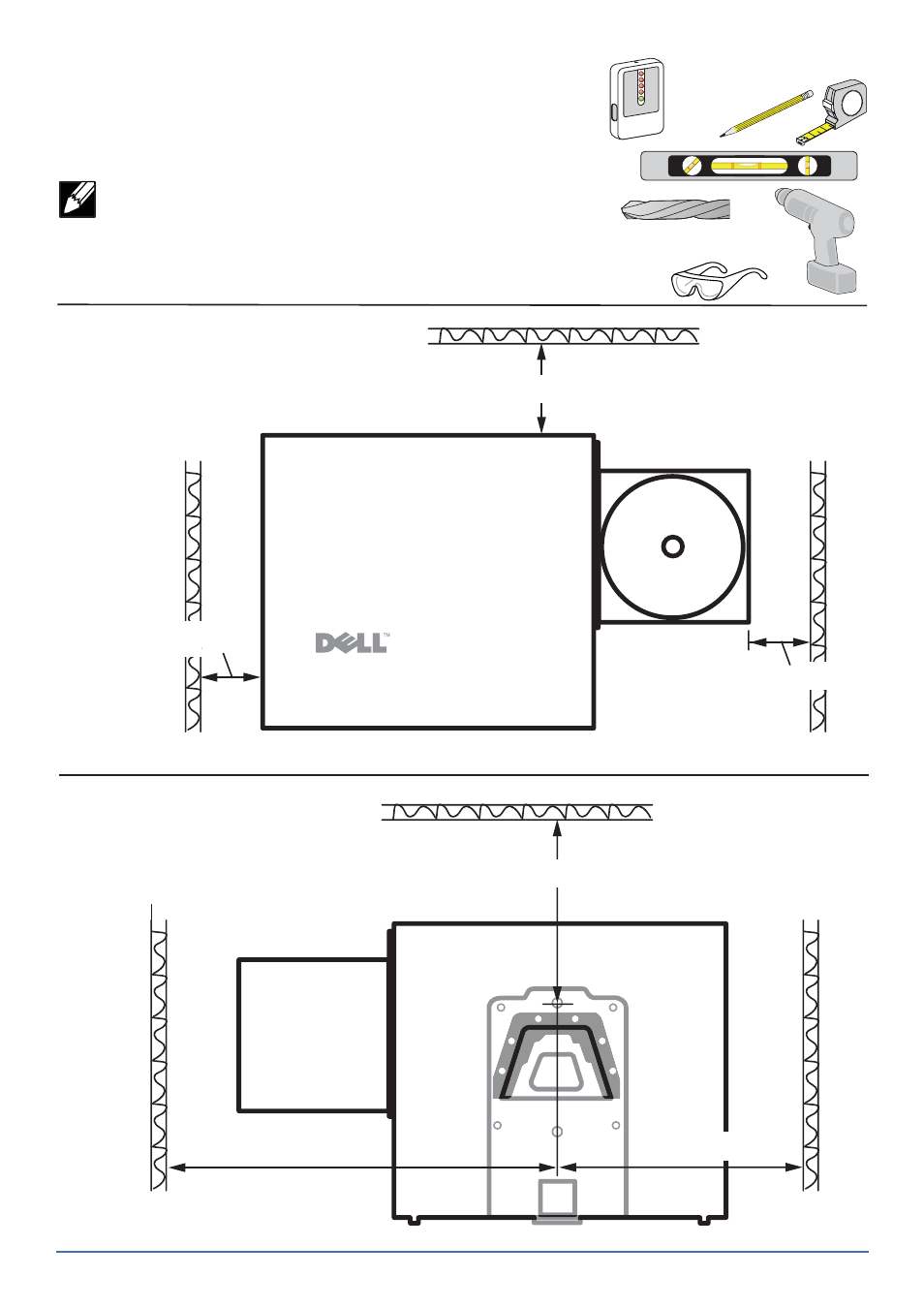

Wood Stud Wall Mount Steps
NOTE: The following tools are required for installation to the
wall stud: stud fi nder, measuring tape, pencil, level, safety
glasses, power drill with 3/16” (5mm bit suitable for wood).
Stud Finder
Wall Mount Clearance -
Back View
Ceiling
Ceiling
≥6.0” (152.4 mm)
≥8.0” (203.2 mm) ≥13” (330.2 mm)
Wall Mount Clearance -
Front View
≥3.33”
(85 mm)
Left Wall
Left Wall
Right Wall
Right Wall
≥2.45”
(62.2 mm)
≥2.28” (58 mm)
Ø 5 mm (3/16”)
6
Attach the mounting bracket to the wood stud.
