HOW TO SET THE VALUES

With WM30 the values setting is even more simple, it is possible to increase or decrease every single digit,
it is possible to easily obtain the wished value or change directly from one multiplier to another one.

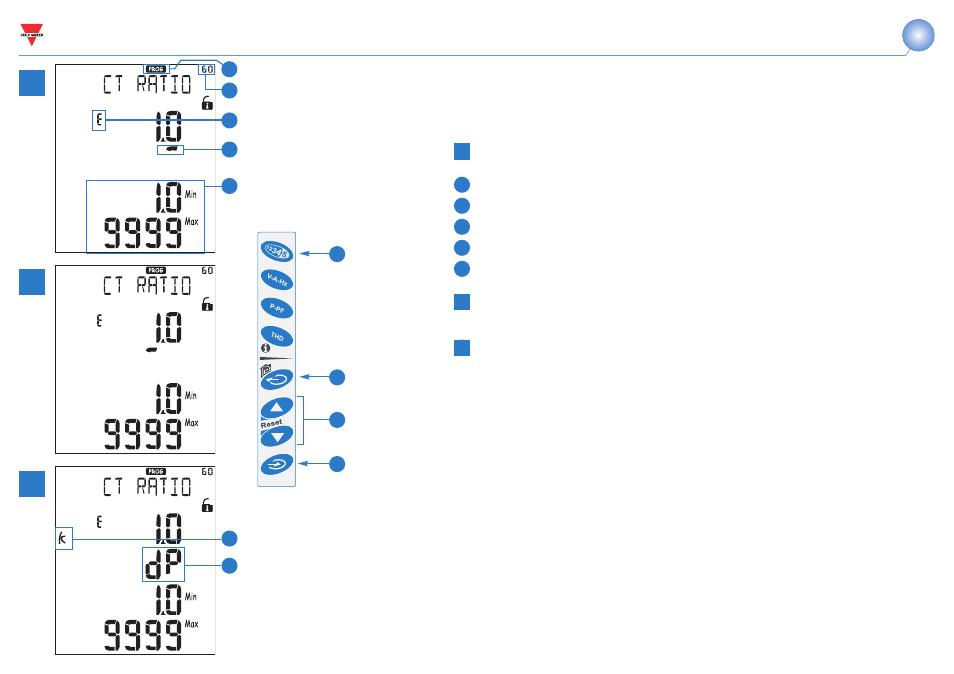

Example: use of the menu relevant to the current ratio.

During the programming phase the instrument provides useful information:

recognition of the programming mode;

identifier number of the menu (see also the programming flow chart);

edit, identification of the line subject to set;

cursor that identifies the digit subject to set;

maximum and minimum limit of selectable variable.

Use the keys

to increase and decrease the digit detected by the cursor

(d)

. To set another digit move

the cursor to match the wished digit using the key

, every key press corresponds to a left shifting of the

cursor

(d)

When the last digit on the left is matched by the cursor

(d)

, a further press of the key

allows to

change the decimal point and the multiplier

(f)

(k o M), the blinking “dP” (decimal point) text

(g)

identifies

that the instrument is able to do this function.
To modify the decimal point position and the multiplier use the keys

to have the wished value.

To confirm the set value press the key

To cancel the operation in progress and come back to the starting condition press the key

To cancel the operation in progress and come back to the measuring “Home” page, press and keep press-
ing the key

at least 2 seconds.
