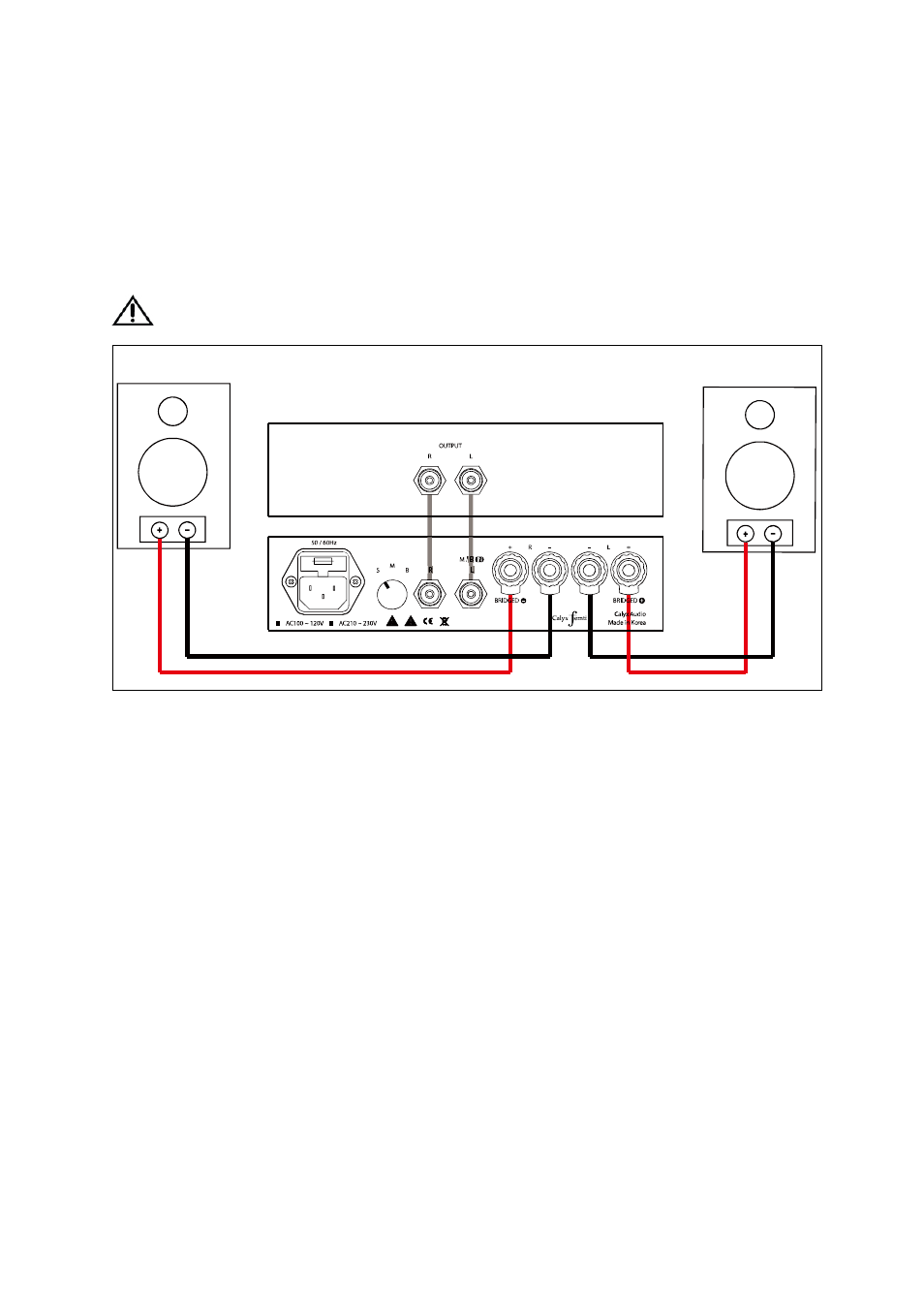

5. Connection Diagram
S : Stereo Mode
Caution
Turn off the power to all components before making connections.
Connect your preamplifier using RCA cable.
When connecting Calyx FEMTI Amplifier to preamplifier, take care to connect Left input from Left
output and Right
Select the Output Mode Selector switch located on the rear to ‘S’
After ensuring all connection, turn the Calyx FEMTI Amplifier power on and violet LED light will
turn on. After 5 seconds, the amplifier will stabilize and switch to normal operation mode.
Pre-amplifier
Calyx FEMTI Amplifier
Left Speaker
Right Speaker
