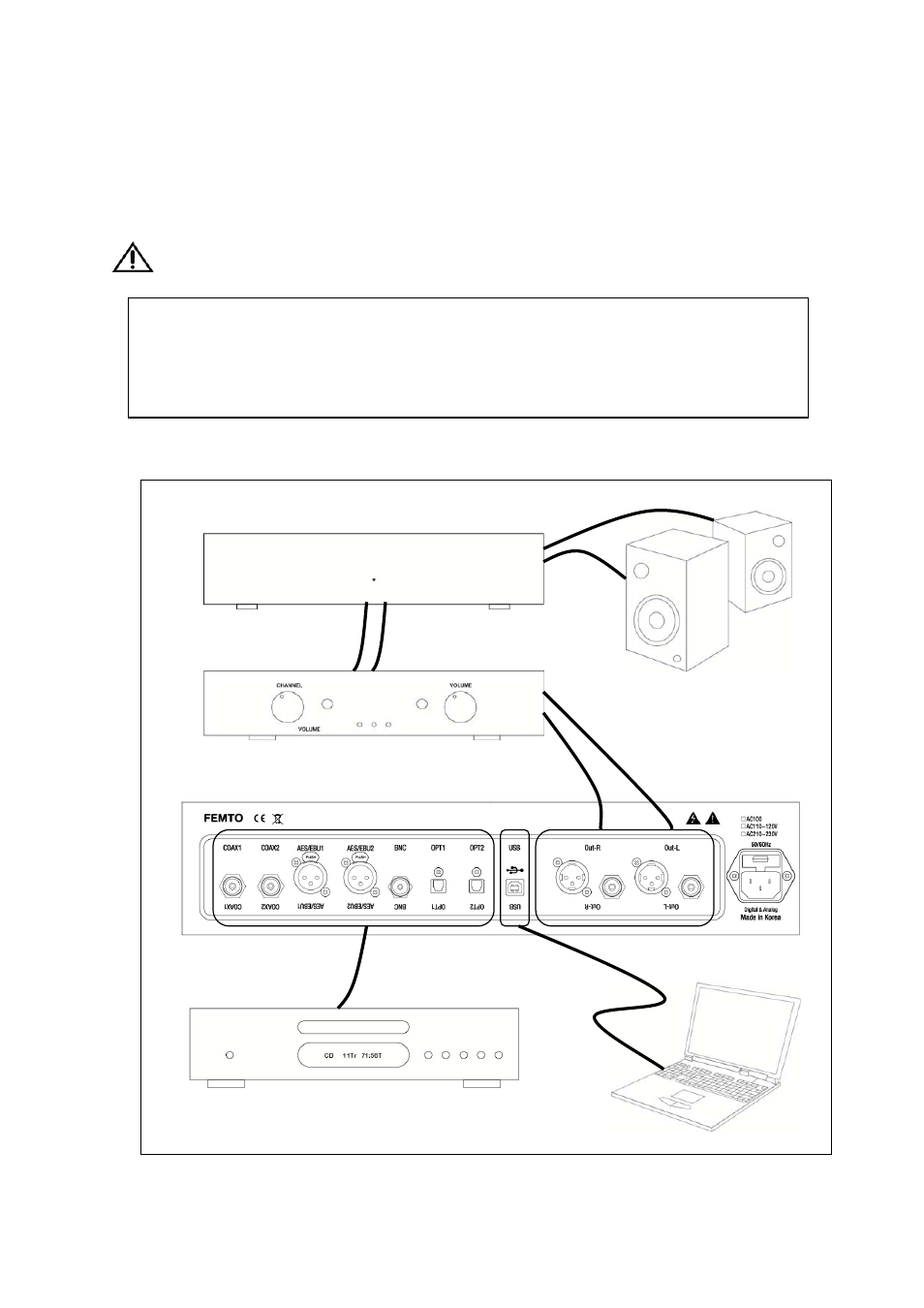

Connection Diagram
Caution
Turn off the power to all components before making connections.
For connection of digital cables, please use the right cables for each signal.
For “Coax 1, 2”, use the RCA type coaxial cables of characteristic impedance 75 Ohm.
For AES/EBU, use the cables of characteristic impedance 110 Ohm
For USB, use a “USB 2.0 compliant” cable.
Power amplifier
Pre-amplifier
CD Transport
Computer
Calyx FEMTO
Speaker
USB
