Craftsman TRACTOR LIFT 610.246 - Manual (Page 3)

2
3
1
6
4
7R 7L
8
11
10
Tractor Lift can be used out of the box on all Craftsman tractors
with bumpers or brush guards. Tractor Lift mounting hardware is
provided if your tractor does not have a bumper or brush guard.
OPERATION MAINTENANCE
Store unit in a clean dry place.
Recommended tire pressure - 30 PSI.
Before each use:
Always check tire pressure. •
Always inspect unit for damage. •
Always check fasteners for tightness. •
TOOLS REQUIRED FOR ASSEMBLY
9/16" Wrench and/or Socket
Adjustable wrench

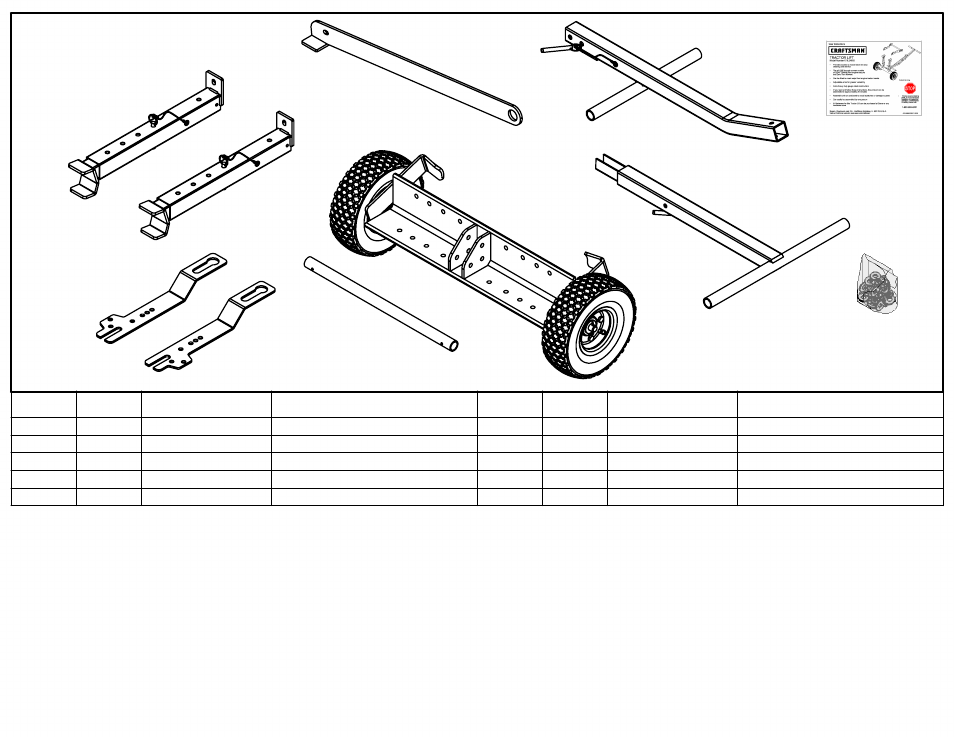

REF NO QTY PART NUMBER DESCRIPTION REF NO QTY PART NUMBER DESCRIPTION
1 1 51001 Angle Frame Assembly 7L 1 410131 Tractor Mounting Bar - Left
2 1 51002 Handle Top 7R 1 410132 Tractor Mounting Bar - Right
3 1 51003 Handle Bottom 8 1 51006 Stabilizer Bar
4 2 41009 Lift Tube Assembly 10 1 310031 Hardware Bag
6 1 51005 Lift Cross Tube 11 1 310041 Assembly Manual
Carton Contents
FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T.
Page 3.
