4. Keep tension on the Wire, and guide at least 12 inches of Wire into the Wire Inlet
Guide (3C). (See Figure G.)
5. Lower the Lever (4C) on the Wire Feed Assembly. Raise and tighten the Handle
(6.1C). Once the Wire is held in place, you may release it. (See Figure H.)
6. Lay the Torch Cable out in a straight line so that the Welding Wire moves through it
easily. Leave the Door (6A) of the Welder open so that the Wire Feed Assembly can
be observed.
7. Remove the Gun Nozzle (1E) and Contact Tip (2E). (See Figure I.)
HANDLE
(6.1C)
LEVER
(4C)

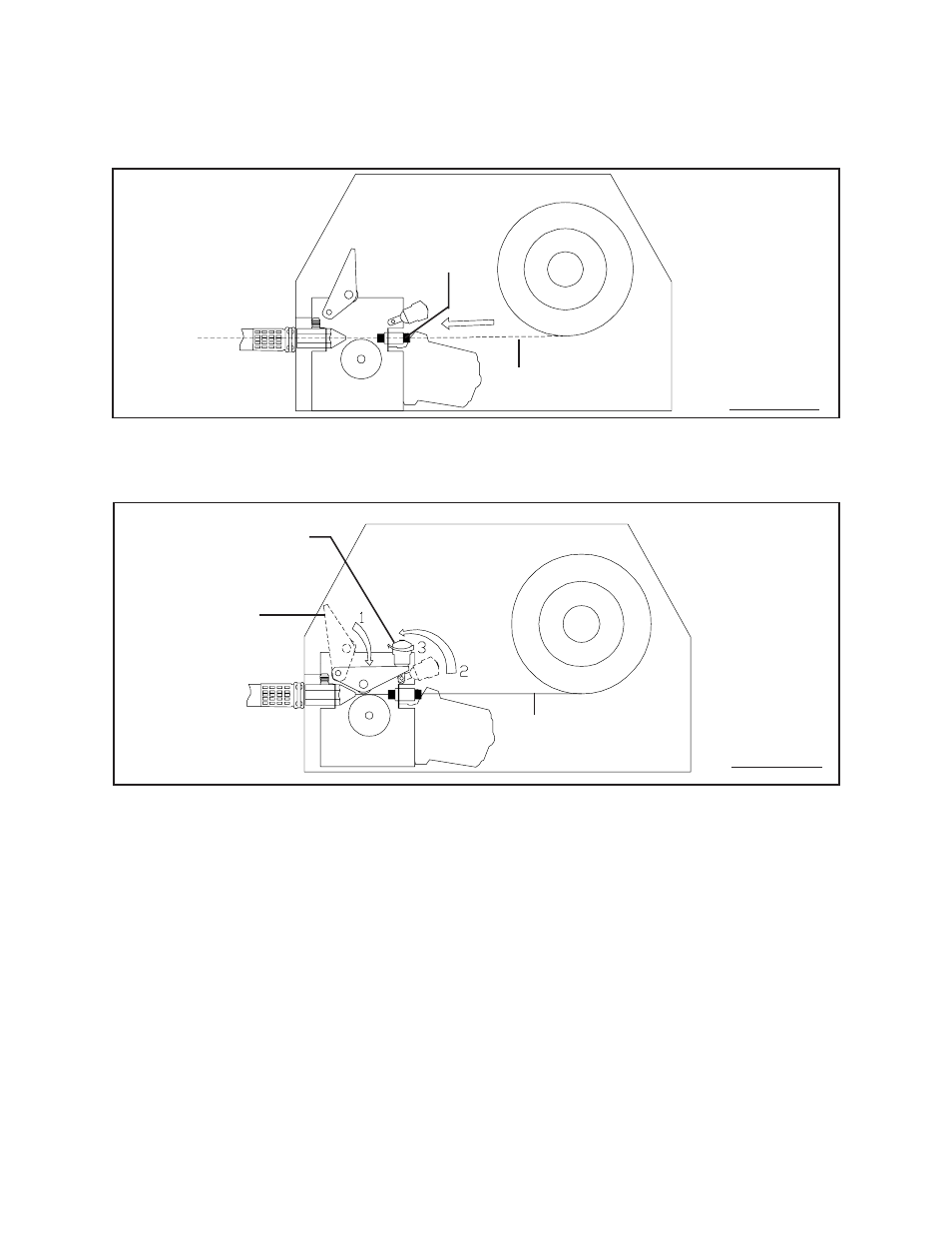

FIGURE H
WELDING
WIRE
FIGURE G
WIRE INLET
GUIDE
(3C)
WELDING
WIRE
