Retro-fit instructions – Amico NCG Chemetron Retro-Fit Outlet User Manual
Page 3
www.amico.com
3

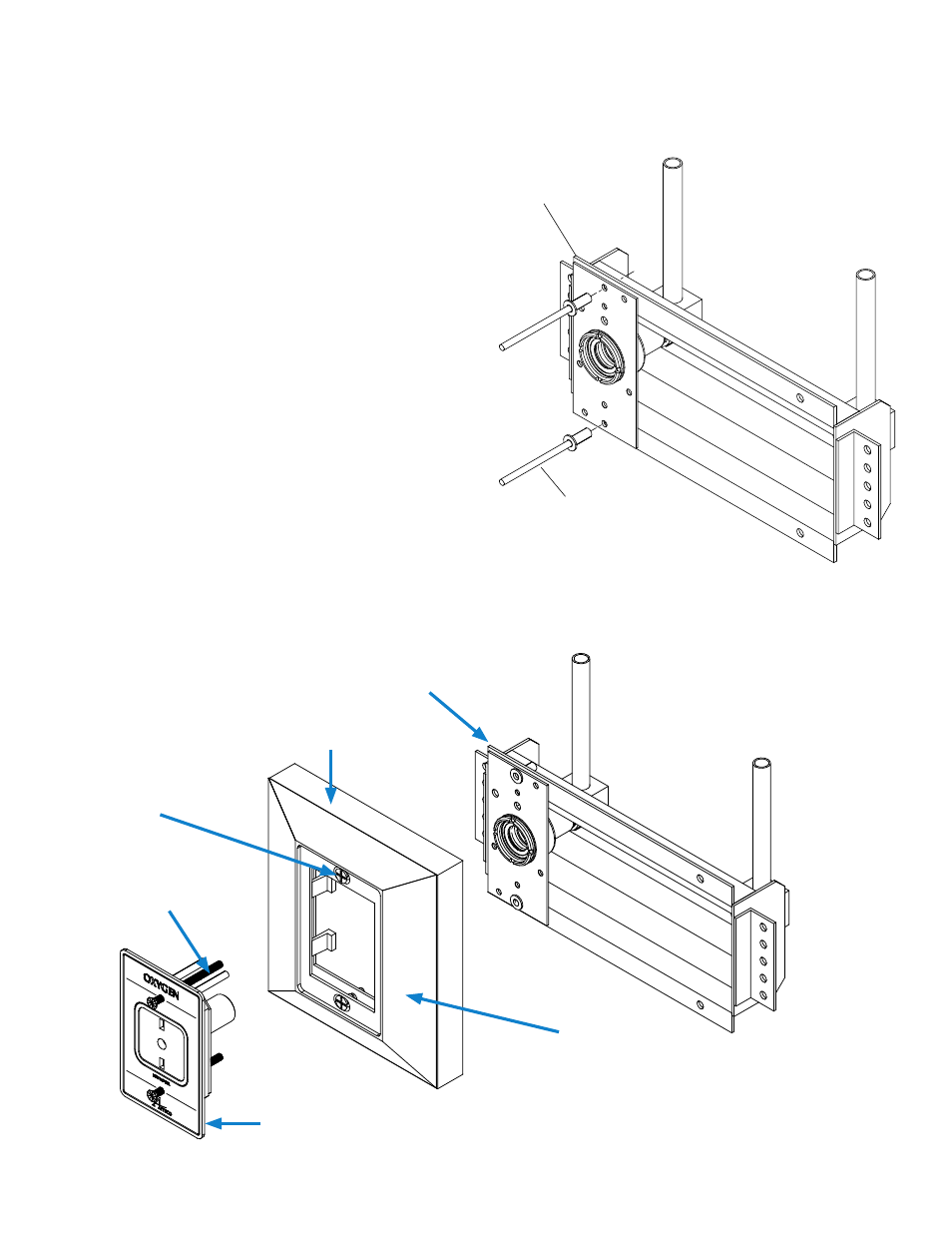

Step 3:
Use the rivet provided to attach the upgrade
bracket to the existing console to ensure it is
gas-specific.
Note: Ensure the Amico rough-in and the NCG
rough-in are the same gas.
Step 4:
Place the pre-assembled filler frame and face
plate over the wall outlet and insert the latch
valve assembly through the face plate and
fasten with the latch valve screws.
Retro-Fit Instructions
Existing NCG
Rough-In
Filler Frame
(O-CON-FIL-PB500)
#6-32 Screw
(H-MPF-0612)
Latch Valve Screw
(H-1612-06-18A)
Front Latch Valve
(O-FASC-QD-U-GAS)
Chromed Faceplate
(O-TRIM-M500C)
(H-RIVIT-H-W-END)
Existing NCG
Rough-In
Aluminum Rivet
(H-RIVIT-H-W-END)
