Amico Skyline Overbed Light Series - Manual (Page 6)

Mounting the Hanging Bracket
Mounting hardware shall be provided on site by others and shall comply with the local building code.
Amico recommends the fixture to be installed at a height of six feet (1.8m) above
finished floor.
2" x 4" electrical box should be used for electrical terminations.

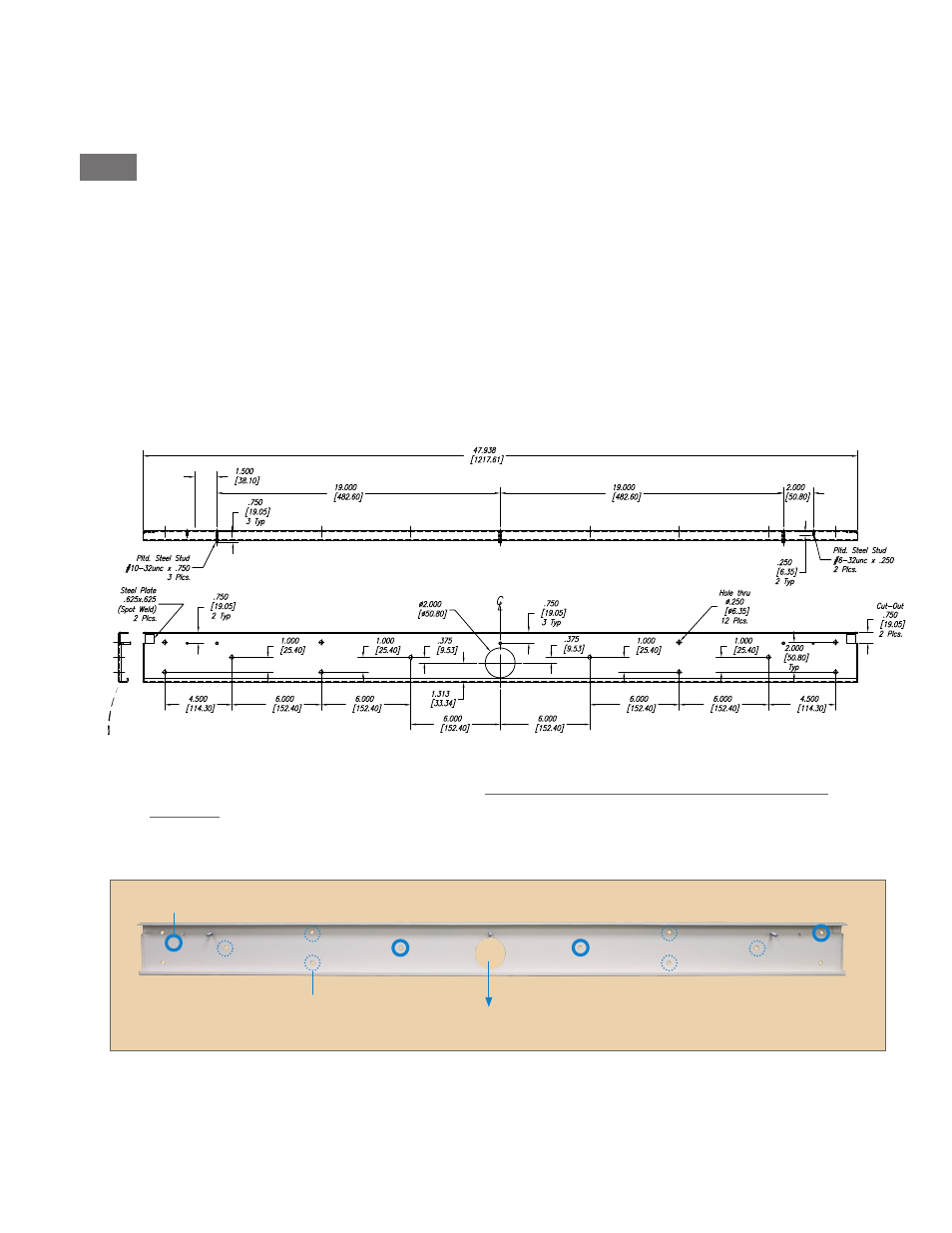

For feed opening and mounting holes dimensions refer to the drawing of the hanging bracket below.
Use the hanging bracket as a template and make a mark at the pilot holes on the mount surface.
At least six mounting holes are required. *Must be mounted with location pins at top
position.
Using a metal stud finder check if any pilot holes are aligned with a wall studs.
For drywall mounting use 3/16” toggle bolts to secure the back plate. The ½” sized holes are required in
the drywall.
For wall studs mounting Amico recomends using # 10 x 1½” Phillips pan head self-drilling tek screws.
Hanging Bracket
Hanging Bracket
step
1
locator pins
mounting holes
opening for wiring access
6 Amico Lights
Installing Skyline Light
