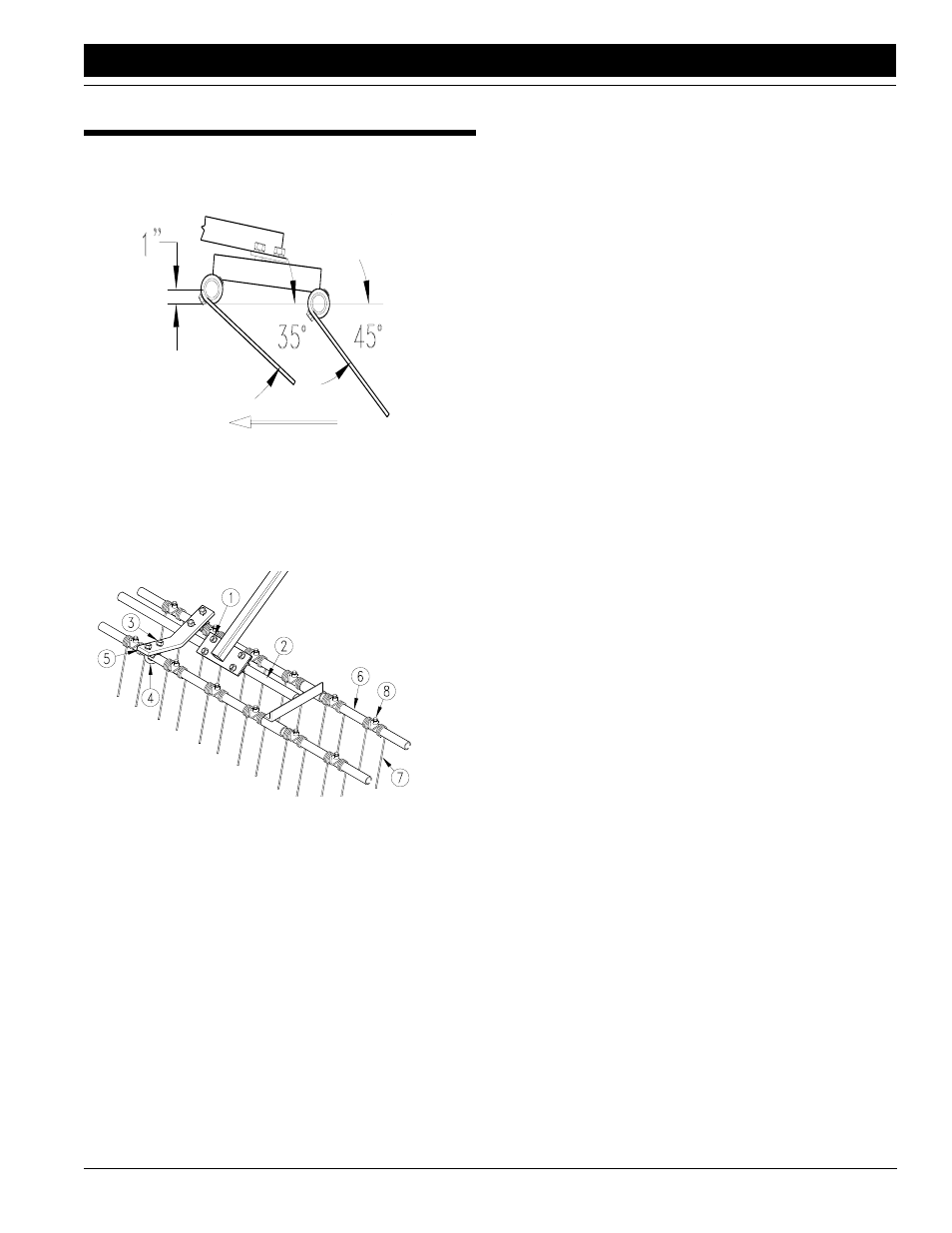

Figure 3 shows a successful harrow position for no-till conditions.
Because of different soil moisture, trash levels and trash types,
you may need to reposition the tube frame or tines. Initially posi-
tion the frame and tines as shown.
12667
Figure 3
Tine Angle For No-Till Drilling
To adjust the frame, refer to Figure 4. Loosen the four hex nuts
(1) on the u-bolts and rotate the frame tube (2) as necessary.
To adjust the tines, loosen the four 1/2-inch hex nuts (3) on the 1/
2-inch u-bolts (4) on the support bar (5). Rotate tine tubes (6) so
the tines (7) are against the stop bushings (8) and are angled
back as necessary. Retighten hex nuts on u-bolts.
16297
Figure 4
Harrow Adjustment
