Assembly
Refer to Figure 2.
4. To assemble the harrow on the wings, bolt the wing mounts
(1) to the frame tube at the dimension shown.
IMPORTANT: Do not position the wing mounts directly
above an opener.
5. Bolt the hanger tubes (2) to the wing mounts using 1/2-inch
bolts and nylock nuts at the dimension shown.
6. For the NTA3510, positions wing sections so there are two
sets of coil-tine teeth to the outside (3) and one to the inside
(4) of the harrow frame (5).
NOTE: On the NTA3010, the wing sections are interchangeable.
7. U-bolt the wing sections to the wings at the dimension
shown.

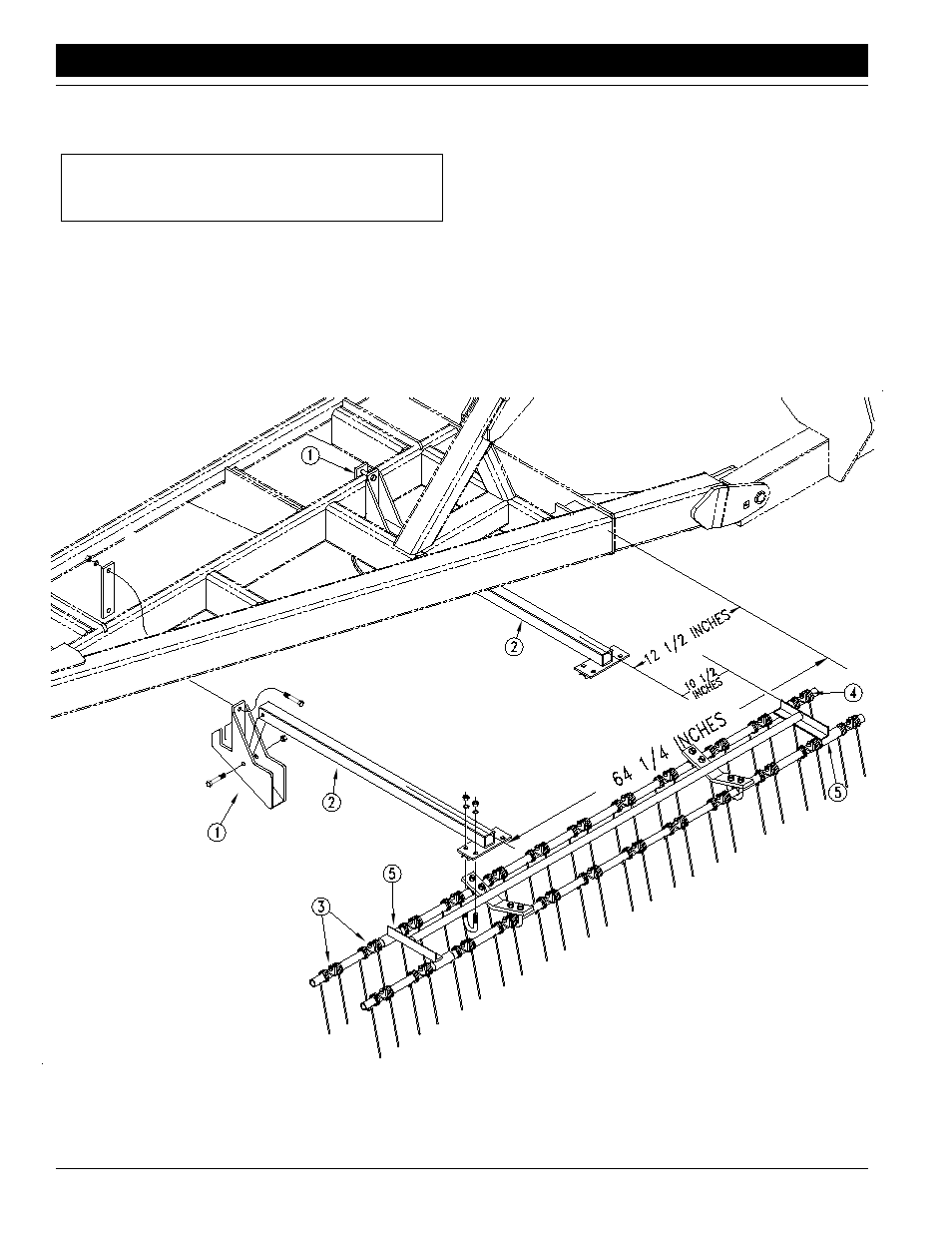

Figure 2
Harrow Assembly, Wing Sections
