Installation Instructions
Great Plains Mfg., Inc.
© Copyright 1999 Printed 7/1/99
Used with:
•
•
•
168-258M
Air Drill
Blockage Monitor
NTA3510 and NTA3010
CTA4000
ADI334 and ADI345
General Information
These instructions explain how to install the blockage monitor.
The blockage monitors work with the system monitor to alter the
operator when a seed-delivery hose is plugged. When a moni-
tored hose is plugged, the system sounds an alarm and identifies
the location of the plugged hose.
These instructions apply to:
168-256A
NTA3510 55-Row Blockage Monitor
168-257A
NTA3510 40-Row Blockage Monitor
168-260A
NTA3010 48-Row Blockage Monitor
168-261A
NTA3010 36-Row Blockage Monitor
168-267A
ADI345 75-Row Blockage Monitor
168-318A
CTA4000 80-Row Blockage Monitor
168-319A
CTA4000 65-Row Blockage Monitor
168-320A
CTA4000 50-Row Blockage Monitor
Manual Update
Refer to air drill cart operator’s manual for detailed information on
safely operating, adjusting, troubleshooting and maintaining the
blockage monitors. Refer to the parts manual for part identifica-
tion.
• ADC1150 Air Drill Cart Operator’s Manual. . . . . . .167-101M
• ADC1150 Air Drill Cart Parts Manual . . . . . . . . . . . 167-101P
• ADC2220 Air Drill Cart Operator’s Manual. . . . . . .167-073M
• ADC2220 Air Drill Cart Parts Manual . . . . . . . . . . . 167-073P
Before You Start
Starting on page 6 are detailed listings of parts included in the
blockage monitor packages. Use these lists to inventory parts re-
ceived.
Assembly Instructions
Module and Sensor Installation

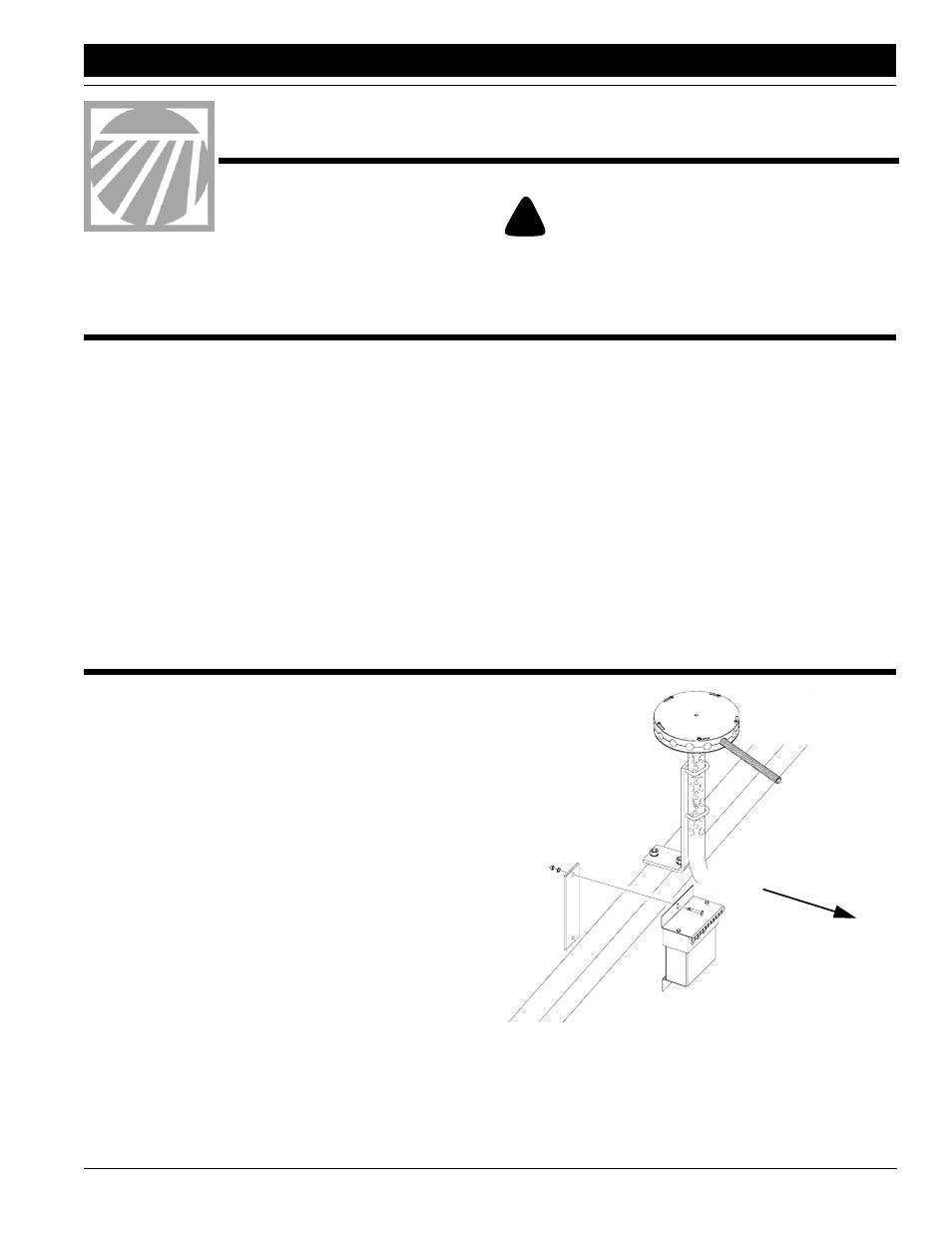

1.
Mount each module on rear frame
tube of implement near tower to be
monitored. Clamp modules to frame
so modules are to the inside of im-
plement and connector panels face
up.
When you see this symbol, the subsequent instructions and
warnings are serious - follow without exception. Your life and
the lives of others depend on it!
!!
18088
Towar
d Tractor
