Assembly 9
11/09/2006 500-643Q
Boom Lock Cable
Refer to Figure 3 and Figure 4
15. Unhook swivel bolt snap from stationary ring.
16. Re-hook swivel bolt snap to ring located in outer
boom lock plunger rod.
17. Carefully unfold sprayer. Consult Operator’s Man-
ual for procedure.
Outer Jump Nozzle
Refer to Figure 5
Note: This section applies to only the 3P-FF600
36-nozzles at 20in spacing, 3P-FF800
33-nozzles at 30in spacing, and 3P-FF900
37-nozzles at 30in spacing.
18. Locate the outer jump nozzle mounting bracket(s)
which is/are wire tied to the support frame(s).
19. Undo the wire tie and mount the bracket to the
frame gusset using the preexisting holes. Make
sure the nozzle is positioned as shown.

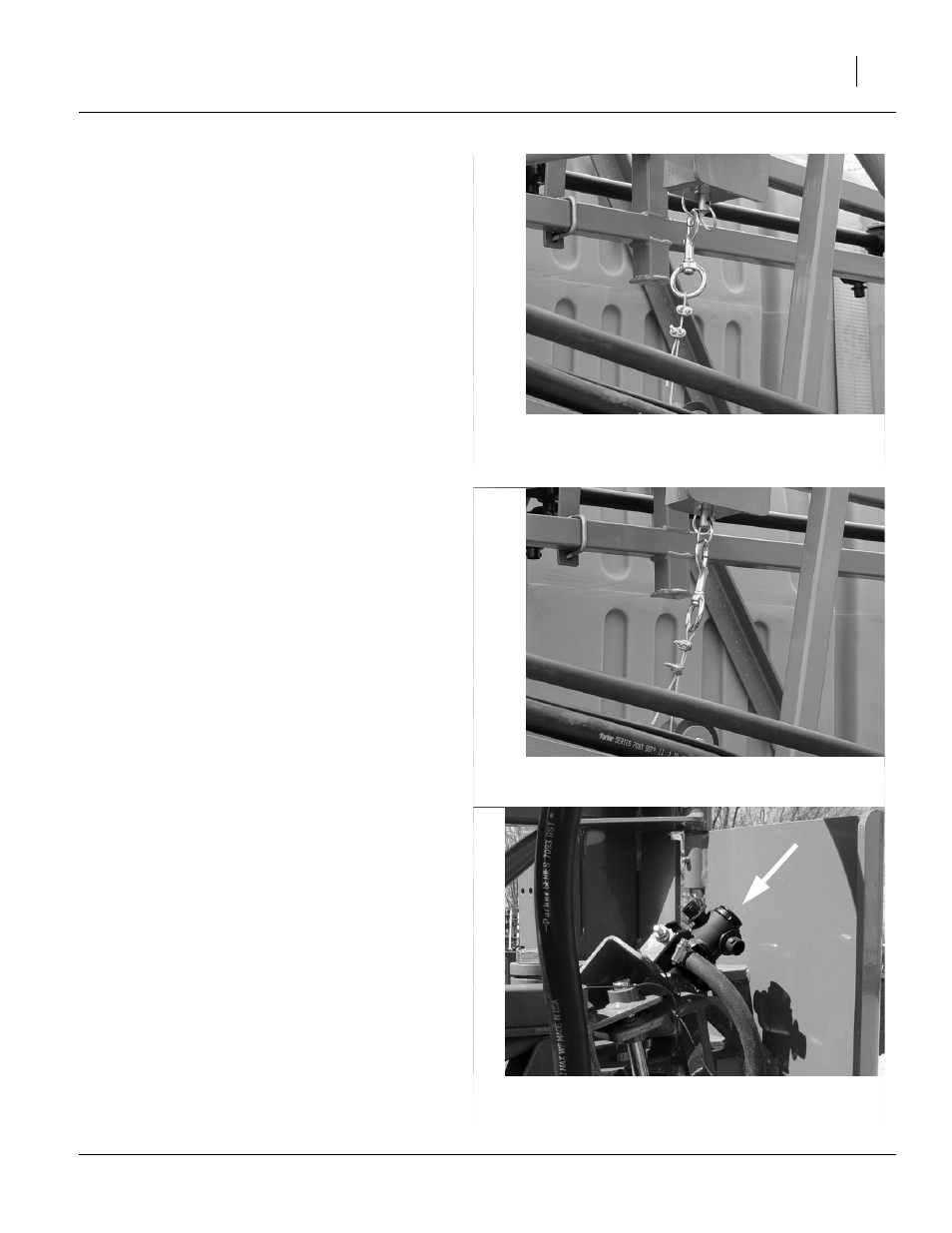

Figure 3
Swivel Bolt Snap (transport)
24164
Figure 4
Swivel Bolt Snap (operation)
24165
Figure 5
Outer Jump Nozzle
23239
