TSF660
500-644Q 11/7/2006
8
The following headings are step-by-step instruc-
tions for assembling the TSF660 Front Fold Boom
Sprayer. Begin with “Tools Required” and “Pre-
Assembly Checklist” to make sure you have all
necessary parts and equipment. Follow each step
to make the job as quick and safe as possible and
produce a properly working machine.
The TSF660 Front Fold Boom Sprayer is shipped
via flat bed truck. It is the dealer’s responsibility to
unload the new machine. Unload all equipment
before beginning assembly. Do not attempt any
assembly work while the TSF660 Front Fold
Boom Sprayer is on the truck.
Tools Required
Basic Hand Tools
Pre-Assembly Checklist
1. Before assembling, read and understand “Im-
portant Safety Information” beginning on
page 1.
2. Have at least two people on hand while as-
sembling.
3. Make sure assembly area is level and free of
obstructions (preferably an open concrete ar-
ea).
4. Have all major components.
5. Have all fasteners and pins shipped with
TSF660 Front Fold Boom Sprayer.
IMPORTANT: If a pre-assembled part or fas-
tener is temporarily removed, remember
where it goes. Keep the parts separated.
6. Have a copy of the parts manual on hand. If
unsure of proper placement or use of any part
or fastener, refer to the parts manual.
7. Check that all working parts are moving free-
ly, bolts are tight, and cotter pins are spread.
8. Check for proper tension and alignment on all
drive chains.
9. Check that all safety decals and reflectors are
located correctly and legible. Replace if im-
properly located or damaged. Refer to “Safety
Decals” in the operator’s manual.
10. Inflate tires to recommended pressure as list-
ed on the “Tire Inflation Chart,” page 14.
Tighten wheel bolts as specified on “Torque
Values Chart,” page 15.

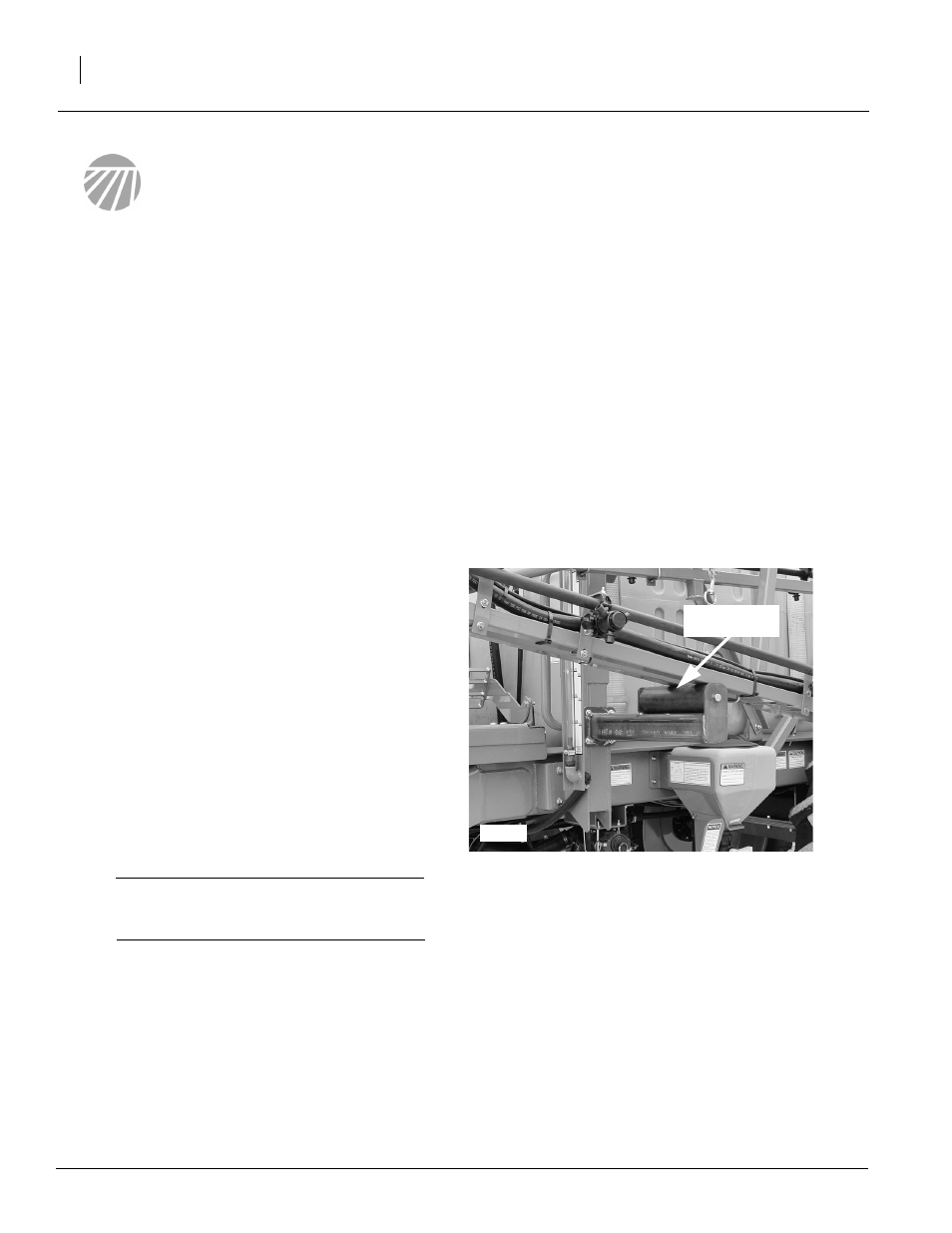

Shipping Straps
Refer to Figure 1
1. Unbolt and remove shipping strap from frame.
2. Remove transport bumper, bolt, and nut from
shipping strap.
24162
Transport
Bumper
Figure 1
Shipping Strap
Assembly
