12 3030-UT5052 Great Plains Manufacturing, Inc.
576-026Q 12/31/2013

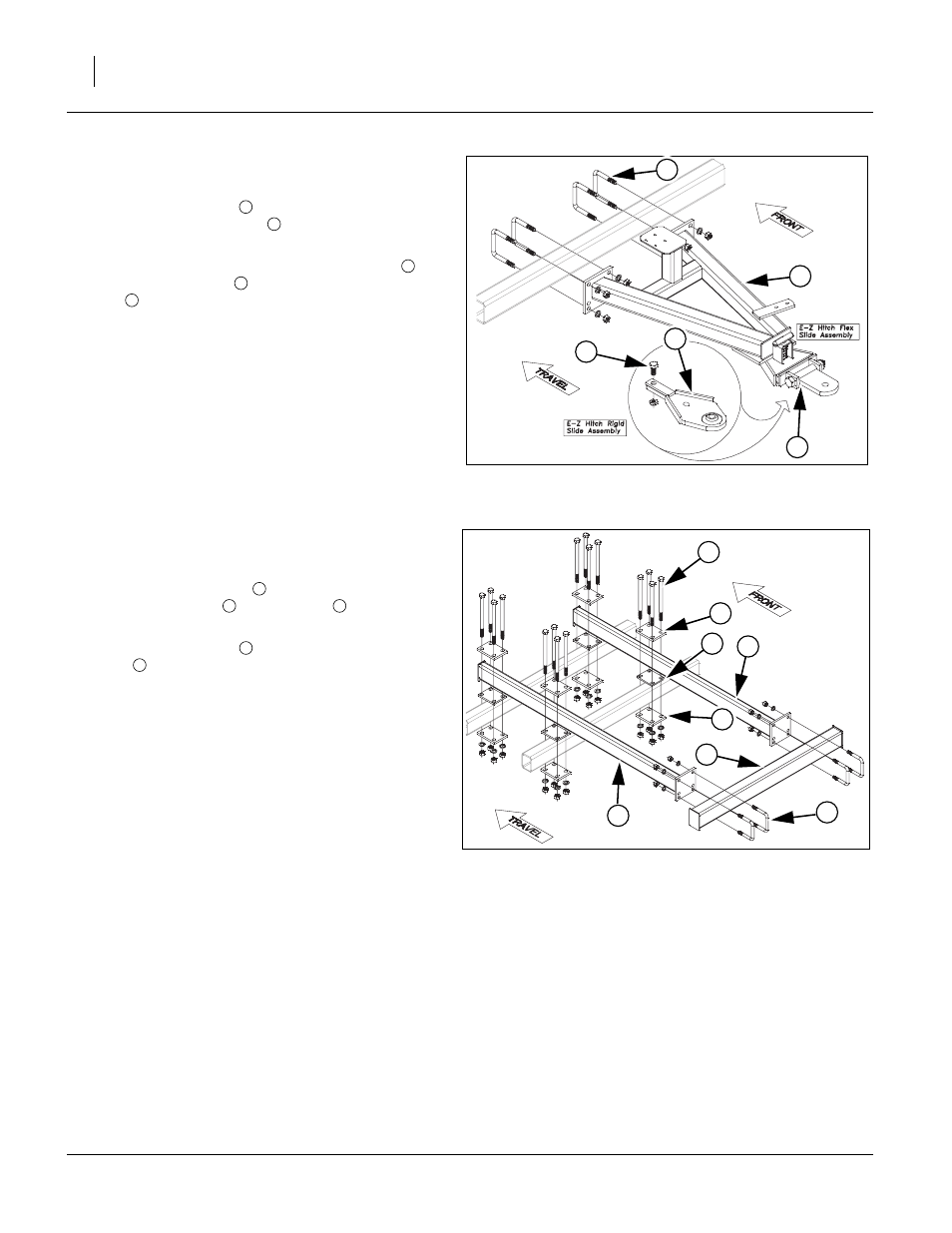

A-Frame Hitch (optional)
Refer to Figure 9
31. Attach a-frame hitch
to rear of center frame with 5/
8 x 4 1/32 x 4 1/4 u-bolts , 5/8 lock washers and 5/8
nuts.
32. Hitch will have either the flex slide assembly or the
rigid slide assembly . There will be a 3/4 x 1 1/2 hex
bolt and 3/4 jam nut in front hole of assembly to
keep the slide assembly from sliding clear out.
33. Tighten all bolts to specs, See “Torque Values
Chart” on page 13.
Heavy Duty Hitch Extension (optional)
Refer to Figure 10
34. Attach extension tubes
to center frame with top
and bottom plates , middle plate , secure with 3/
4 x 10 hex bolts, 3/4 lock washers and 3/4 nuts.
35. Attach 51” cross bar with 5/8 x 4 1/32 x 4 1/4 u-
bolts , 5/8 lock washers and 5/8 nuts.
36. Tighten all bolts to specs, See “Torque Values
Chart” on page 13.
Completing Setup
37. The SMV sign will be shipped with cardboard.
Remove cardboard before transporting the
machine.
38. Once the options are installed, fold the Ultra-Till to
check for clearance and interferences. Slowly fold
Ultra-Till while watching that hoses and wiring har-
nesses do not become pinched or kinked while
watching for interferences.
Note: Double check that all bolts are tightened to specs,
See “Torque Values Chart” on page 13.Consult
the operating instructions, “Operator’s Manual”,
for the first time field adjustments before going to
the field.
3
1
Figure 9
A-Frame Hitch
43193
5
4
2
1
2
3
4
5
Figure 10
Heavy Duty Hitch Extension
43194
5
4
3
6
2
2
1
1
1
2 3
5
6
