Great Plains Manufacturing, Inc. Assembly 9
12/31/2013 576-026Q
Rolling Harrow
Note: See layout section for proper location of rolling
harrow assemblies. The rolling harrow assemblies
will be marked on the rolling spike tube with
part number. The mounting arms and slide bracket
mounts
will be shipped pre-assembled in cor-
rect locations on machine. The rolling harrow will
be shipped pre-assembled on pallet with ball joint
brackets assembled. Remove wing fold pins and
unfold wings to install wing rolling harrow assm-
blies.
Refer to Figure 6
21. Remove 1 1/8 x 4 hex bolts
, from slide brackets
. Loosen u-bolts on the ball joint brackets &
and set the X dimension on the ball joint bracket
shown in layout section. Leave the ball joint
bracket loose for now, as it will have to be slid to
location when mounting rolling harrow assemblies
.
22. Carefully move rolling harrow assemblies to
proper location and lower machine down until holes
are properly aligned (slide ball joint bracket as
needed), in bracket mounts .
23. Re-install the 1 1/8 x 4 hex bolts , secure with 1 1/8
lock washer and 1 1/8 nut.
24. Repeat same procedure for all rolling harrow assem-
blies .
25. Tightened all bolts to specs, See “Torque Values
Chart” on page 13.
6
1
2
1 3 4
5
4
5
6
6
5
1
2
6

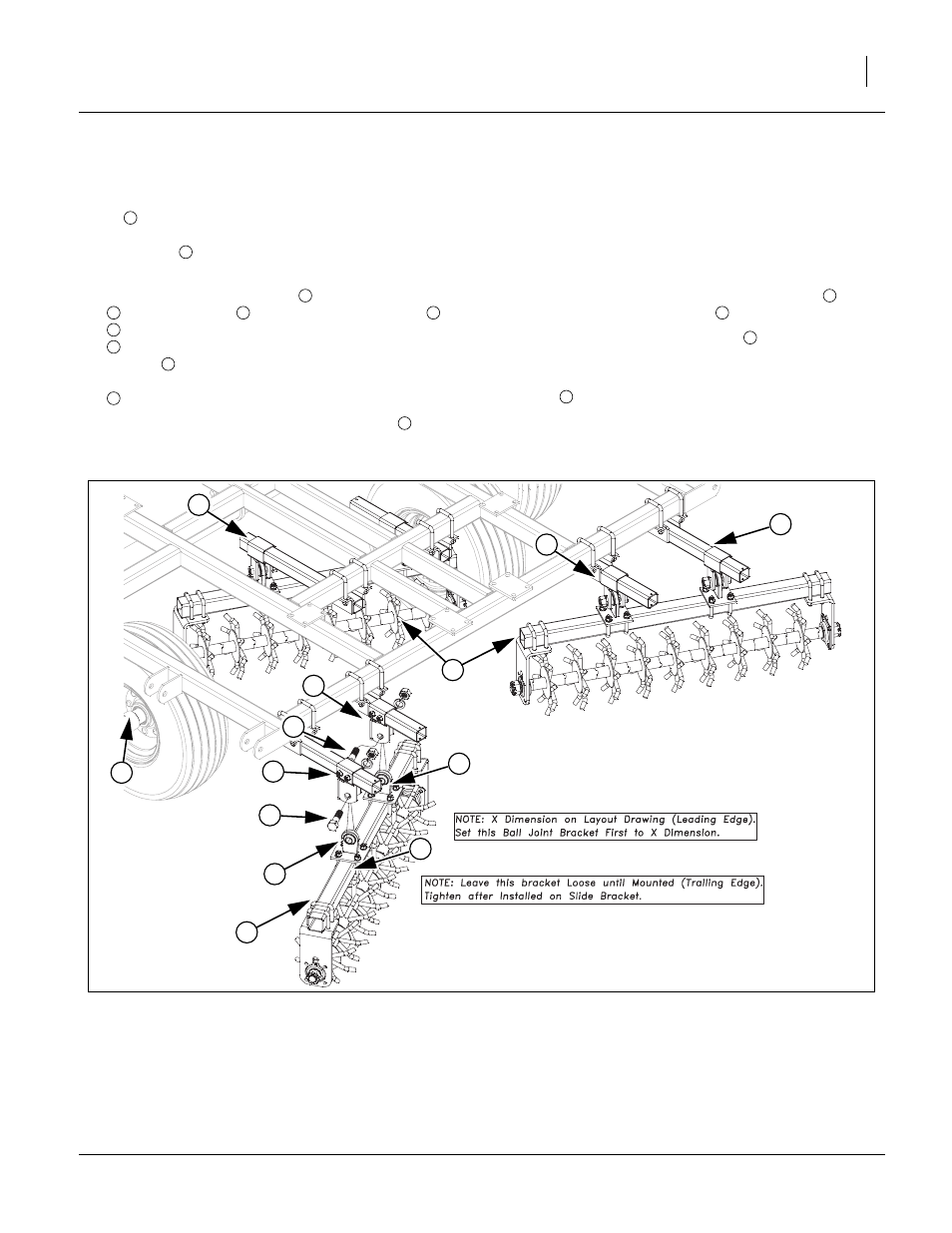

Figure 6
Rolling Harrow 43190
5
2
6
3
1
1
2
3
6
1
1
1
4
