4/8/99 2-1
175-083M-A
END WHEEL TONGUE & PULL BARS ASSEMBLY INSTRUCTIONS
1. Remove the 5/8" x 3 1/2" x 5" long u-bolts (#17), 5/8"
lockwashers (#19), and 5/8" nuts (#18) that hold the open-
er channel to the drill frame for shipping. Remove 1/2" nut
(#8) and 1/2" lockwasher (#7) from the front of the opener
channel leaving the 1/2" x 3 1/2" x 4 3/4" long u-bolt (#6)
in place.
2. Assemble the rear of right and left pull bars (#1), {left
hand shown} to the drill. First use 1/2" x 1" long carriage
bolt (#2) and whiz nut (#3) to bolt the bottom leg of pull bar
to the bottom leg of the opener channel.
3. Lift pull bar (#1) up and bolt top leg using 1/2" x 1 1/4"
long whiz bolt (#4) and whiz nut (#5).
4. Attach inside leg of pull bar with 1/2" x 3 1/2" x 4 3/4" long
u-bolt (#6), 1/2" lock washers (#7), and 1/2" hex nut (#8).
5. Attach outside leg of pull bar with 1/2" x 1 1/2" whiz
bolts (#9), and whiz nuts (#10).
NOTE: DO NOT tighten hardware until final assembly.
6. Lay the tongue (#11) between the pull bars (#1) and
bolt to the drill with 5/8" x 3 17/32" x uneven leg u-bolts
(#12), 5/8" lock washers (#13), and 5/8" hex nuts (#14).
7. Assemble the front end of pull bars to the tongue
(#11) with 1/2" x 1 1/4" long whiz bolts (#15), and whiz
nuts (#16).
8. Tighten ALL mounting hardware when assembly is
completed.

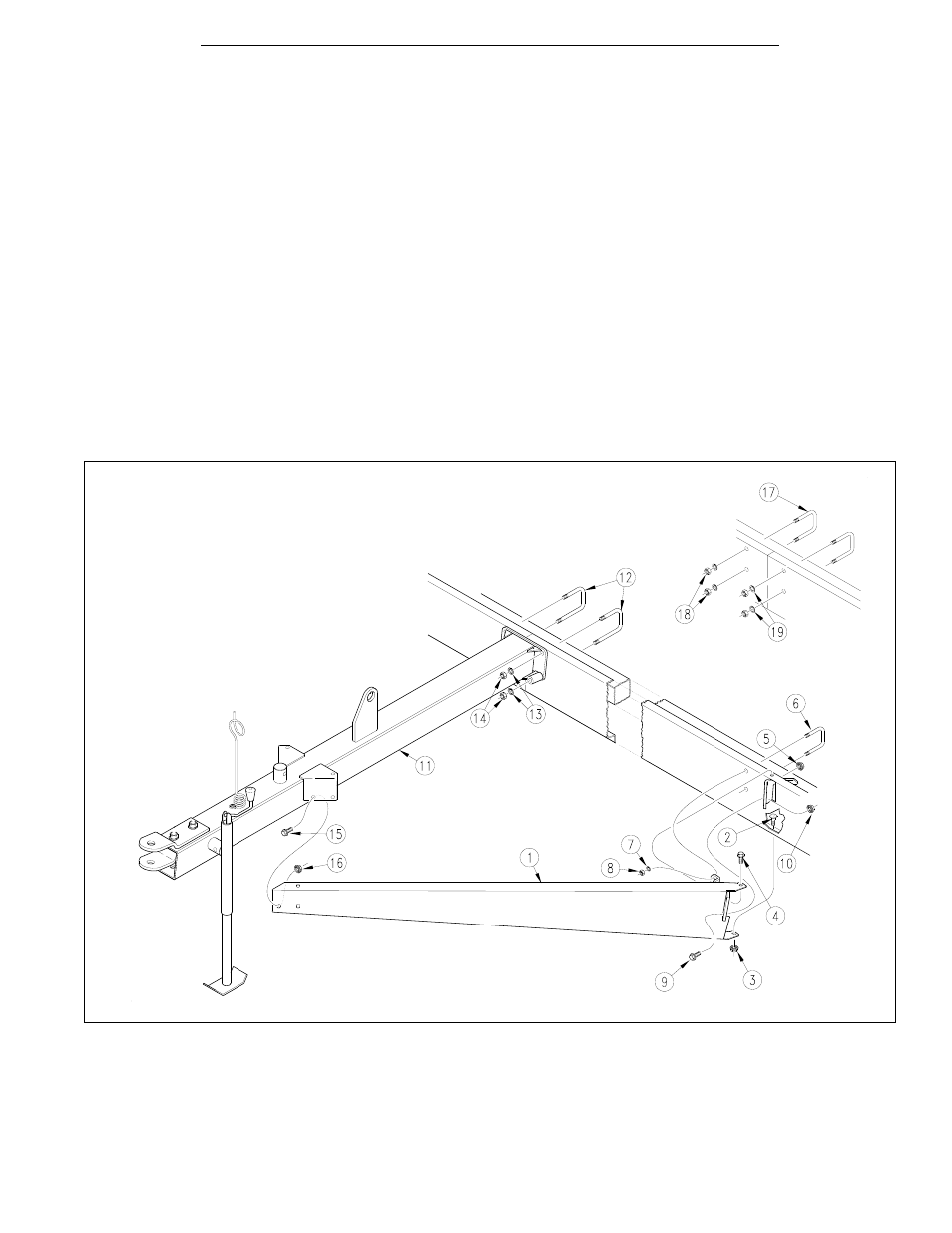

Tongue & Pull Bar Assembly Drawing
Fig. 1
For the following assembly instructions, refer to Fig. 1 below.
