10 PT1230 Folding Pull-Type Planter 401-072M 10/14/08
Great Plains Mfg., Inc.
Row Unit Setup and Adjustment
The meter clutch and meter-input shaft must be aligned.
Misalignment will cause meter malfunction and excessive
meter-housing wear. Periodically check vertical and hori-
zontal alignment of meter clutch and meter-input shaft.
Refer to Figure 2-4.
1. Latch hopper onto hopper support.
2. Check that roll pin (1) in end of the meter-input shaft is
centered. When centered, equal amounts of the roll
pin will protrude from both sides of the shaft.
3. Rotate meter-input shaft so that roll pin is vertical.
4. Rotate the drive coupler (2) on meter clutch so that the
slots are vertical.
5. Release meter clutch to engage meter-input shaft.
6. If shafts are aligned vertically, the drive coupler will en-
gage with meter-input shaft freely and the roll pin will
extend equally on each side of the drive coupler. Dis-
engage the clutch and repeat steps, checking for hor-
izontal alignment.

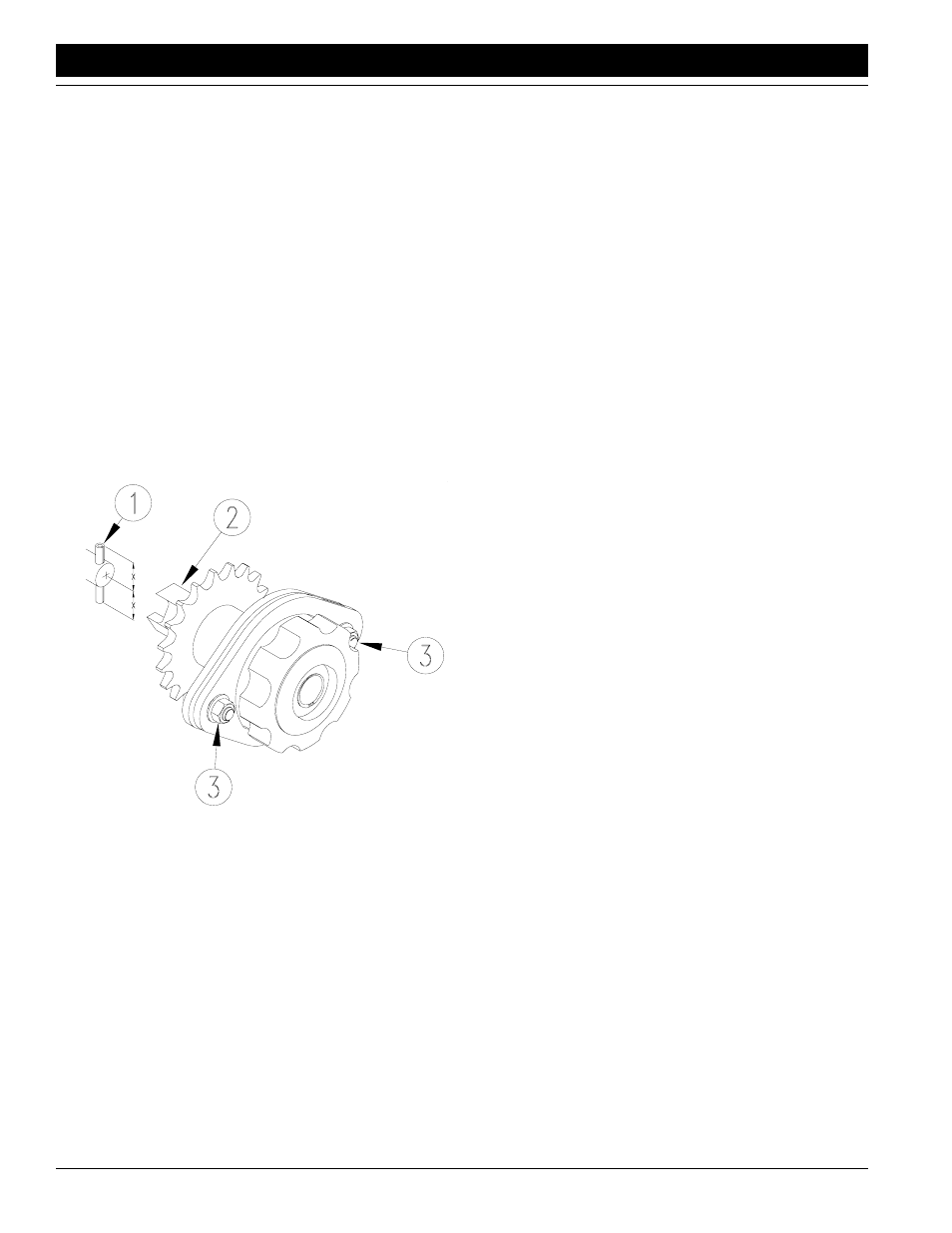

17891
Figure 2-4
Vertical Alignment
7. If drive coupler does not freely engage meter-input
shaft vertically or horizontally, loosen 5/16-inch nuts
(3) shown in Figure 2-4. Engage meter clutch. Align
meter clutch with meter-input shaft.
8. Tighten 5/16-inch nuts to torque values listed on
Torque Values Chart, “Appendix,” page 11.
