8
Section 1 Assembly
PT1230 Folding Pull-Type Planter 401-072M 10/14/08
Great Plains Mfg., Inc.
d. Use worm clamps to secure hose to the squeeze
pump inlet (1) and T-fitting.

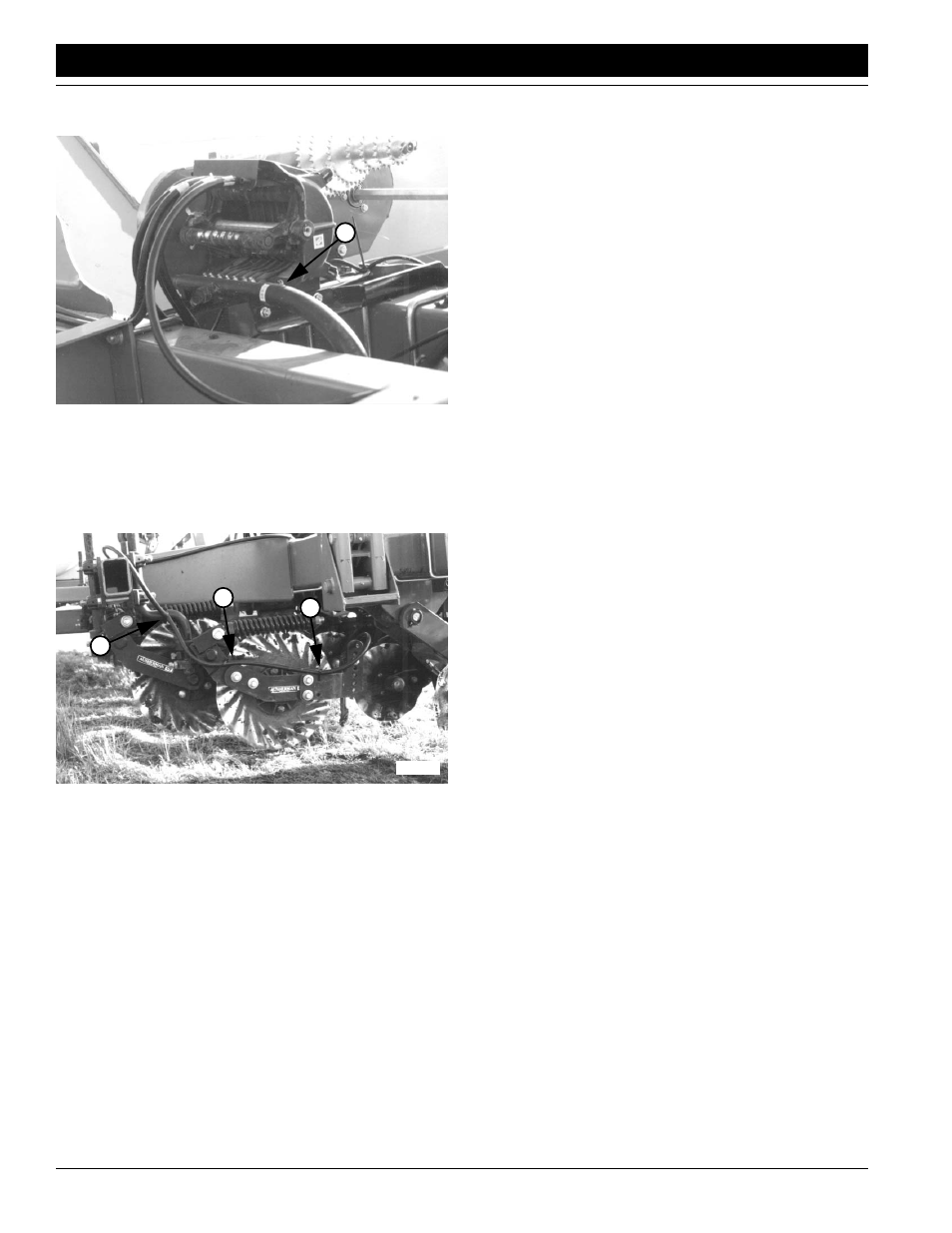

Figure 1-20
Squeeze Pumps Plumped
16894
1
11. Plumb coulters. From the roll of 3/8-inch hose cut hos-
es to connect squeeze pumps and coulters. Hose
lengths will vary with coulter positioning. Use hose
ties (1) to secure hoses to coulter arms.
Figure 1-21
Plumb Coulters
16890
1
1
1
12. Use worm clamps to secure 3/8-inch hoses to
squeeze-pump outlets. Use hose ties to secure hoses
to planter frame. Make sure hoses will not be pinched
or snagged during planter operation.
