8
Section 1 Assembly
Models ADI334 and ADI345 Air Drill Implement 160-243M 4/7/04
Great Plains Mfg., Inc.

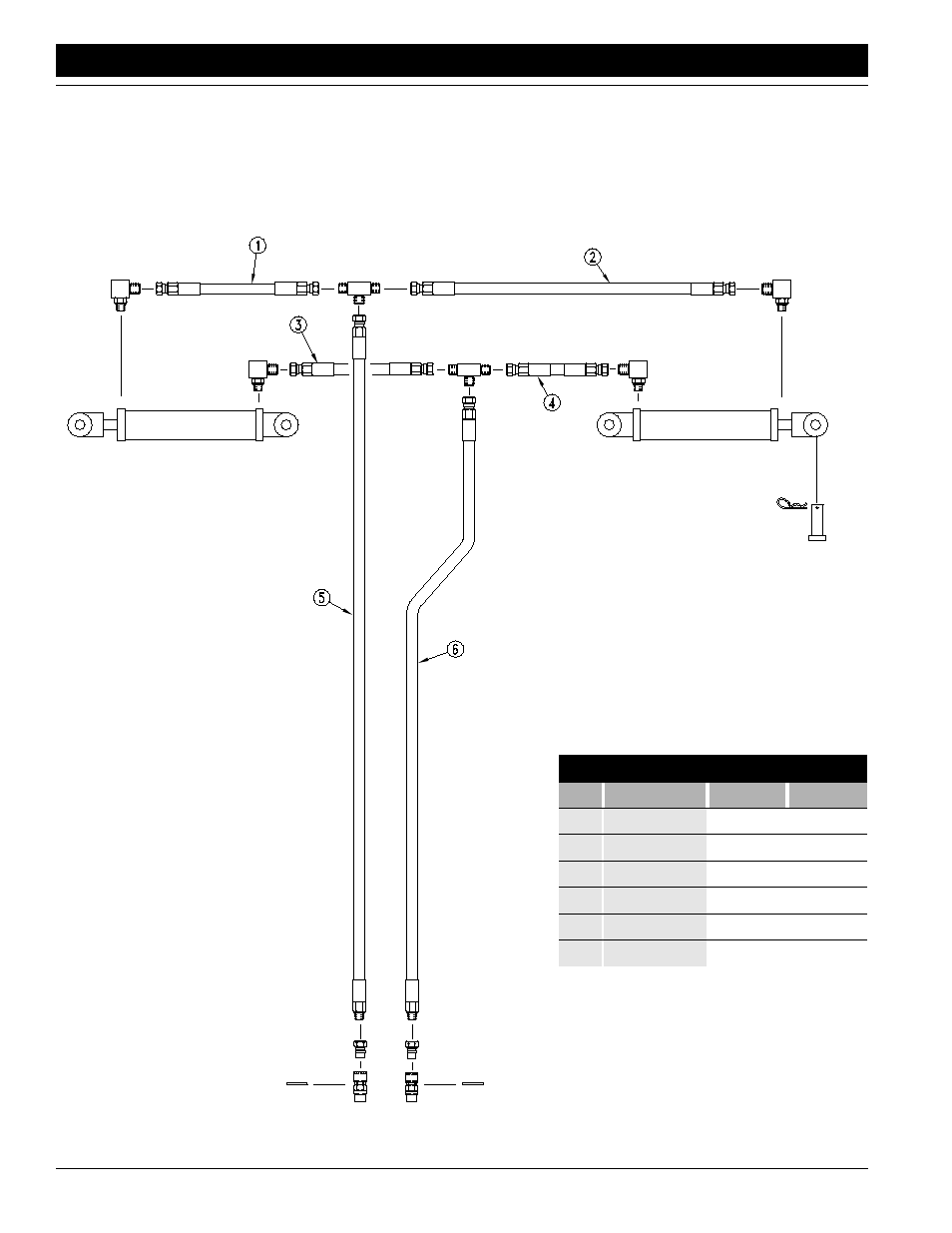

34-Foot Folding Hydraulics
Hydraulic Hose Sizes
Item Part Number I.D. Length
1 811-240C 3/8 75
2 811-240C 3/8 75
3 811-241C 3/8 21
4 811-241C 3/8 21
5 811-239C 3/8 75
6 811-239C 3/8 75 Figure 1-6
45-Foot Folding Hydraulics
14479
cuit.
Install hydraulic hoses. Refer to Figure 1-6 or Figure 1-7.
Note the hose lengths and be sure to use the correct length
hose in each location. Start with the longest hose and work
to the shortest.
When installing, route hoses through the hose clips on the
openers. See Figure 1-3. Be sure hoses are not twisted
and will not get pinched when the implement is raised, low-
ered, folded or unfolded. Do not let the hoses rub on sharp
edges, and be sure there is enough slack for down-flex.
NOTE: The SAE O-ring and JIC 37˚ flare-type hose con-
nections do not require sealant for reconnecting. They do
