Installation Instructions
195-252M
4000-3S
Point-Row Option
• 4000-3S
General Information
Assembly Instructions
When you see this symbol, the subsequent instructions and
warnings are serious - follow without exception. Your life and
the lives of others depend on it!
!!
These instructions explain how to install the Point-Row
Option. The point-row option allows you to raise and
lower openers on each drill section independently.
These instructions apply to:
195-251A
4000-3S Point Row Assy.
195-261A
4000-3S Point Row Assy. 2001
Instructions apply to 3S-4000 drills built before Decem-
ber 31, 2004 for S/N YY1310-. These are the last of
single large inline hydraulic filter.
Definitions
Right-hand and left-hand as used in this manual are de-
termined by facing the direction the drill will travel while
in use.
Hydraulic Assembly

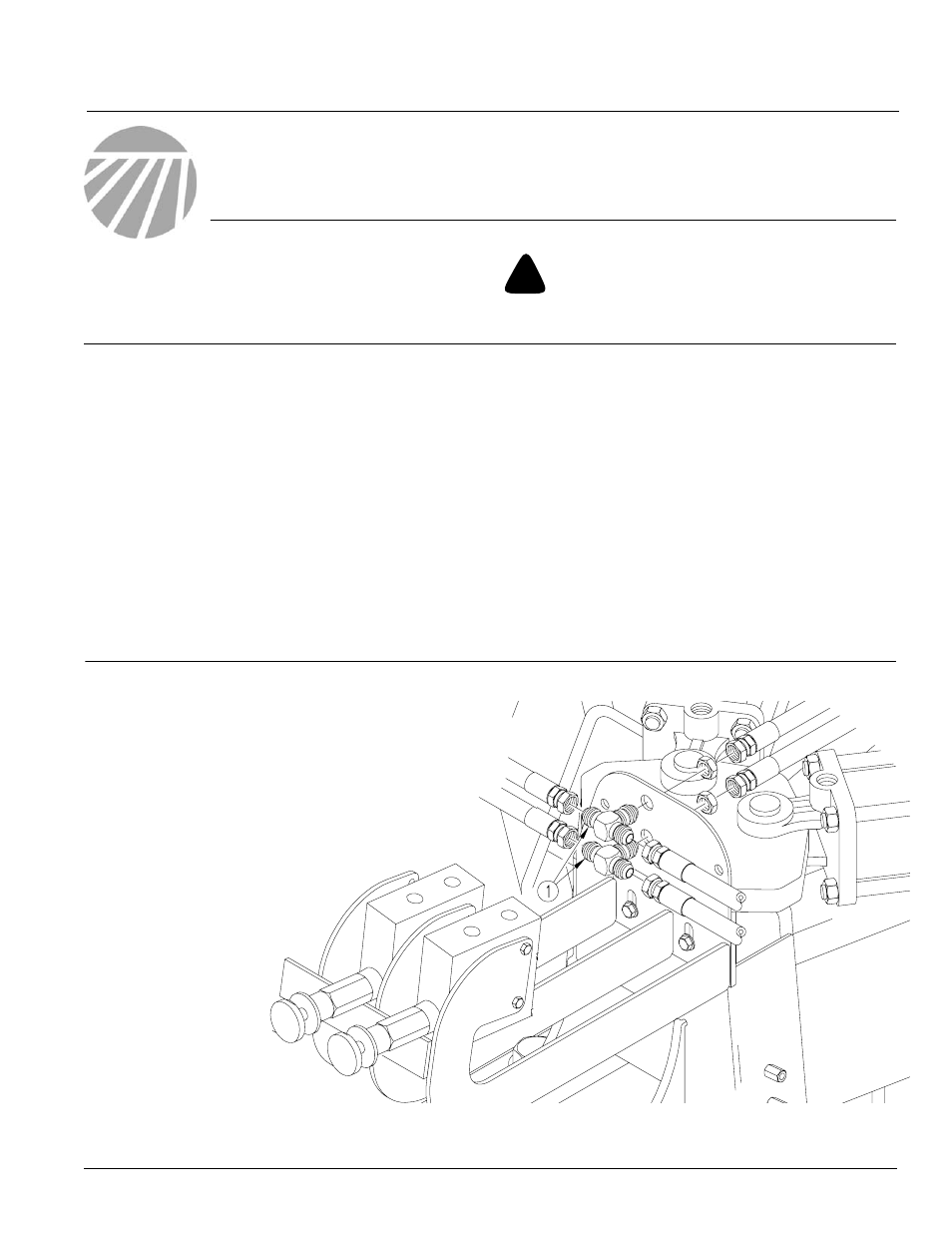

Figure 1
17083
2/17/2005
Manual Information
Refer to the 4000-3S operator’s manual for de-
tailed information on safely operating, adjusting,
troubleshooting and maintaining the Point-Row
Option. Refer to the parts manual for part
identification.
195-242M
4000-3S Operator’s Manual
195-242P
4000-3S Parts Manual
Before You Start
Pages 8 and 9 are a detailed listing of parts in-
cluded in the Point-Row Option package. Use this
list to inventory parts received.
Refer to Figure 1
1.
Unscrew hoses from tee fittings (1) on mount-
ing bracket. Remove and discard tee fittings.
