175-196M 10/24/2005
Great Plains Mfg., Inc.
1300 Fertilizer Assembly Upgrade 2
23408

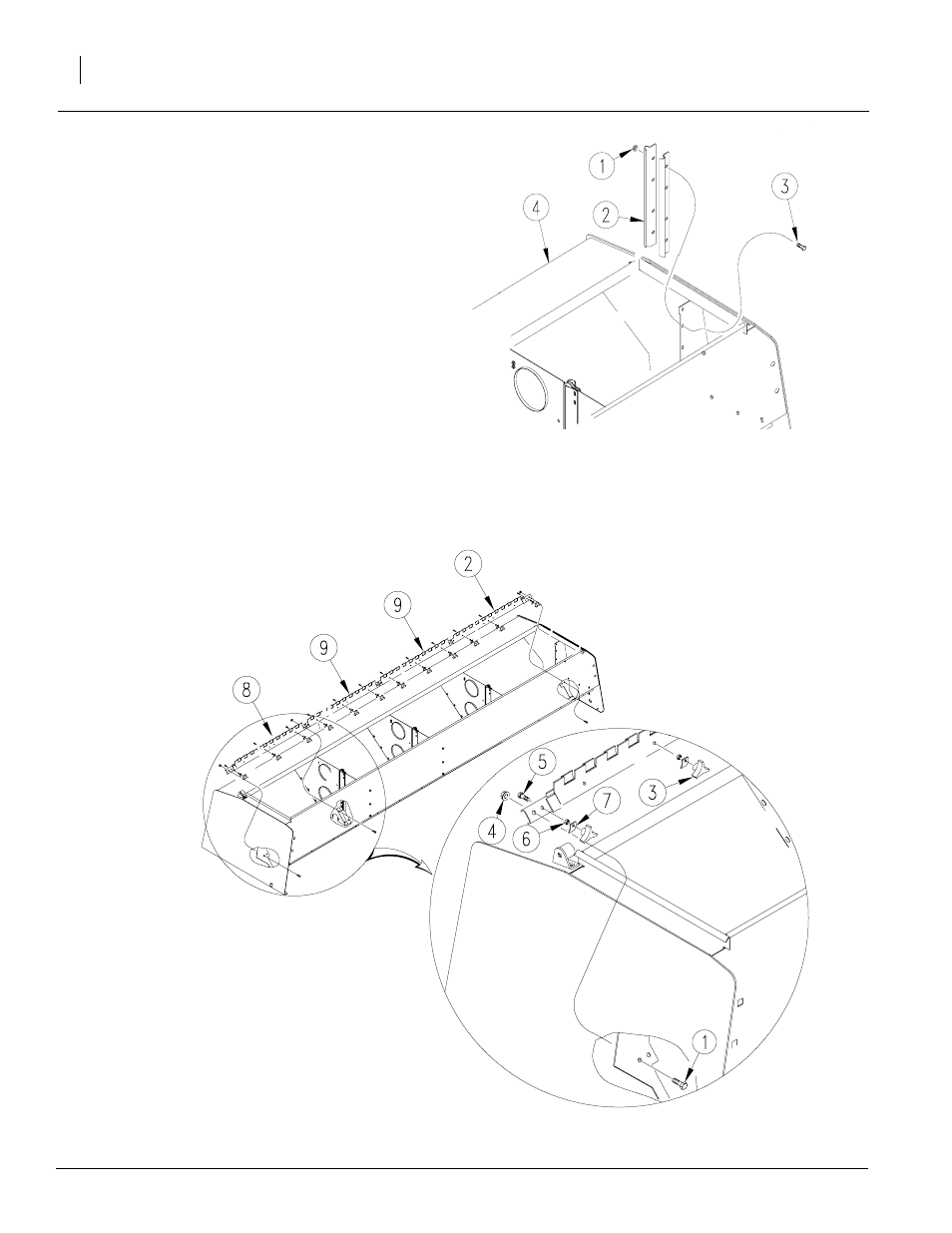

Figure 3
End Mounted Divider Clip
23412
Refer to Figure 3
6. Secure two end mounted divider clips (2) to each
end of the box (4) using 5/16-18 x 3/4 bolts (3) and
5/16-18 hex nuts (1). Leave bolts loose.
Refer to Figure 4
7. Attach knobs (3) and retaining clips (7) to bottom di-
vider brackets (8, 9, and 2) using 1/4-20 x 1 bolts (5)
and 1/4-20 hex lock nuts (6).
8. Place left-hand bottom divider bracket (8) in box on
left-hand side of drill. Secure divider bracket (8) to par-
tition and box using 3/8-16 x 1 bolts (1) and 3/8-16
lock nuts (4).
9. Place center bottom divider brackets (9) in box in cen-
ter of drill. Secure divider brackets (9) to partitions us-
ing 3/8-16 x 1 bolts (1) and 3/8-16 lock nuts (4).
10. Place right-hand bottom divider bracket (2) in box in
center of drill. Secure divider bracket (2) to partition
and box using 3/8-16 x 1 bolts (1) and 3/8-16 lock nuts
(4).
Figure 4
Divider Brackets
