23 Leveling the Drill
Box Alignment Adjustments
Pull Bar Adjustments
Refer to Figure 10
With the drill lowered to the ground and completely
unfolded the tongue slide on the tongue should be
back against the stop on the tongue. Adjust the pull
bars length so drill boxes are in line with one anoth-
er and parallel to the back edge of the main frame.
Drill Adjustments
Refer to Figure 11
Put the transport pins in storage position.
Slowly lower the drill until it is on the ground and the
main frame top slide cylinder is fully extended. Pull
the drill forward a few feet to make sure that the
transport and the gauge wheel tires have equal firm
contact with the soil.
Refer to Figure 12
Unfold the drill on a level seedbed typical to your
soil conditions.
At the top of both vertical tubes on the transport
frame is a threaded stud and jam nut. Make sure
both studs have approximately the same length of
threads extending above the jam nut (approximate-
ly 3”) for most planting conditions. Adjustments may
be required.
11284
10671
10672

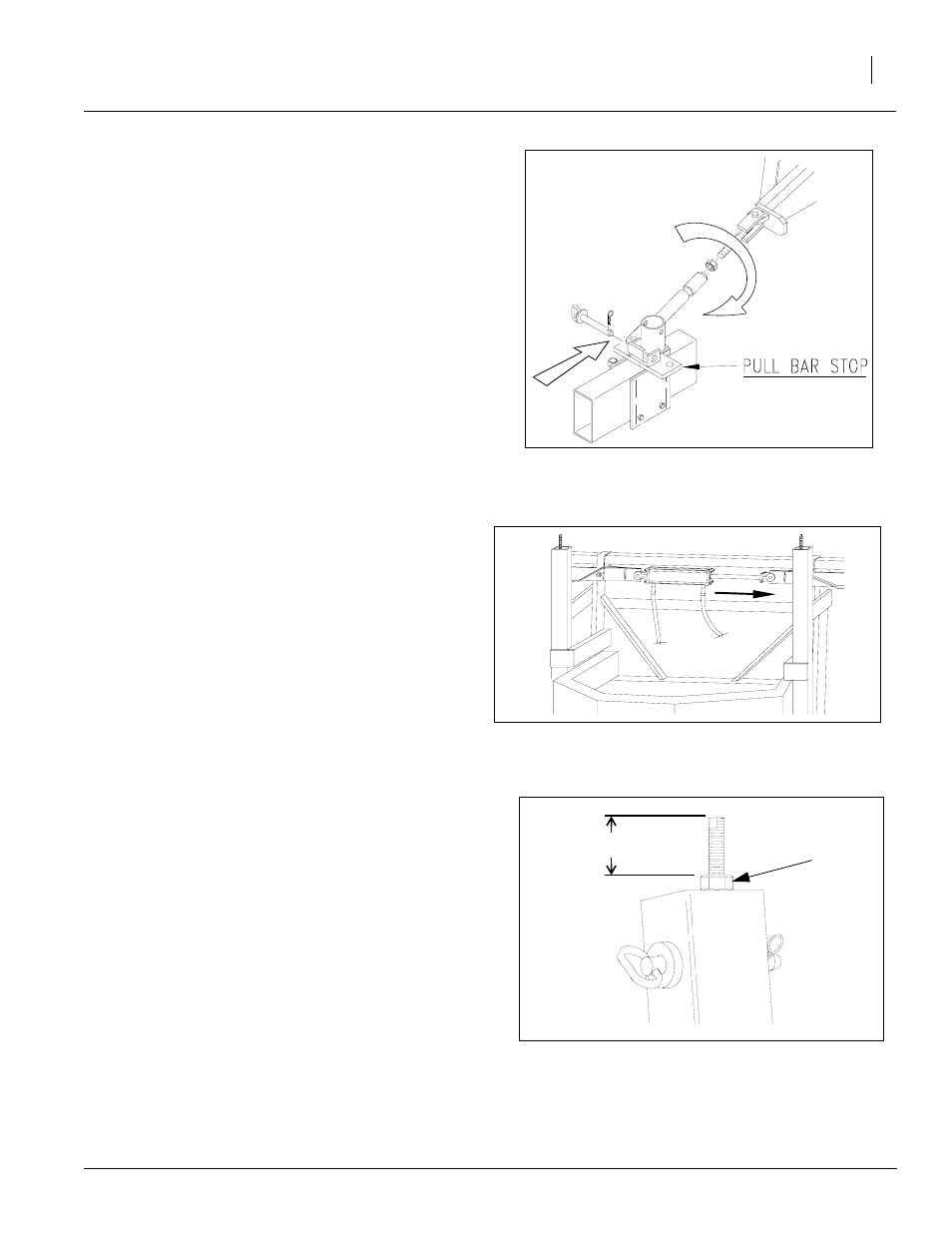

Figure 10
Pull Bar Adjustment
Figure 11
Top Slide Cylinder
Figure 12
Threaded Stud
Jam Nut
3”
Approx.
