4.2 Tines
The Hydraulic Reset Flatliner is fitted with
with Pro-Lift tines and points. The tines are
arranged in a ‘V‘ frame to give lower draft
requirements and the ability to work progres-
sively deeper. Each tine is held hydraulically
in work allowing a fast, responsive trip and
re-setting action on the move.
Different wings are available to suit the soil
conditions and optimise the performance
of the machine.
Tine depth is achieved by moving the tines
up and down in the adjustable clamps.

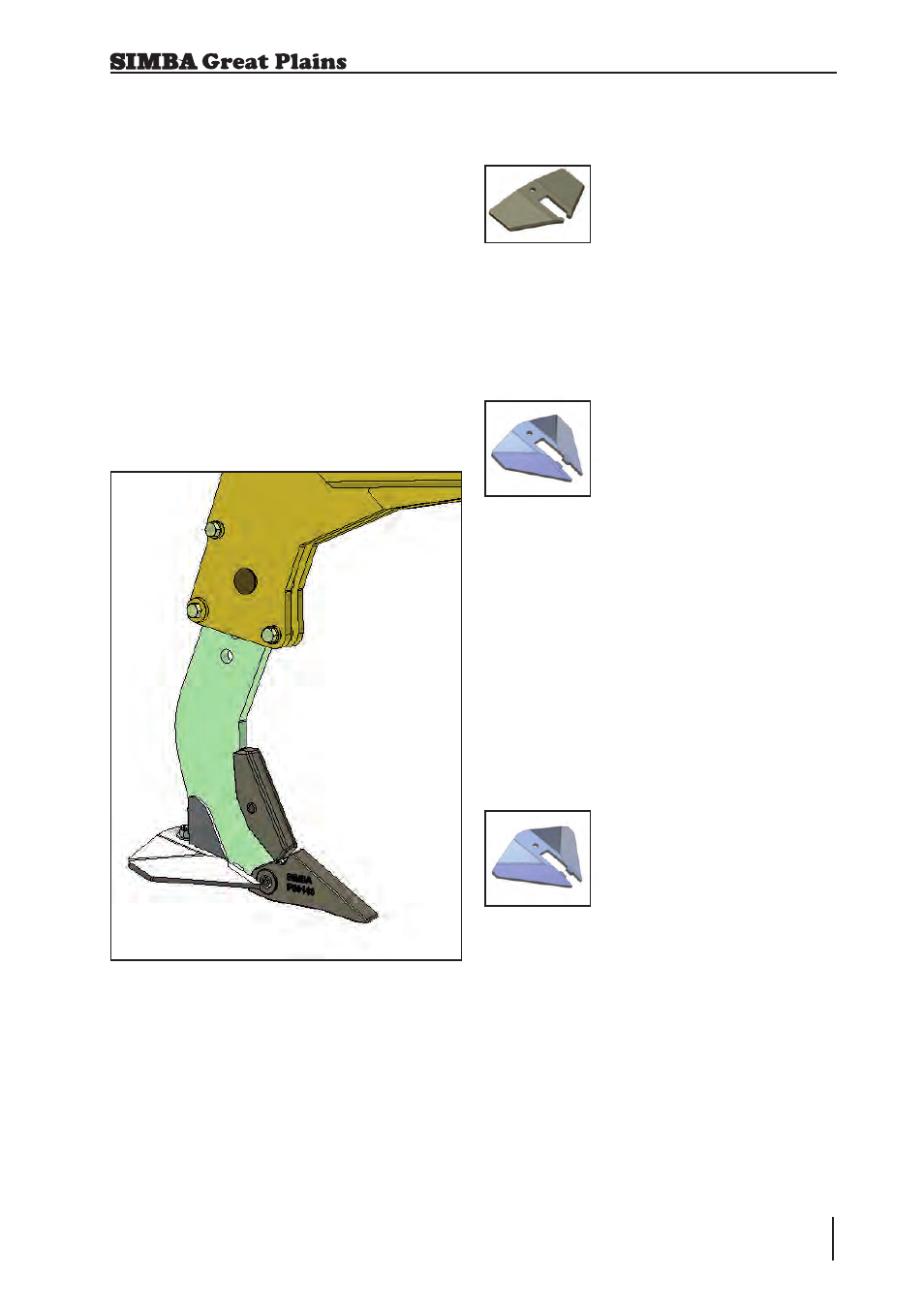

Fig. 4.02: Trip Reset Tine
Standard Wing
P09060
 Maximum soil disturbance with mini-
mum draft requirement under normal
circumstances.
 Wing angle reduces wear rates on leg.
Extra Lift Wing
P10392
 Increased lift height and rake angle
creates greater soil disturbance on
all soil types especially in moister
conditions.
 Lower relative distance between
edge of wing and point reduces draft
requirement.
 Has ability to work at lower depths with
no decrease in soil disturbance or risk
of smear.
Extra Wide Wing
P10411
 Improved lateral shatter in moist/wet
soils, or non-cohesive soils.
 Ideal for deep vegetable applications
under light/medium soils.
