Section 1 Assembly
ADC1150 Air Drill Cart 167-101Q 4/7/04
Great Plains Mfg., Inc.

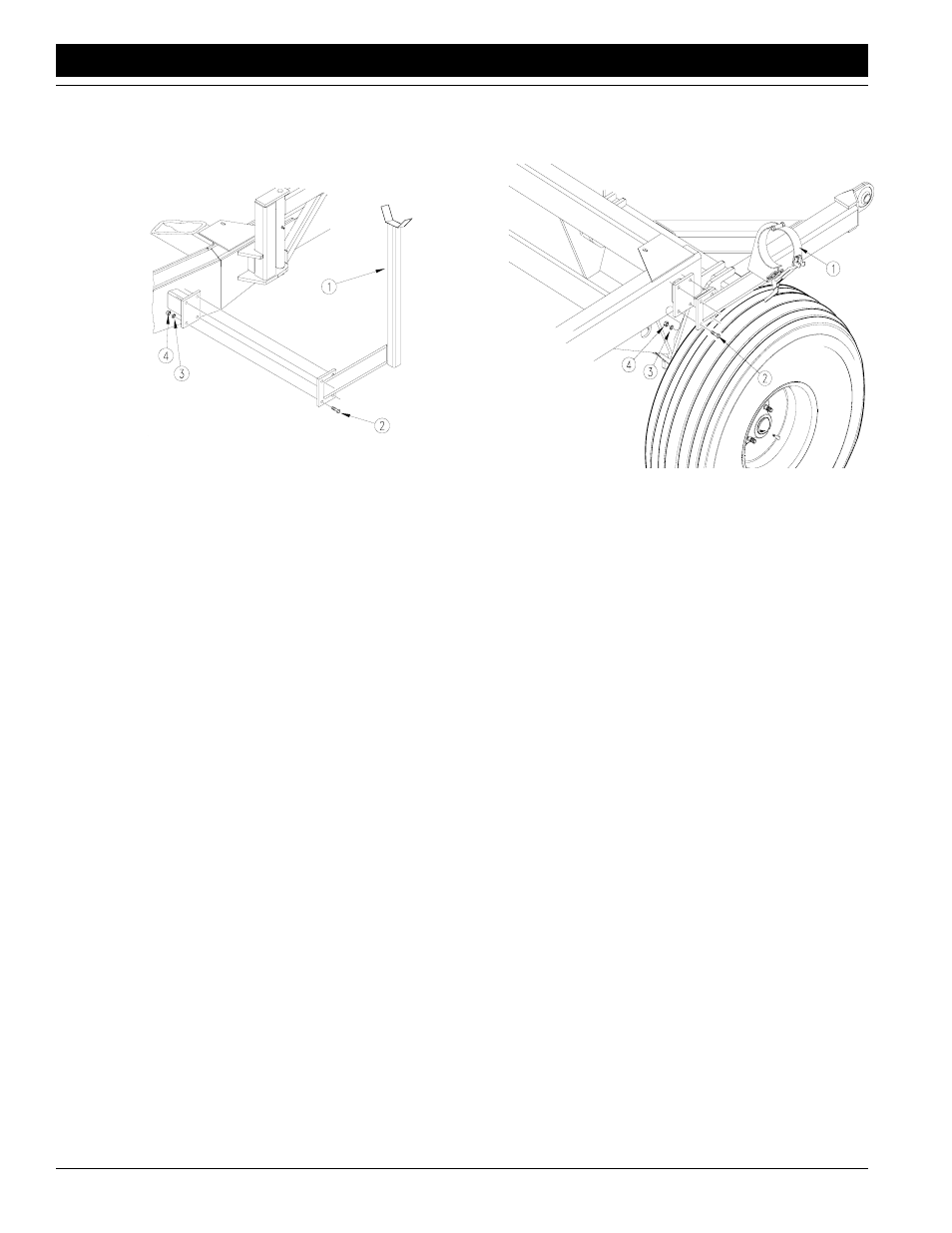

3. Bolt the front support arm (1) to the cart as shown in
Figure 1-5 using 1/2-by-1 1/2-inch bolts (2), lock
washers (3) and nuts (4). Rest the spout end of the au-
ger in the front support arm.
16156
Figure 1-5
Front Support Arm
4. Bolt the rear storage arm (1) to the cart as shown in
Figure 1-6 using 1/2-by-1 1/2-inch bolts (2), washers
(3) and nuts (4). Clamp the auger to the rear storage
arm.
16158
Figure 1-6
Rear Storage Arm
