W HEATHEART - W HEEL K IT 2. A SSEMBLY
BH/GHR A UGERS 2.1. A SSEMBLY P ROCEDURE
30736 R1 7
2. Assembly
Note: GHR Series only: Ensure that frame stabilizer brackets are installed, refer to
operator manual.
2.1. ASSEMBLY PROCEDURE
1. Bolt the wheel jack assembly to the castor wheel assembly using four 7/16" x
1-1/4" bolts and locknuts. The sandwich plate connects under the two castor
plates. Tighten and secure. See Figure 2.1.

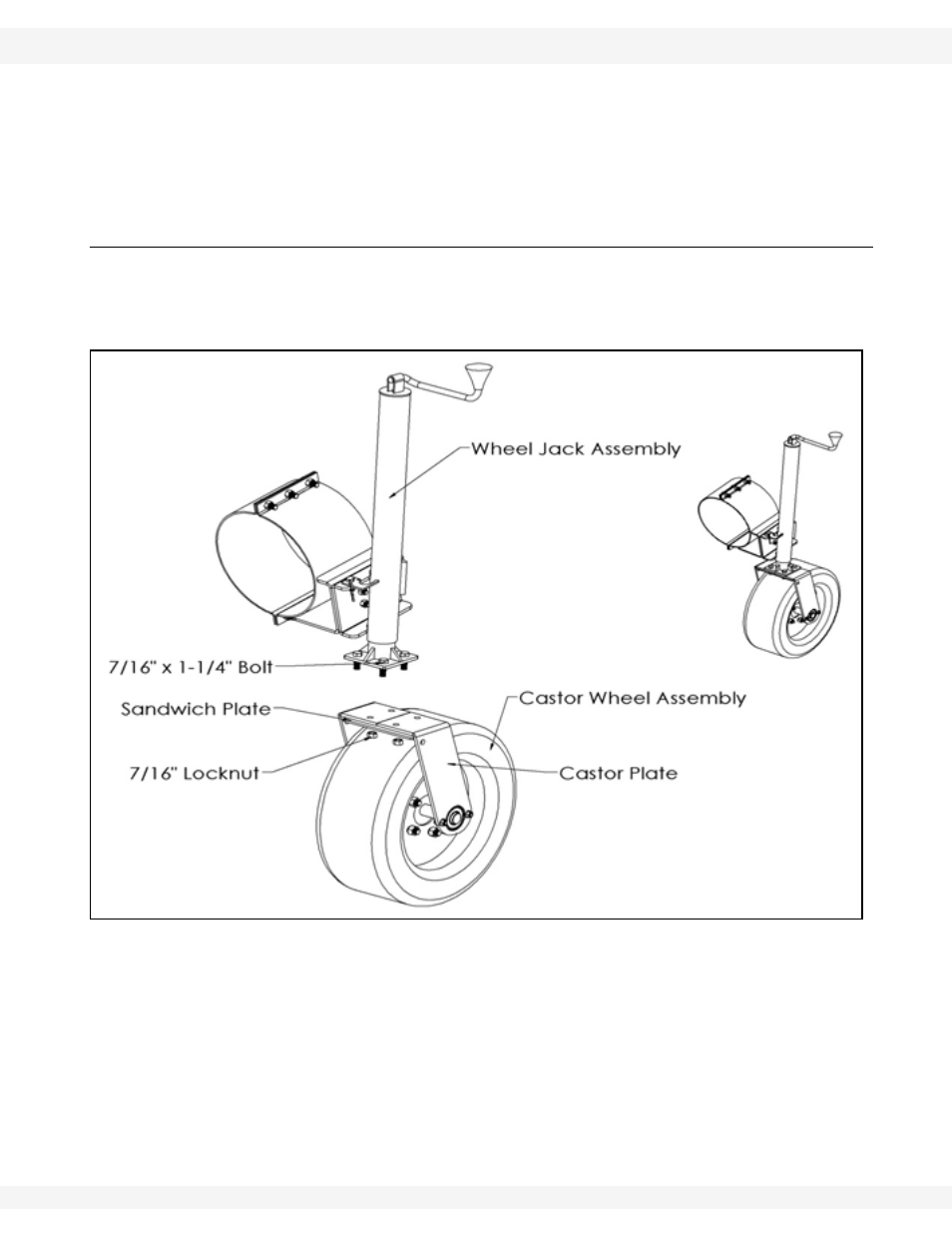

Figure 2.1
2. Attach transport handle to castor plates. Use two 7/16" x 1-1/4" bolts and
locknuts. Tighten snug only; these bolts act as pivot points. See Figure 2.2.
