As shown in figure 2, Figure 3 – Wheatheart X13 Right Angle Drive Kit User Manual
Page 3
3
12. If necessary, adjust bottom drive chain to about 1/4” (0.64 cm) deflection by
loosening the 4 bolts on the lower bearing, then retighten. (Oil the drive chain
as required.)
13. Replace the sprocket guard.

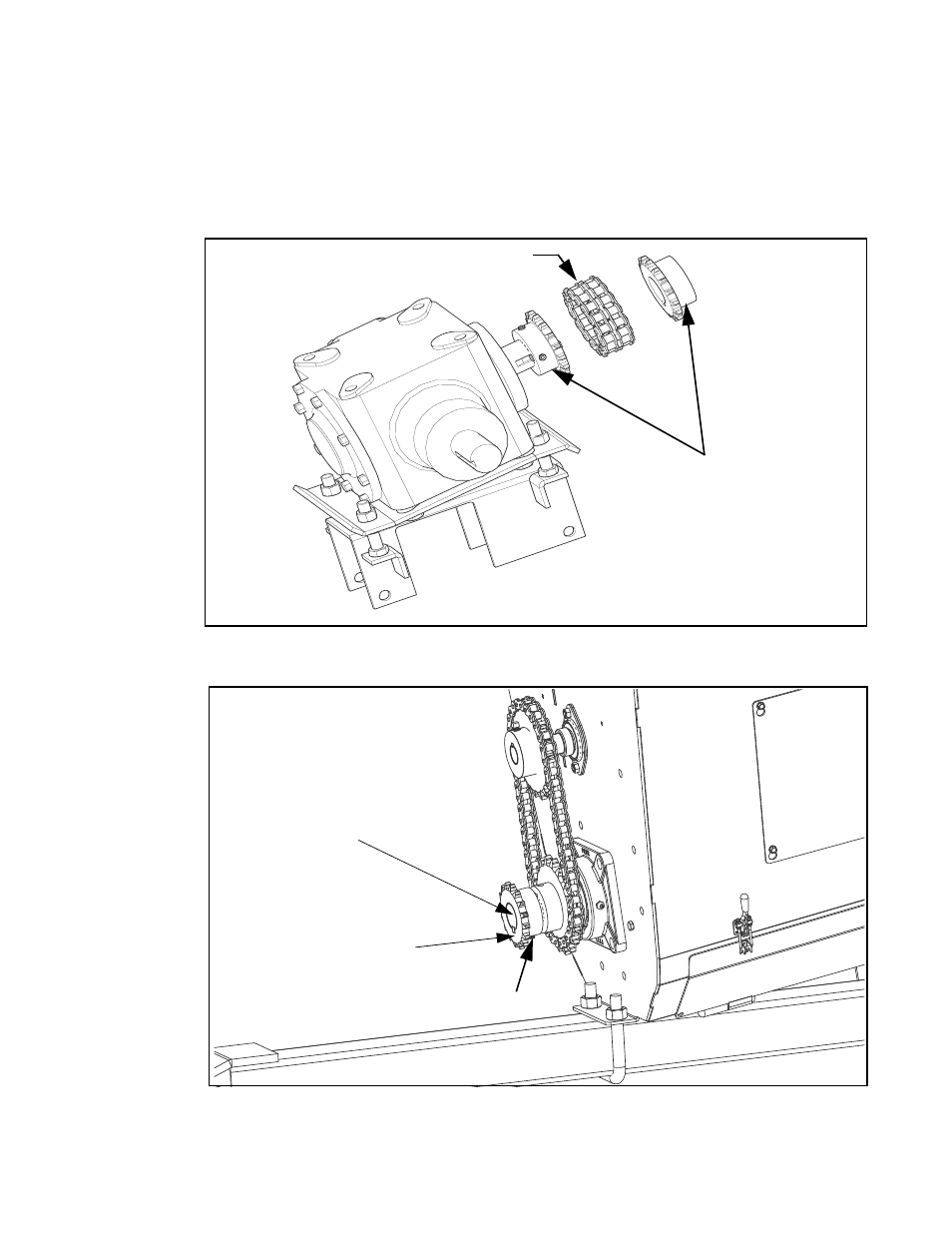

Figure 2 Removing Coupler Chain from Sprockets
Figure 3 Installing Coupler Sprocket on Flight Shaft
COUPLER CHAIN [17254]
COUPLER SPROCKETS [17608]
FLIGHT
SHAFT
COUPLER
SPROCKET [17608]
SET SCREWS
