2
FSI-XX-10-L Models
Batteries and Replacement
The FSI-XX-10-L series are powered by
AA batteries (4). The batteries are held
within a removable battery pack just
beneath the battery door. See Figure 1.
To replace the batteries:
1. Remove the battery door with a
Phillips screwdriver.
2. Tilt battery pack up from the
bottom of handle and remove the
batteries from the battery pack.
Do not put unnecessary strain on
the wire leads and never pick up
the scope by the leads.
3. Un-clip the connector if desired.
4. Replace the batteries, reattach the
connector and replace in reverse
order. Please make sure not to pinch any wires when closing the cover.
Lighting
The FSI-XX-10-L series are equipped with service free integrated solid-state LED lamps.
Simply, these lamps never need servicing for the life of the scope.
NOTE: Please refer to “ General Operation, Checks, and Care of all Scopes” section within this
manual for trouble free service.
FSI-XX-6-H Models
Batteries and Replacement
The FSI-XX-6-H models are powered by a
DL-223 6V Lithium battery pack
(P/N 7831-0958) located just beneath the battery
door. See Figure 2.
To replace the batteries:
1. Remove the battery door with a Phillips
screwdriver.
2. Tilt the battery pack up from the base
of the handle and pull the battery pack
out.
3. Replace with a new battery pack in
reverse order.

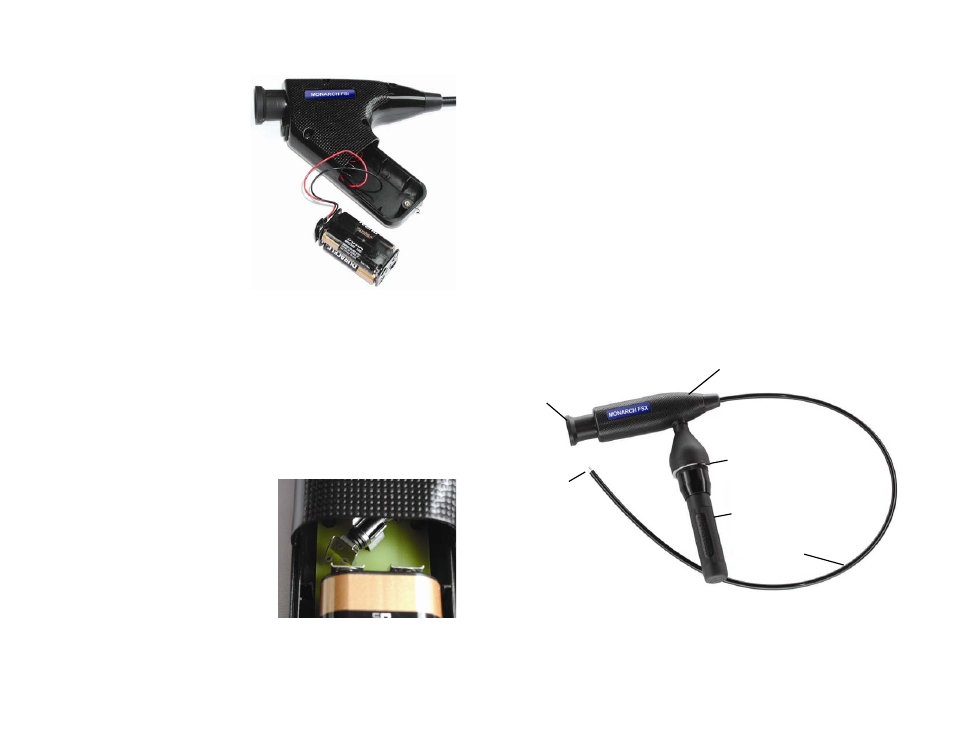

Figure 1 FSI-XX-10-L Battery Pack
Figure 2 FSI-XX-6-H Battery Pack
and Halogen Lamp
3
Lighting
The FSI-XX-6-H models are equipped with a replaceable halogen lamp located just beneath the
battery door. See Figure 2.
The halogen lamp life is 15 - 20 hrs.
Halogen Lamp Replacement
In the event the lamp needs replacement:
1. Remove the battery door with a Phillips screwdriver and set aside.
2. Remove the battery pack and set aside.
3. Using a small screwdriver, needle-nose pliers, or similar, tilt the lamp up out of the
base clip and remove.
4. Replace with Monarch lamp P/N 7831-0957. Lay lamp body in clip and press down.
5. Replace the battery pack and test for proper illumination by activating switch.
6. Replace the battery door.
NOTE: Never touch the lamp body just after operation. The halogen lamp operates at a high
temperature and needs time to cool down.
FSX Models
Main Features
Lighting and Attachment
The FSX models use an optional detachable flashlight for their illumination source.
Because the FSX scopes are rugged instruments but contain precision optical components,
never use the flashlight solely as a handle. Always keep hold of the FSX housing when in use.
Housing
Eyepiece
Distal
Tip
Condenser
Shaft
Optional Flashlight
(P/N 7831-0951)
