Back Panel Description

Xboard

23

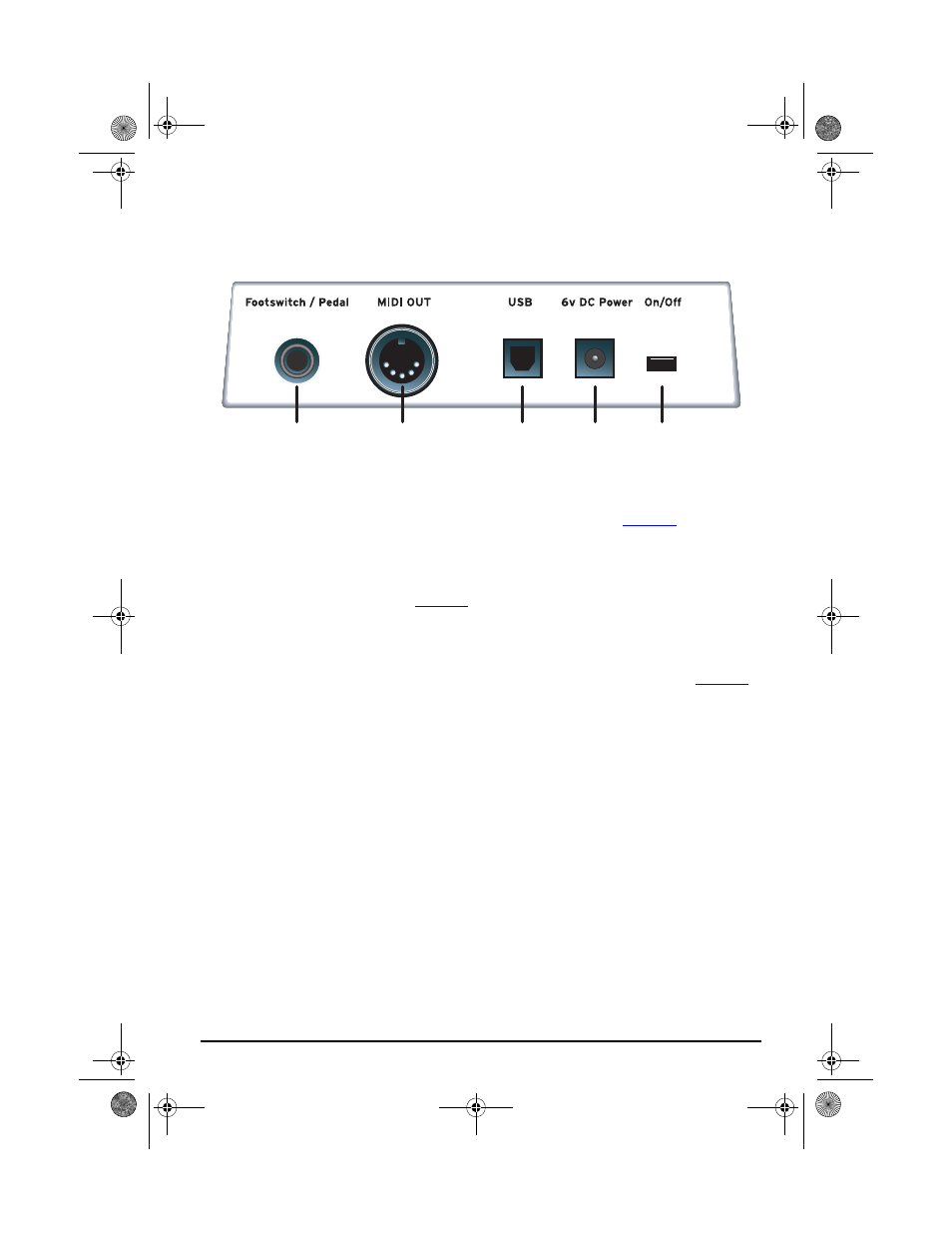

BACK PANEL DESCRIPTION

1. Footswitch / Footpedal Input

This jack accepts either a footswitch or continuously variable footpedal. The
default setting is for a footswitch. To use a footpedal, see

page 40

.

Footswitch - Accepts either a normally-open or normally-closed momentary
footswitch. The Xboard auto-senses the polarity on power-up.
Footpedal - Accepts most standard footpedal types with a stereo plug. See the
wiring diagram shown on

page 65

for pedal wiring specifications.

2. MIDI Output

Outputs note and controller MIDI data from the Xboard. This jack can also be
used as a MIDI interface from a computer software application. See

page 39

.

Use a standard MIDI cable to connect the Xboard to the MIDI input jack of
other MIDI devices.

3. USB

Connects Xboard to your computer via the supplied USB cable. The USB
connection provides two-way communication when connected to the
computer and also supplies power to the Xboard. Always connect to the USB
jack on the computer itself
and NOT to a low-power USB connection that
may be present on your computer keyboard or other USB peripheral.

4. 6 Volt DC Power

This jack allows the Xboard to be powered from a standard 6VDC Adapter
(positive tip) when not connected to the computer via USB.

5. On/Off Switch

This switch turns the Xboard on or off whether powered via USB, AC Adapter,
or batteries.

1

2

3

4

5
