22
Vermont Castings Intrepid Multi-Fuel
2000970
1 2
3
4
5
6
7
8
9
10
12
13
20 21
22
23
24
9
25
26
29 30
28
27
25
50
51
52
53
54
16
11
12
9
55
0970
Intrepid Multi-fuel
1695
8/02
35
49 45
45
46
56
56
14
57
0970
CFM Corporation reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time,
without notice.

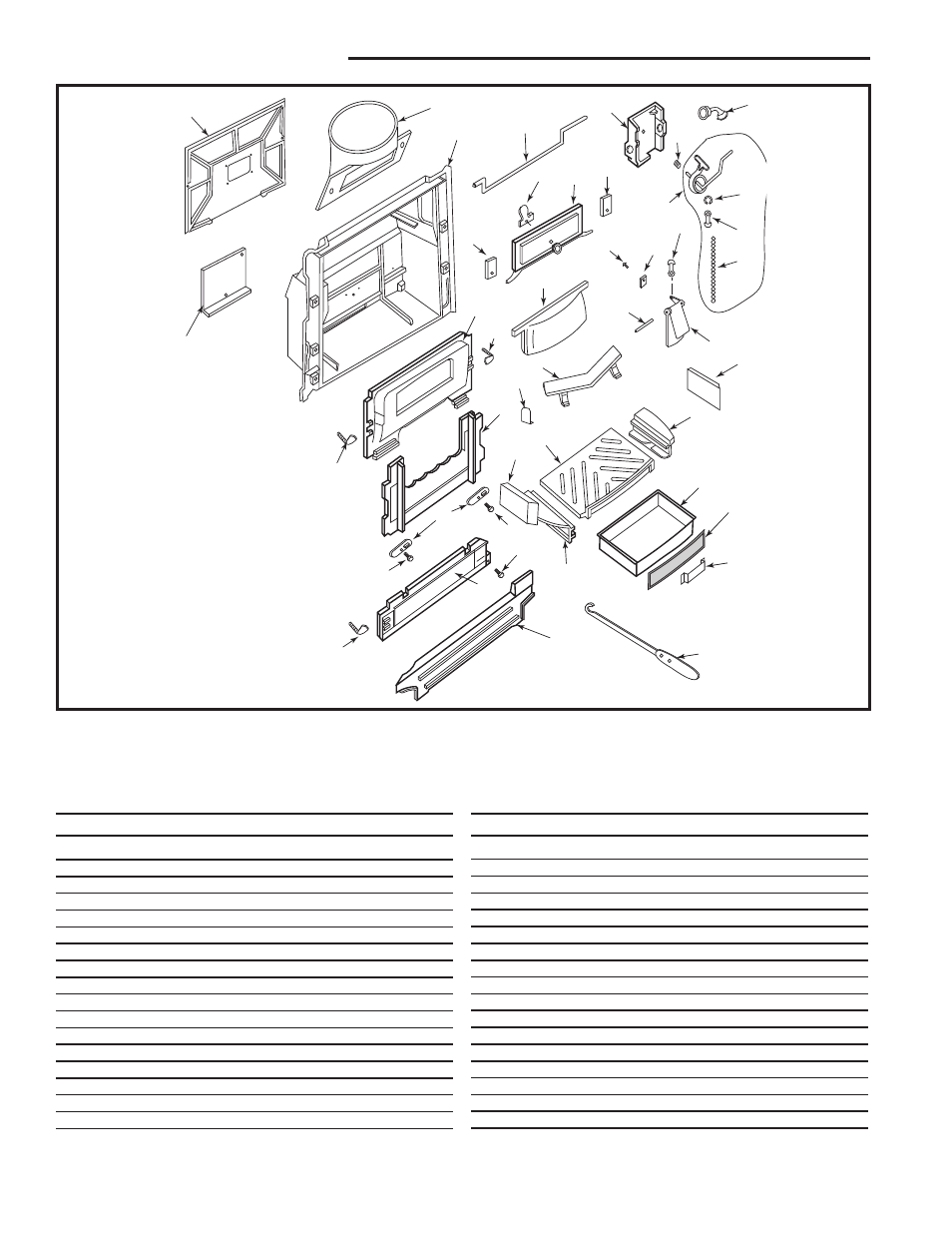

Intrepid Multi-Fuel Heater
Model 1695CE
Item Description Part Number Item Description Part Number
1. Rear Cover (Sec. Air Cover) 1306762
2. Flue Collar 1306561
3. Back Panel 1308662
4. Damper Rod 1602523
5. Damper D-plate (Damper Clip) 1306725
6. Damper 1306701
7. Damper Housing 1306702
8. Throat Hood 30001649
9. Weld Screw 1201583
10. Upper Firebrick 1306703
11. Fireback Clamp 1306724
12. 3/8” - 16 x 1¹⁄₂” Hex Bolt 1201456
13. Lower Fireback 1306704
16. Rear Air Tube 1308658
20. Thermostat Cover 1306711
21. Damper Handle Stub 30002720
22. Friction Spring 1201846
23. Thermostat Assy 5005506
24. Thermostat Clip 1601408
25. Ball Chain Fitting (2) 1201972
26. Ball Chain 1201960
Jump Ring 1201985
27. Primary Air Flap 1306710
28. Air Flap Pin 1601551
29. Clip 1601396
30. #10-24 x 3/8” Pan Head Bolt 1200983
35. Cover Plate 1608955
45. Side Brick 1608953
46. Brick Clip 1608956
47. Flue Deflector 1401158
49. Front Grate 1308659
50. Left Insert 1308661
51. Grate 1308652
52. Right Insert 1308660
