10
Vermont Castings Intrepid Multi-Fuel
2000970
Connecting Flue Pipe - Clearances
Single wall connecting fluepipes can reach extremely
high temperatures; therefore, clearances from the con-
necting fluepipe (chimney connector) must comply with
the requirements of Part J of Building Regulations 2000
(Combustion Appliances and Fuel Storage Systems).
This can be achieved by following the recommenda-
tions of Approved Document ‘J’. These are as shown in
Figure 11.
ST486a
Defiant EU
Clearance
Diagrams
10/06
A
B
ST486a

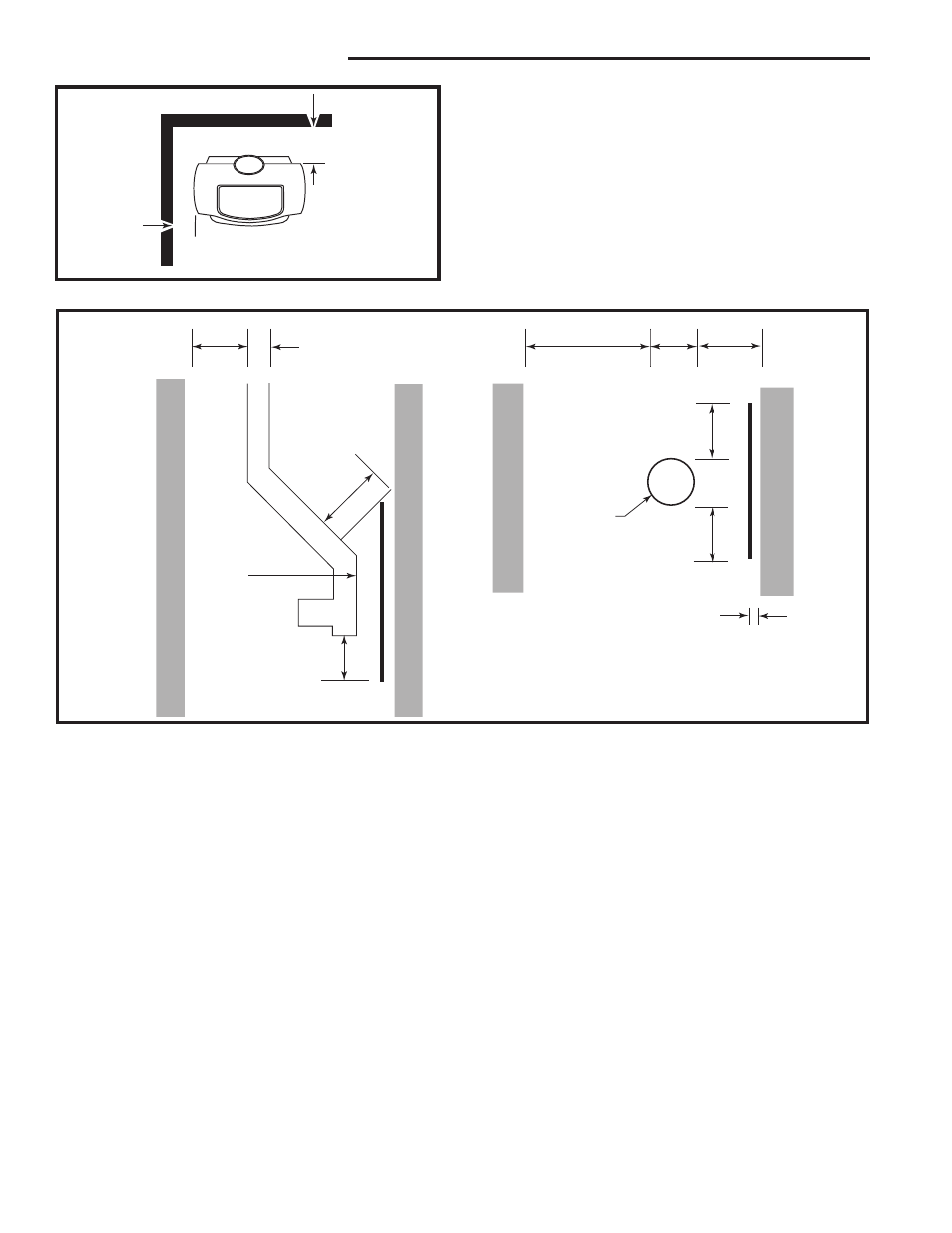

Fig. 10 Minimum clearances.
�����
�������������������
�����
D
at least
3 x D
Elevation
Without
Shield
Elevation
With Shield
at least
3 x D
at least
1.5 x D
at least
1.5 x D
Plan Without
Shield
Plan With
Shield
Air space of at least 12 mm
between noncombustible shield
and combustible material
Fluepipe
at least
1.5 x D
at least
1.5 x D
at least 3 x D D
at least
1.5 x D
ST911
Fig. 11 Connecting fluepipe clearances.
