Spring-Set Motor Brakes
116 Wichita Clutch 800-964-3262 P-1100-WC 1/12

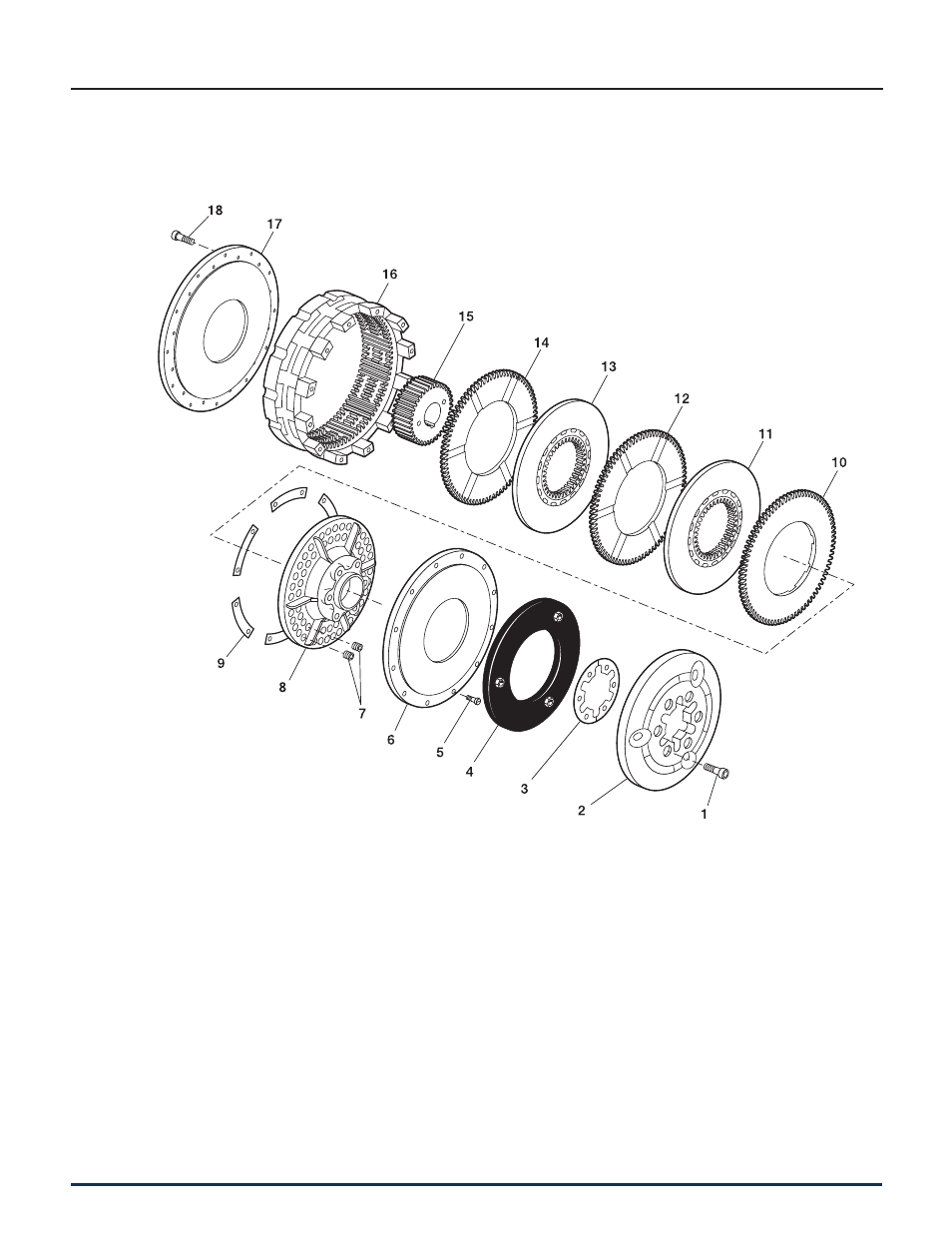

Component Parts
1. Socket Head Capscrews
2. Air Tube Holding Plate
3. I.D. Shims
4. Airtube
5. Socket Head Capscrews
6. Airtube Spring Plate
7. Springs
8. Spring Release Plate
9. O. D. Shims
10. Grooved Friction Disc
(grooved on one side)
11. Center Plate
12. Grooved Friction Disc
(grooved on both sides)
13. Center Plate
14. Grooved Friction Disc
(grooved on one side)
15. Hub
16. Ring
17. Backplate
18. Socket Head Capscrews
