Wichita Clutch SV - Standard Ventilated Clutch - Manual (Page 9)

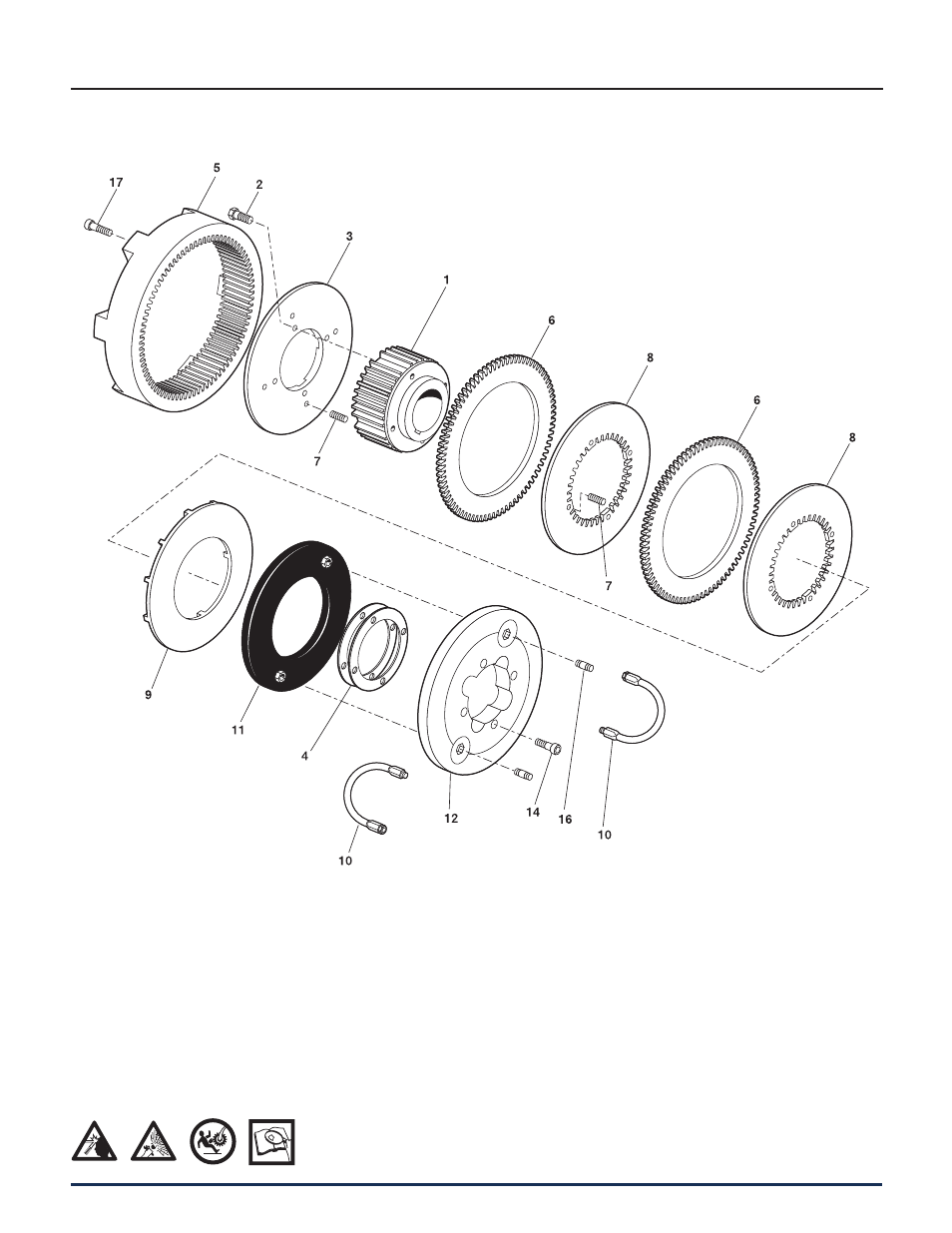

Standard Vent Clutches
130 Wichita Clutch 800-964-3262 P-1100-WC 1/12
1. Hub
2. Hex Head Bolt
3. Backplate
4. Shim
5. Driving Ring
6. Friction Disc
7. Release Spring
8. Center Plate
9. Pressure Plate
10. Hose Assembly
11. Air Tube
12. Air Tube Holding Plate
14. Socket Head Capscrew
16. Elbow
17. Bolt (Furnished by cus tom er)
Coupling and Grinding Mill Clutch Selection
Component Parts
