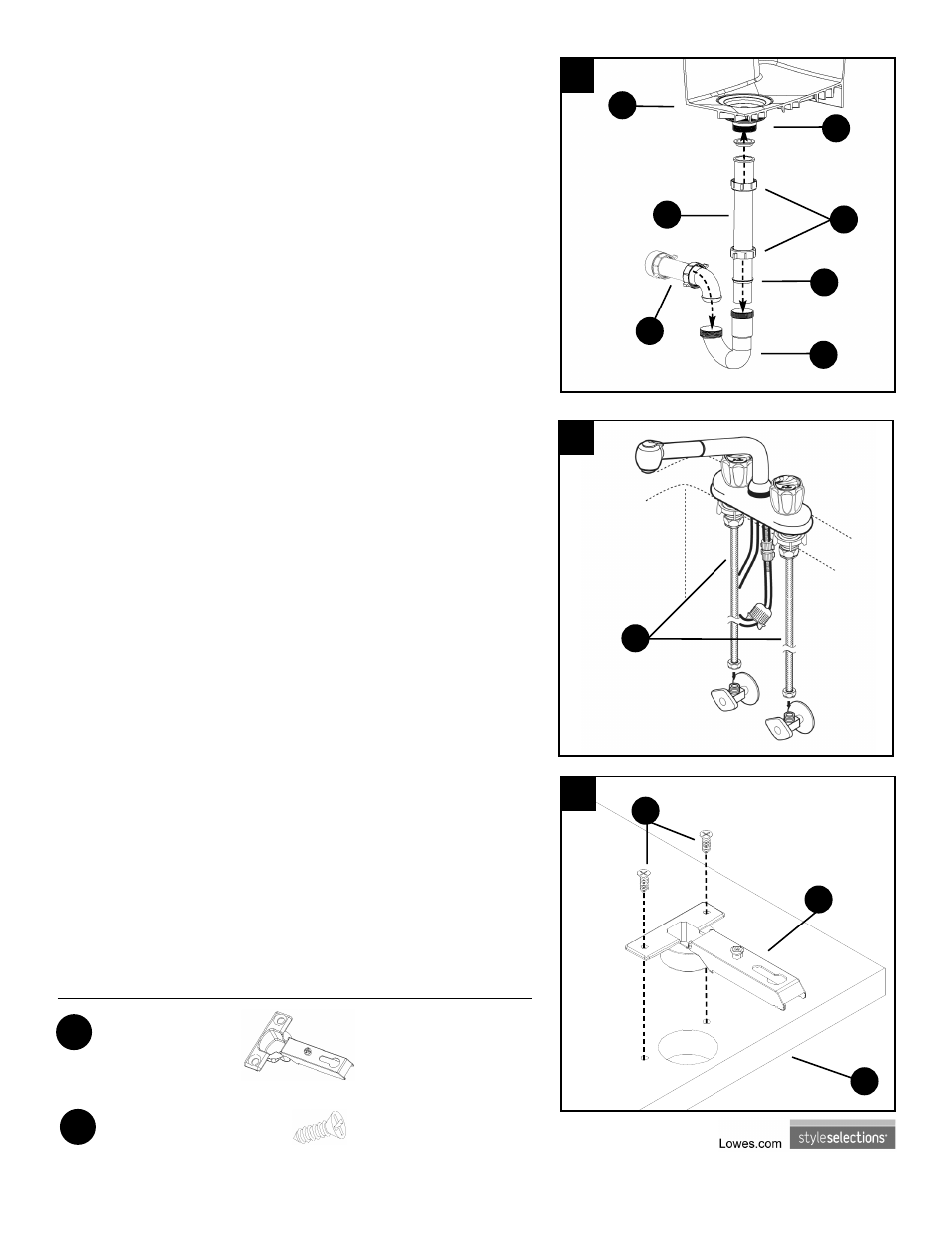

Fasten hinges (CC) to doors (F) with hinge screws (DD).
NOTE: Do not overtighten hinge screws (DD).
11.
Hardware Used
x 4 Hinge CC
x 8 Hinge Screw DD
F
DD
CC
Connect the water supply line (M) by threading the
small metal connector nut onto the water supply
valve outlet and tighten securely.
Repeat for the second supply line (M).
NOTE: Check for leaks. If a leak appears, loosen
nuts completely and check washer alignment. If a
leak persists, carefully tighten nuts with a wrench.
NOTE: DO NOT OVERTIGHTEN.
10.
10
M
11
Loosely connect wall tube (R) and tailpiece (N) to
p-trap (Q).
Insert wall tube (R) into waste drain and tighten
using existing hardware.
Using tailpiece washer from strainer kit (B), place it
on top of tailpiece (N). Fasten tailpiece (N) to strainer
kit (B) using nut (O).
NOTE: DO NOT OVERTIGHTEN.
9. 9
R
Q
A
N
O
P
