D ISASSEMBLY —
1. Unscrew and remove takedown screw on left side of
receiver (see Figure 4).
2. Separate the gun into two halves by pulling the butt
stock downward to the rear (see Figure 5).
3. The bolt slide may now be removed by sliding rearward
out of receiver (see Figure 6). Use care to prevent the cam
pin from dropping free of the bolt.
4. Bolt and bolt slide may now be separated (see Figure 7).
9

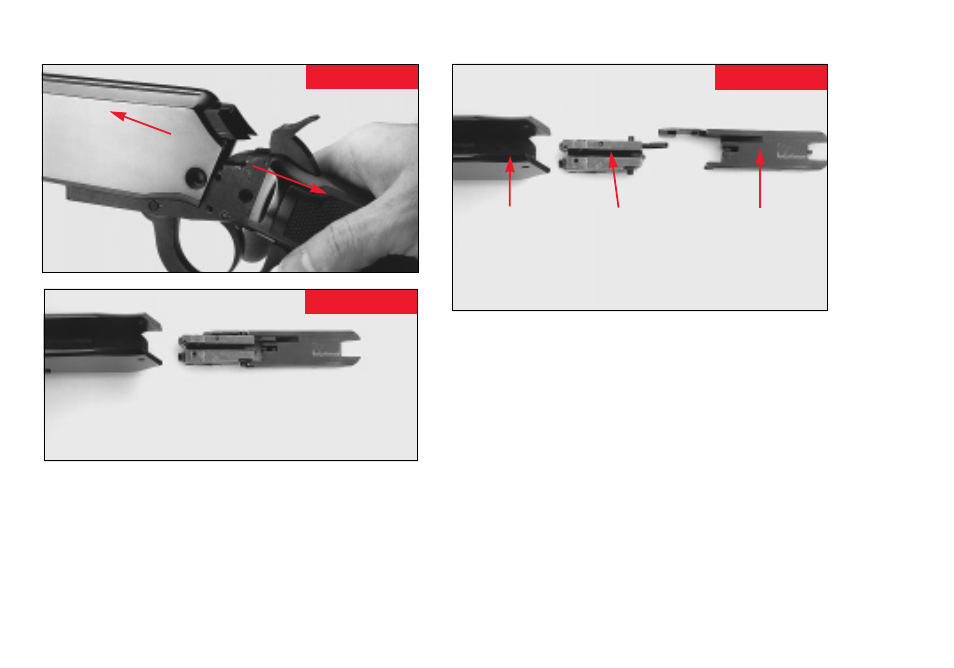

Remove the bolt slide
and breech bolt together
FIGURE 6
Breech bolt Bolt slide Receiver
FIGURE 7 FIGURE 5
Separate the two
halves of the rifle.
