8
buttstock is rearward or rear; the trigger is downward or
underneath; the sight is upward or on top. For general
parts terminology, refer to Figure 1-A.
The Winchester Model 9410 is also shown in some detail,
focussing on the hammer and lever mechanisms
(Figure 1-B through 1-C). You must be familiar with these
part names in order to follow instructions contained in
this book. Figure 1-D covers the general features and
benefits of the Model 9410 design. (Model 9410
Traditional shown above, other models will differ slightly.)
Throughout this manual the “action” refers to the
mechanism of this shotgun which loads and secures the
shell in the chamber.
IMPORTANT: REFER TO FIGURE 1-A FOR
GENERAL PART DESCRIPTIONS REGARDING
YOUR NEW SHOTGUN. YOU MUST BECOME
FAMILIAR WITH ALL PART NAMES LISTED
BEFORE PROCEEDING WITH THE REST OF
THE INSTRUCTIONS IN THIS MANUAL.
S ERIAL N UMBER
The serial number is located on the bottom of the receiver,
at the front, close to where it contacts the rear of the
forearm. Record the serial number in this booklet for
future reference.

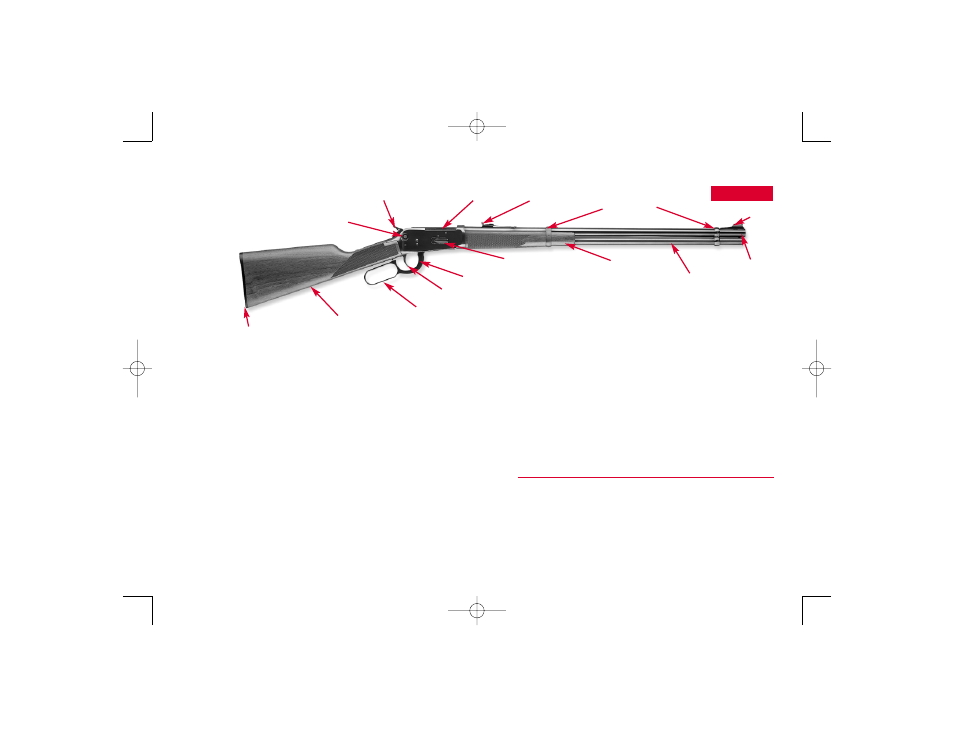

Manual hammer stop
Loading Port
Finger lever
Trigger
Forearm
Muzzle
Ejection Port Rebounding hammer
Barrel bands
Trigger
Guard
Rear Sight
Front Sight
Magazine Tube
Butt Plate
Buttstock
FIGURE 1A
