6
buttstock is rearward or rear; the trigger is downward or
underneath; the sight is upward or on top. For general
parts terminology, refer to Figure 1A.
The Winchester Model 94 is also shown in some detail,
focussing on the hammer and lever mechanisms (See
Figure 1B through 1C). You must be familiar with these
part names in order to follow instructions contained in
this book. Figure 1D covers the general features and
benefits of the Model 94 design.
Throughout this manual the “action” refers to the
mechanism of this rifle which loads and secures the
cartridge in the chamber.
IMPORTANT: REFER TO FIGURE 1A FOR
GENERAL PART DESCRIPTIONS REGARDING
YOUR NEW RIFLE. YOU MUST BECOME
FAMILIAR WITH ALL PART NAMES LISTED
BEFORE PROCEEDING WITH THE REST OF
THE INSTRUCTIONS IN THIS MANUAL.
S
ERIAL
N
UMBER
The serial number is located on the bottom of the
receiver, generally on the left side.

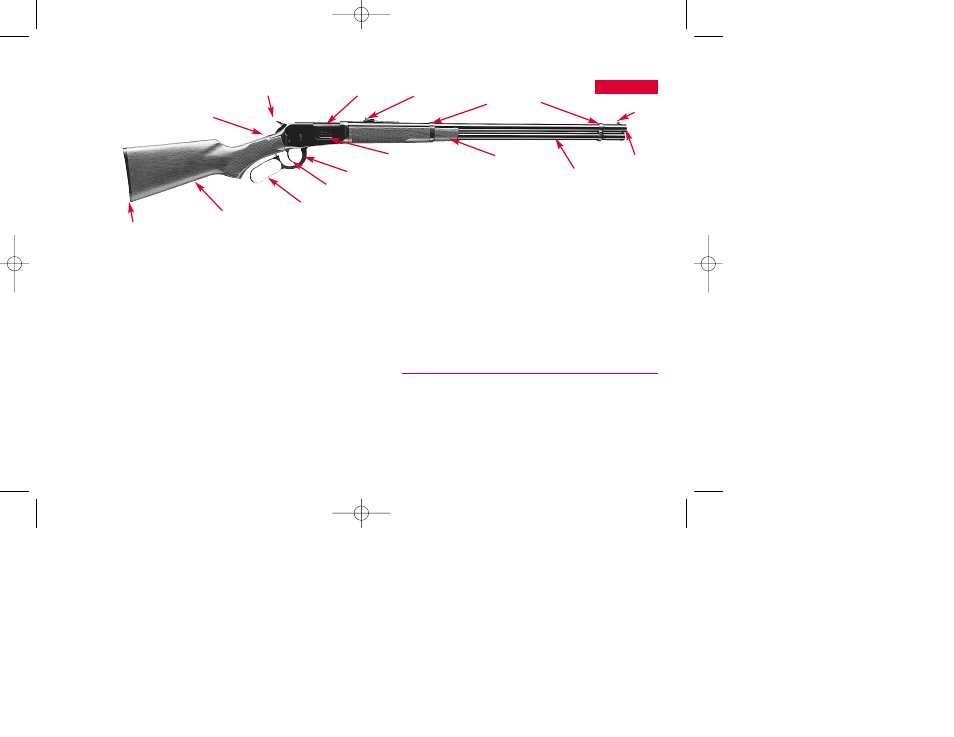

FIGURE 1A
Top-tang safety
Loading port
Finger lever
Trigger
Forearm
Muzzle
Ejection port
Rebounding hammer
Barrel bands
Trigger
guard
Rear sight
Front sight
Magazine tube
Butt plate
Buttstock
