VICI 340 Dynacalibrator User Manual
Page 34
30
Advanced Theory of Operation
SUPPLY
INLET
DILUTION
STREAM
CARRIER
STREAM
FILTER
F1
TEE
MAIN PUMP
P1
ACCUMULATOR
AC1
BACK PRESSURE
REGULATOR
BPR1
FILTER
F2
CARRIER
OUTLET
CARRIER
INLET
BYPASS
LOOP
SUPPLY
INLET
DILUTION
STREAM
CARRIER
STREAM
FILTER
F2
TEE
MAIN PUMP
P1
ACCUMULATOR
AC1
BACK PRESSURE
REGULATOR
BPR1
FILTER
F1
DILUTION
OUTLET
DILUTION
INLET
BYPASS
LOOP

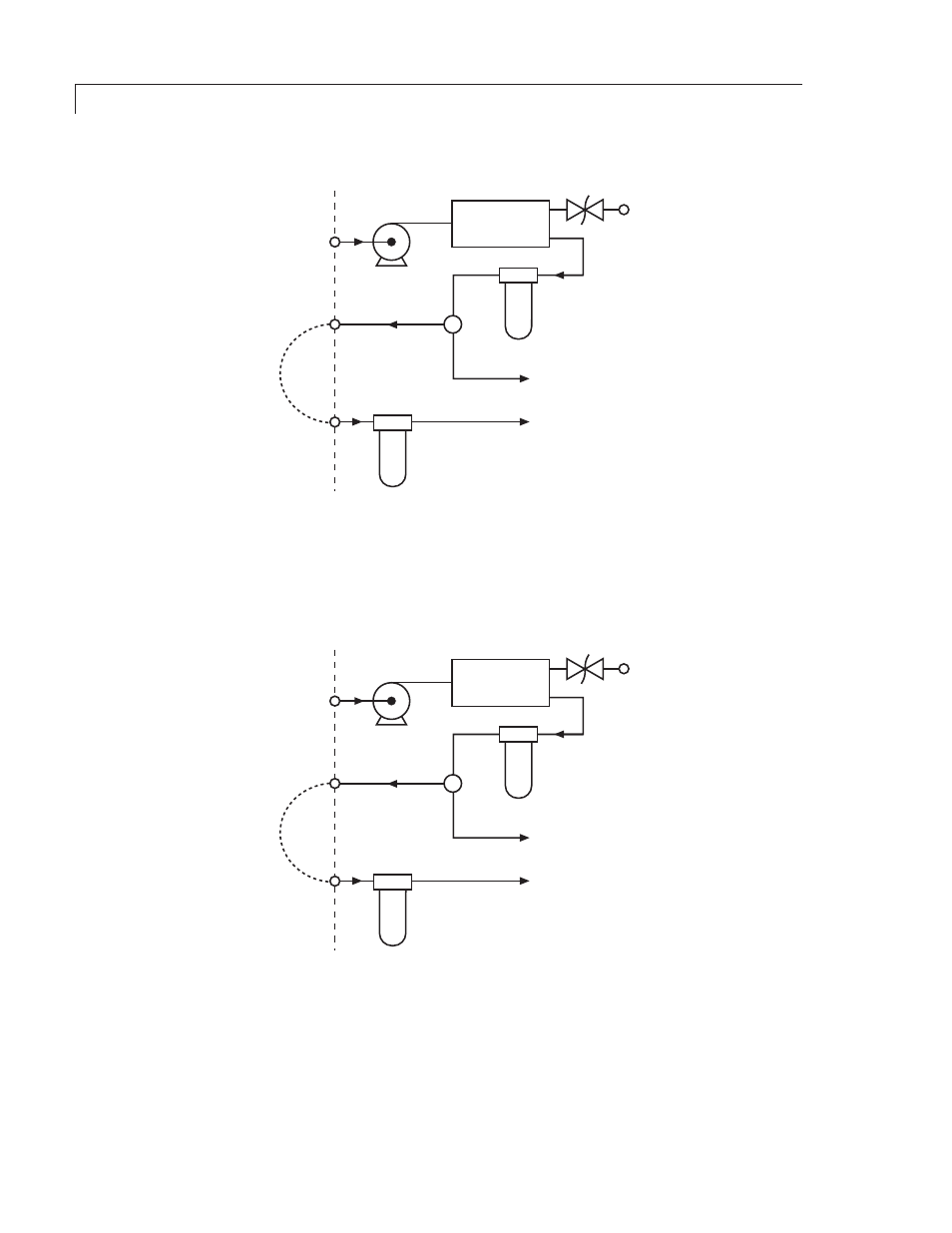

Figure 8: Diagram of Configuration 3
Figure 9: Diagram of Configuration 4
