VICI TCD2 - Manual (Page 18)

14
Installation
CHART A B A-B
OUTPUTS
DETECTOR
SERIAL NO.
Valco Instruments Co. Inc.
MODEL NO.
Valco Instruments Co. Inc.
220V
ATTENUATED STRIP
CHART OUTPUT
CABLES FOR A, B,
and A–B
RED (+10V)
BLACK (–)
WHITE (+1V)
RED (+10V)
BLACK (–)
WHITE (+1V)
INLET
A
INLET
B
CHANNEL
A
CHANNEL
B
MODEL TCD2-C
115/230 175VA MAX.
T2.0A
250V
MAINS

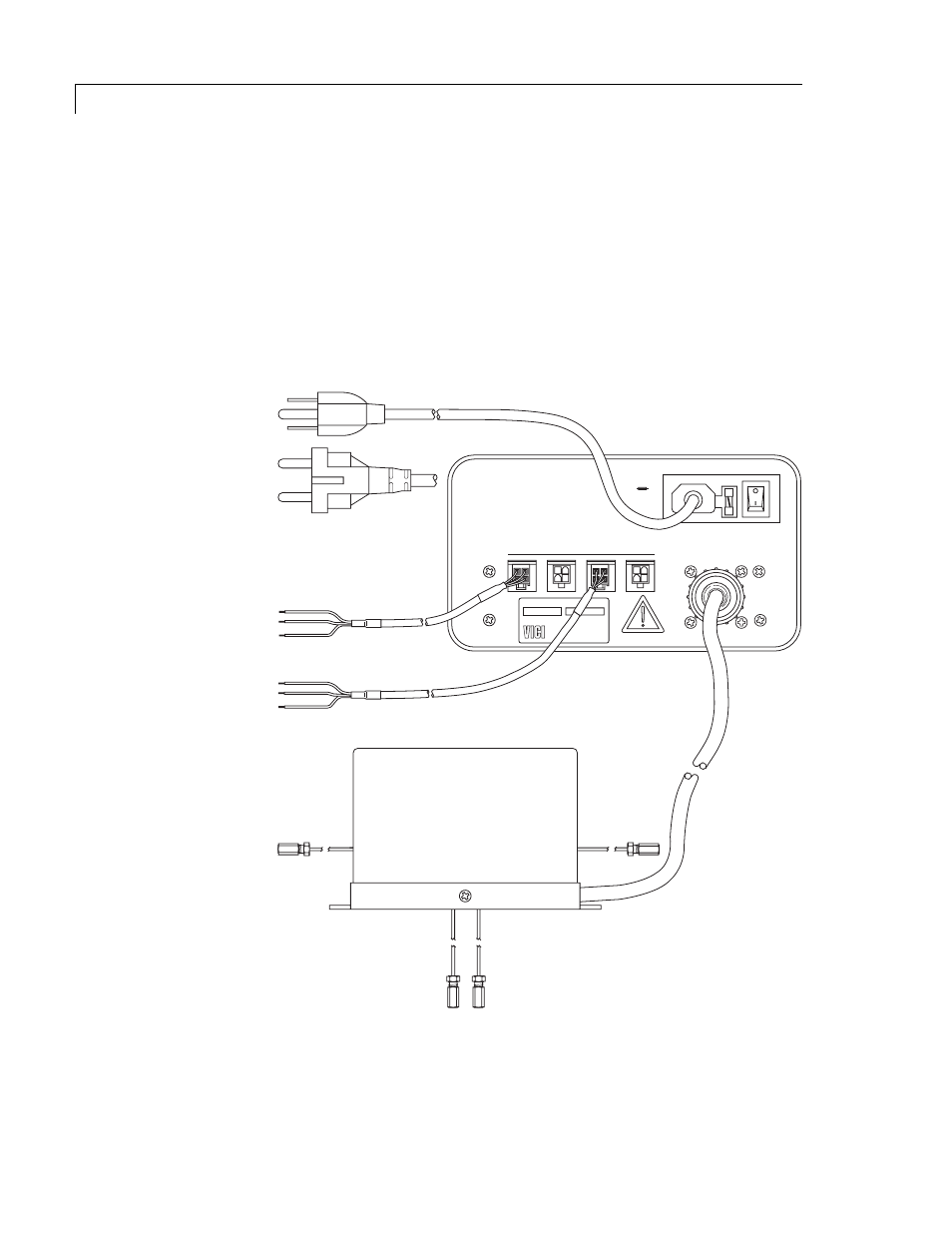

Figure 9: Electrical connections
2. Connect the data output(s). The A / B / A - B outputs are used with an
integrator or PC-based data acquisition system; the chart output is for a
strip chart recorder. Polarities and full scale range are indicated in the
figure below. (Set the recorder/DAQ for the same voltage scale.)
3. Connect the main power cord.
