Pulser Module Installation
1. Mount the pulser module as shown above in Figure 5.
2. Power to the pulser module is provided through the pulser power supply
(PN I-23569-1). Plug the 4-pin connector into the pulser module.

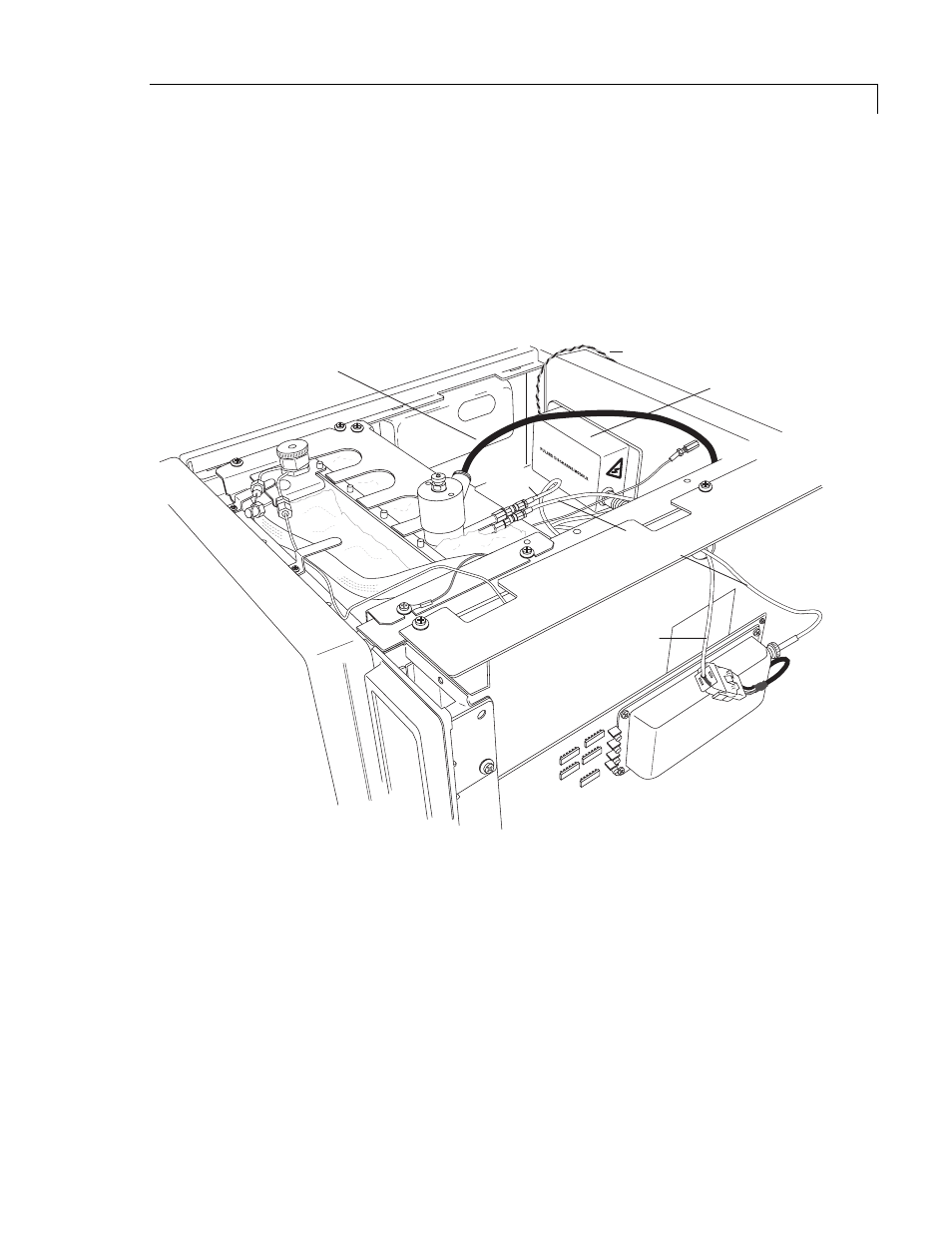

Figure 5: Mounting the pulser module
BIAS
CABLE
ELECTROMETER
CABLE
BIAS
CABLE
PULSER MODULE
TO PULSER POWER SUPPLY HIGH
VOLTAGE
CABLE
Installation
